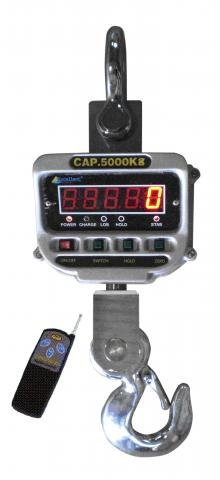

| FEATURES : |
- Micro die casting aluminum- magnesium alloy housing with high strength
- Reliable and cost efficient
- Convenient 360˚ swivel hook
- Hold, Zero and division selection function
- High capacity rechargeable battery (6v/10Ah), 150hours of standby time per full charge
- Super bright 5 digit red LED display with 30 mm letter height
- Remote control
| SPECIFICATION : |
| MODEL | CAPACITY | DIVISION |
| OCS – XZ – AAE – 1t | 1t | 0.5kg |
| OCS – XZ – AAE – 2t | 2t | 1kg |
| OCS – XZ – AAE – 3t | 3t | 1kg |
| OCS – XZ – AAE – 5t | 5t | 2kg |
| OCS – XZ – AAE – 10t | 10t | 5kg |
| OCS – XZ – AAE – 15t | 15t | 10kg |
Outline Dimension : (mm)
| MODEL | A | B | C | D | E | F | G | G.W
(kg) |
Packing Size
(W x L x H) mm |
| AAE – 1t | 260 | 195 | 47 | 34 | 530 | 76 | 200 | 15 | 355 x 665 x 325 |
| AAE – 2t | 260 | 195 | 47 | 34 | 530 | 76 | 200 | 15 | 355 x 665 x 325 |
| AAE – 3t | 260 | 195 | 50 | 40 | 547 | 76 | 200 | 16 | 355 x 665 x 325 |
| AAE – 5t | 260 | 195 | 60 | 48 | 634 | 80 | 210 | 26 | 355 x 665 x 325 |
| AAE – 10t | 260 | 205 | 70 | 52 | 735 | 90 | 220 | 37 | 355 x 765 x 325 |
| AAE – 15t | 260 | 215 | 80 | 60 | 855 | 135 | 230 | 53 | 355 x 765 x 325 |
