TR200 handheld roughness tester is a brand new product of our company. It is always used in the work site, scientific labs and factory metrology rooms. Handheld roughness tester TR200 can test the surface roughness of multiple of machining components.
TR200 handheld roughness tester is a brand new product of our company. It is always used in the work site, scientific labs and factory metrology rooms. Handheld roughness tester TR200 can test the surface roughness of multiple of machining components.
| Model | TR200 |
| Roughness parameters | Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, RSk, Rmr, |
| Assessed profiles | Roughness profile (R) |
| Primary profile (P) | |
| Unit | mm, inch |
| Display resolution | 0.01 ? m |

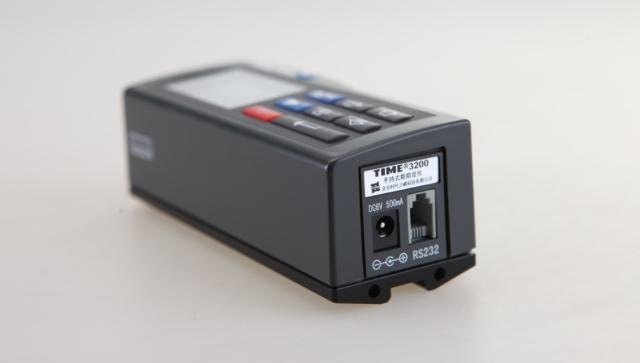

| Data output | RS232 |
| Measuring Range | Ra: 0.025~12.5? m |
| Cutoff length (L) | 0.25mm/0.8mm/2.5mm/Auto |
| Evaluation length | 1~5L (selectable) |
| Tracing length | (1~5)L + 2L (selectable) |
| Digital filter | RC, PC-RC, Gauss, D-P |
| Max. driving length | 17.5mm/0.71inch |
| Min. driving length | 1.3mm/0.051inch |

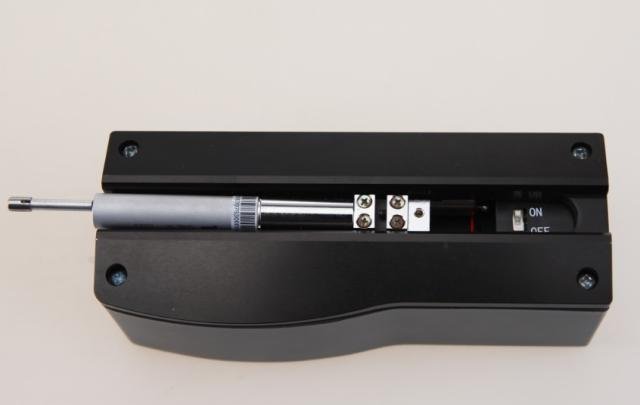

| Pick-up | Standard pickup TS100, inductive, Diamond stylus radius 5?m, angle of stylus 90° |
| Accuracy | ?±10% |
| Repeapility | <6% |
| Power | Li-ion battery rechargeable |
| Dimensions | 141mm×56mm ×48mm |
| Weight | 480g |
