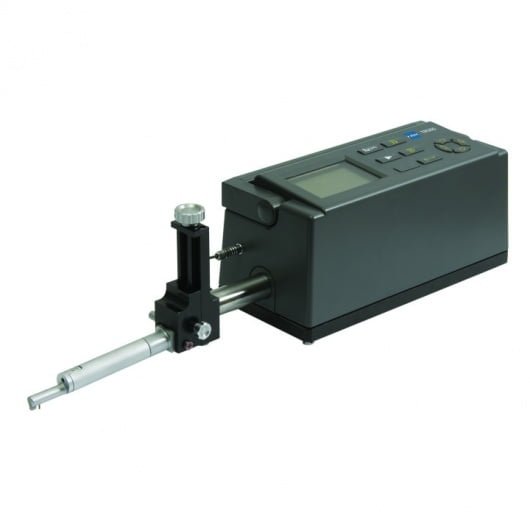

TR300 roughness tester is an instrument that completely meets up with the latest ISO international standard. It is a multi-purpose portable tester to evaluate the surface quality of components. It is equipped with various of parameters that meet up with various of countries’ standard and international standard.
Spesification
| Assessed profile | R (Roughness), W (Waveness), P (Primary profile) |
| Measuring Range | ±400µm, ±25µm |
| Filtering | RC,PCRC,Gauss,D-P,ISO 13565 |
| Parameters | R: Ra,Rp,Rv,Rt,Rz,Rq,Rsk,Rku,Rc,RS,RSm,Rlo,RHSC,Rpc,Rmr(c),RzJIS,R3y,R3z W: Wa,Wp,Wv,Wt,Wz,Wq,Wsk,Wku,Wc,WS,WSm,Wlo,WHSC,Wpc,Wmr(c),WzJIS P: Pa,Pp,Pv,Pt,Pz,Pq,Psk,Pku,Pc,PS,PSm,Plo,PHSC,Ppc,Pmr(c),PzJIS Rk: Rk,Rpk,Rvk,Mr1?Mr2 |
| Cutoff length | |
| 40mm | |
| Analysis graphs | ADC, BAC |
| Evaluation length | 1L-5L |
| Resolution | |
| Accuracy | ±5% |
| Display | LCD |
| Memory | 10 groups of primary data |
| Data output | RS232,USB |
| Power supply | Li battery / AC adapter |
| Dimensions | 409×96×98(mm) |
| Weight |
