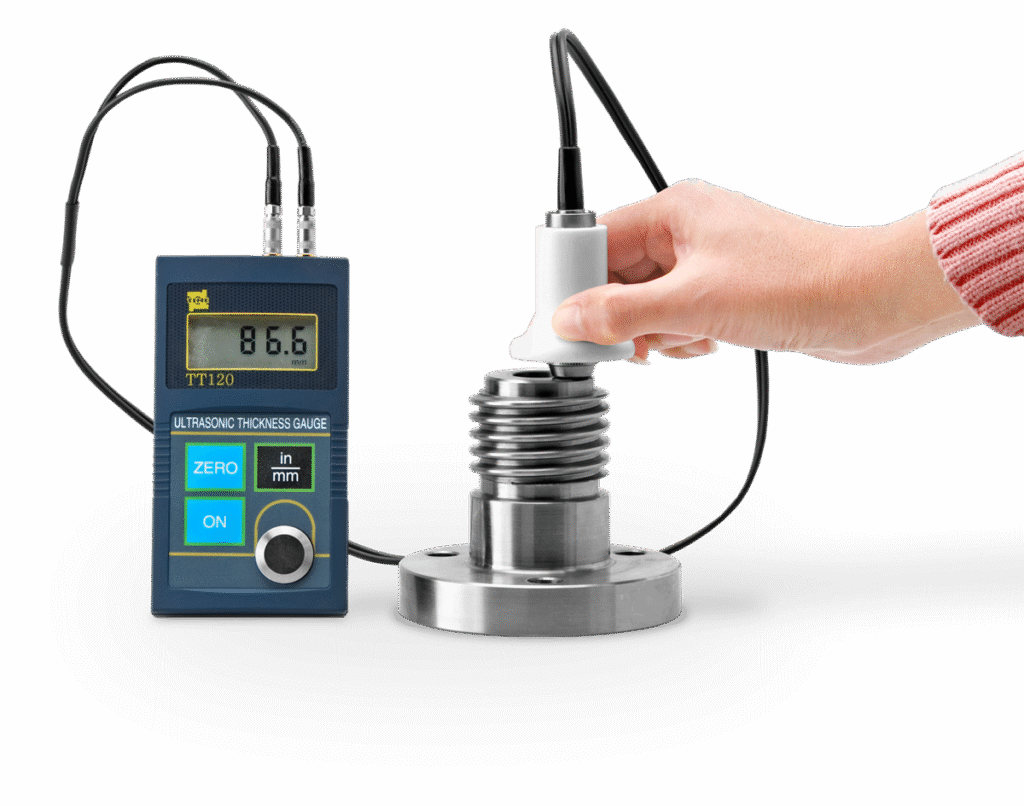

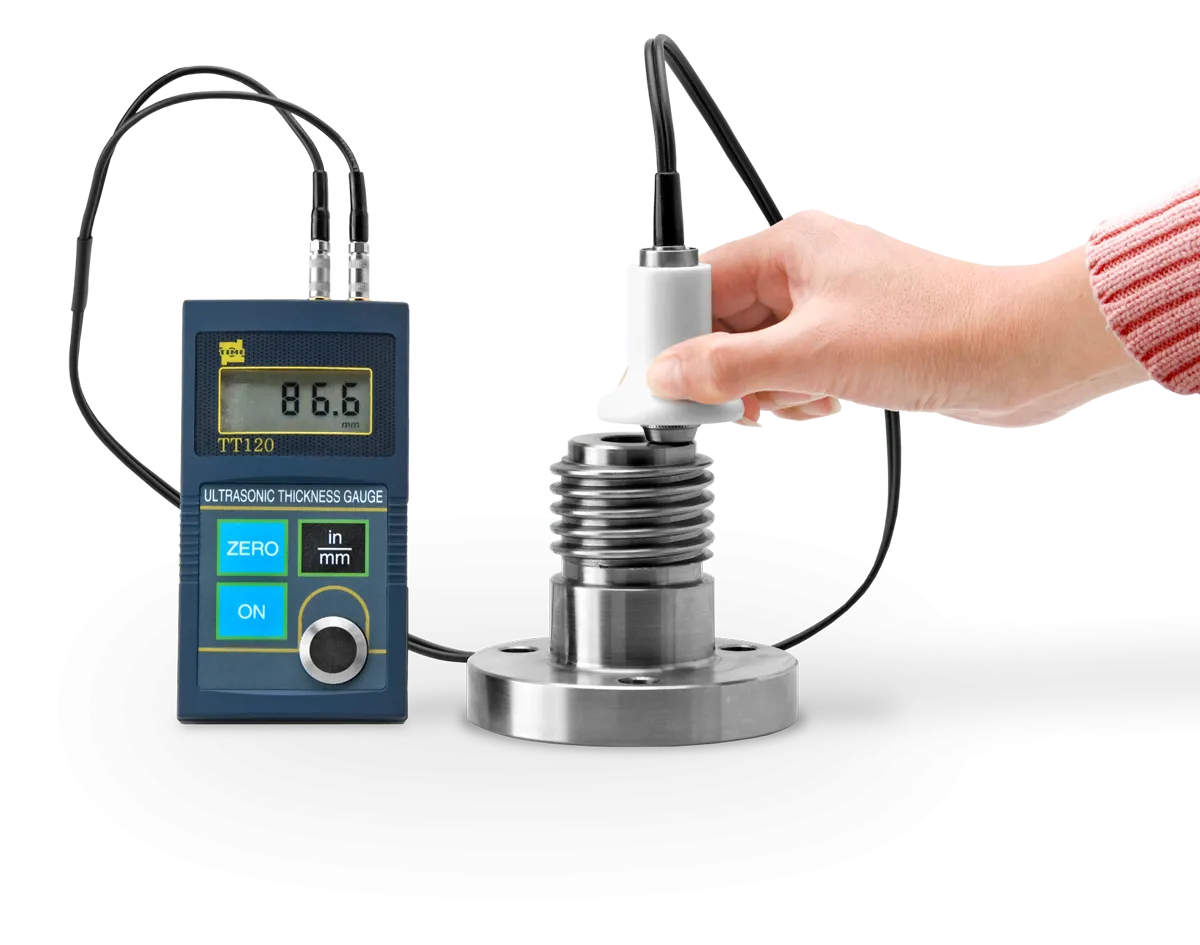

TT120 Ultrasonic Thickness Gauge

TT120 Ultrasonic Thickness Gauge

Alat uji tak merusak (Non Destructive-NDT) untuk pengujian atau mengukur ketebalan semua bahan material seperti pipa, tank, kaca dan lain-lain dengan menggunakan teknologi ultrasonic.

Alat uji tak merusak (Non Destructive-NDT) untuk pengujian atau mengukur ketebalan semua bahan material seperti pipa, tank, kaca dan lain-lain dengan menggunakan teknologi ultrasonic.

Feature

  • Portable size and easy operation
  • Suitable for any metallic and non-metallic materials ultrasonic can go through
  • Self-compensating of nonlinearity function is supplied for correction of pickup nonlineasity
  • 10 measuring values can be recorded for TT100,TT110,TT130;100 measuring values can be recorded for TT140
  • optional 2.5MHz, 5MHz and 7MHz transducers are available
  • Clear 4-Digit LCD display with backlight
  • 5 pre-set sound velocities for repeating applications
  • mm / inch selectable
  • TT100,TT130 and TT140 are suitable for thickness testing of various materials with sound speed range 1000-9999m/s
  • TT110 and TT120 are easy-operation models with only two keys suitable for thickness testing of steel
  • TT120: high-temperature model
  • TT140:with backlight display and the memory reach up to 99



Spesification

TT120
Measuring range 0.75 – 300.00mm (steel)
Measuring range for steel pipes Min.3.0mm thickness ×Φ20 diameter
Diameter of transducer Φ10 (standard) Φ6 (optional) Φ12(optional)
Display resolution 0.1mm
Calibration 4.0mm steel base plate integrated
Tolerance ±(1%H+0.1) mm (H means the thickness of tested piece)
Measuring units mm/inch
Sound velocity range 5900 m/s
Display 4-Digital LCD
Surface temperature -10? to+300?
Battery indicator Low battery voltage indicator
Power supply 2 Pcs. AA batteries 1.5V
Operation time 250 hours
Dimensions 126mm×68mm×23mm
Weight Approx.250 including batteries
