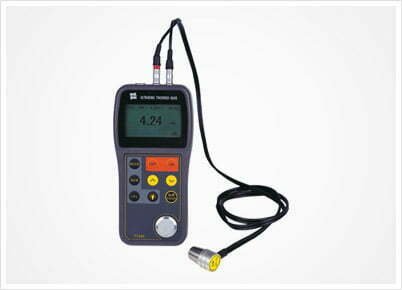

TT300 Ultrasonic Thickness Gauge

Alat uji tak merusak (Non Destructive-NDT) untuk pengujian atau mengukur ketebalan semua bahan material seperti pipa, tank, kaca dan lain-lain dengan menggunakan teknologi ultrasonic.

Feature

  • Advanced handheld ultrasonic thickness gauge
  • Suitable for most metallic and non-metallic materials ultrasonic can go through
  • Auto-calibration of zero point, correction of system error
  • Display current thickness or minimum thickness (menu selectable)
  • Upper-lower limits setting and sound alarm
  • Memory of 500 stored values
  • Two point calibration for high accuracy
  • Display resolution 0.1mm/0.01mm selectable
  • Display in mm or inch
  • Large LCD display with adjustable backlight
  • Low battery indicator
  • TT300: Equipped with RS232 interface for communication with printer and PC with optional software. 5P ?10 transducer for normal purpose and optional TSTU32 transducer for casting iron.
  • TT300A: can be used with high frequency transducer for thickness testing of thin work piece, and auto-calibration is availabel
  • TT310: Economical model with easy operation
  • TT320: high-temperature model with range up to 300 ?
  • TT340: equipped with TSTU32 transducer for casting iron



Spesification

TT300 TT300A TT310 TT320 TT340
Measuring range 1.2mm-225.0mm (steel) 0.75mm-225.0mm (steel) 1.2mm-225.0mm (steel) 1.2mm-225.0mm (steel)
5.0mm-80.0mm (steel high-temp)		 1.2mm-225.0mm (steel)
5.0mm-40.0mm (casting iron)
Tolerance ?1% H +0.1mm ?0.5% H +0.01mm ?1% H +0.1mm (H means the thickness of tested piece)
Lower limits of steel pipes ?20mm x 3.0mm ?20mm x 3.0mm
?15mm x 2.0mm		 ?20mm x 3.0mm
Display resolution 0. 1mm/0.01mm or 0.01/0.001inch 0. 1mmor 0.01inch
Data output RS232 Output for printer or pc —-
Sound velocity 1000m/s~9999m/s
Power supply 2pcs AA batteries (2pcs) 1.5V
Battery life 100 hours without backlight
Sound speed 1000m/s~9999m/s
Unit scales mm/inch
Dimensions 152mm?74mm?35mm
Weight 370g 250g 370g
Surface temperature -10?~ +60? -10?~ +300? -10?~ +60?
Dimensions 152mm?74mm?35mm
