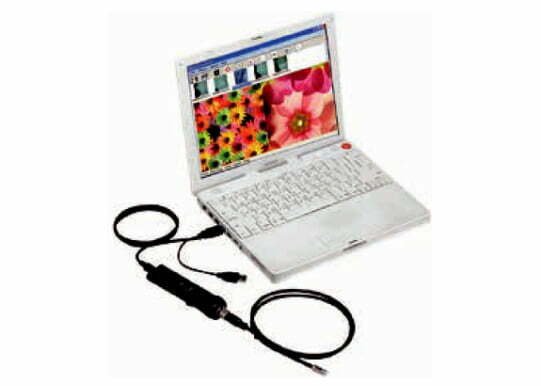

USB Video/Picture Capture Endoscope TBS-1160/1161
Feature
TBS-1160/1161 Features
- Easy connect to computer/Notebook/Laptop, photo shooting & recording ability
- Files can be easily edited.
USB Video/Picture Capture Endoscope TBS-1160/1161
USB Video/Picture Capture Endoscope TBS-1160/1161
TBS-1160/1161 Features
Technical Specifications
|
Model |
TBS-1160 |
TBS-1161 |
|
Image sensor |
CMOS image sensor |
|
|
Resolution |
640h×480v |
|
|
Tip diameter |
5.5mm |
5.5mm/8mm |
|
Insert tube length |
1m~30m |
1m(option:3m) |
|
Frame rate |
20~30fps |
|
|
S/N ratio |
42db |
|
|
Exposure |
Automatic |
|
|
White balance |
Fix |
|
|
Field of view(FOV) |
67° |
|
|
Depth of field(DOF) |
1.5cm~10cm/10cm~∞ |
2-5 cm |
|
Light source |
4 white LED-5.5mm |
4 while LED-5.5mm |
|
6 white LED-8mm |
6 white LED-8mm |
|
|
Power |
DC 5V |
|
|
Display |
Mini USB 2.0 |
|
|
Video out format |
NTSC & PAL |
|
|
Recording/capture |
640×480 JPEG or 640×480 AVI according to PC or notebook |
|
| Standard Delivery | |
| Lens (5.5mm dia.300,000pixel for 1160) | 1 |
| Lens (5.5mm dia.8.0mmdia. optional for 1161) | 1 |
| Cable (1m) | 1 |
| USB cable (50cm) | 1 |
