Technical Specifications
| Specifications | Film Test |
|---|---|
| Test Range | 0.05~50,000 cm3/m2·24h·0.1MPa (standard volume) |
| At least 500,000 cm3/m2·24h·0.1MPa (extended volume) | |
| Number of Specimens | 3 (with independent test results) |
| Vacuum Resolution | 0.1 Pa |
| Vacuum Degree of Test Chamber | <20 Pa |
| Temperature | 5°C ~ 95°C |
| Accuracy | ±0.1°C (standard) |
| Humidity | 0%RH, 2%RH ~ 98.5%RH, 100%RH (humidity generator is optional) |
| Accuracy | ±1%RH |
| Specimen Size | Φ97 mm |
| Test Area | 38.48 cm2 |
| Test Gas | O2, N2 and CO2 (outside of supply scope) |
| Test Pressure | -0.1 MPa ~ +0.1 MPa |
| Gas Supply Pressure | 0.4 MPa ~ 0.6 MPa |
| Port Size | Φ6 mm PU Tubing |
| Instrument Dimension | 760 mm (L) x 575 mm (W) x 450 mm (H) |
| Power Supply | 220VAC 50Hz / 120VAC 60Hz |
| Net Weight | 88 kg |
Configurations
- Standard Configurations

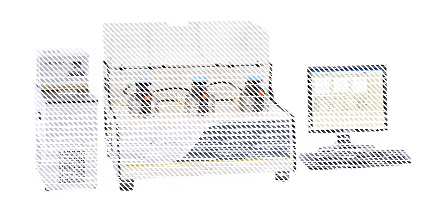

- Instrument, Constant Temperature Control Device, Professional Software, Round Sample Cutter, Vacuum Grease, Fast Quantitative Filter Paper and Vacuum Pump(Imported)
- Optional Parts
- Blades for Sample Cutter, Vacuum Grease, Vacuum Pump Oil, Fast Quantitative Filter Paper and Humidity Generator
- Note
- 1. The gas supply port of the instrument is Φ6 mm PU tubing;
2. Customers will need to prepare for gas supply and distilled water.
