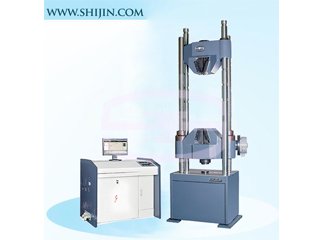

WAW-500L/600L microcomputer controlled electro-hydraulic servo steel strand testing machine

WAW-500L/600L microcomputer controlled electro-hydraulic servo steel strand testing machine

WAW-600L microcomputer controlled electro-hydraulic servo steel strand testing machine is mainly used for tensile test of prestressed concrete strands. Applicable to metallurgy, construction, light industry, aviation, aerospace, materials, universities, research institutes and other fields. The test operation and data processing are in accordance with the requirements of GB/T5224-1995 “Prestressed Concrete Strands”.

WAW-600L microcomputer controlled electro-hydraulic servo steel strand testing machine is mainly used for tensile test of prestressed concrete strands. Applicable to metallurgy, construction, light industry, aviation, aerospace, materials, universities, research institutes and other fields. The test operation and data processing are in accordance with the requirements of GB/T5224-1995 “Prestressed Concrete Strands”.



Spesification

  1. Maximum test force ( kN ) : 500/600
  2. Test force measurement range: 2 % -100 % F N
  3. The test machine level: 1 Ji
  4. Relative error of test force indication: ≤±1%
  5. Displacement measurement resolution ( mm ) : 0.01
  6. Relative error of displacement indication: ≤±1%
  7. Maximum tensile test space ( mm ) : 1200
  8. Piston stroke ( mm ) : 250
  9. Deformation measurement range: 2%-100%F N
  10. Relative error of extensional test value: in accordance with JB/T 6146-2007 Specification of Class 1 extensometer in “Technical Conditions of Extensometer”
  11. Piston moving speed ( mm/min ): 70
  12. Steel strand clamping diameter range ( mm ): Φ9.5-Φ15.2
  13. Maximum size of the main unit ( mm ) : 1200×900×3440
