First, product introduction

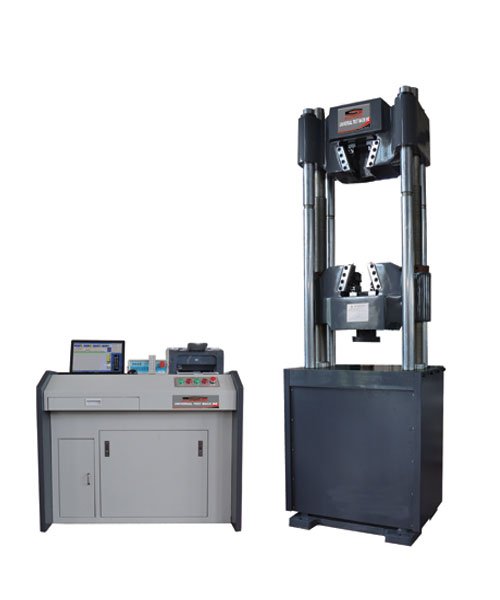

WAW-E series microcomputer controlled electro-hydraulic servo tensile testing machine is mainly used for tensile test of metal and non-metal. Applicable to metallurgy, construction, light industry, aviation, aerospace, materials, universities, research institutes and other fields. The test operation and data processing are in accordance with the requirements of GB/T228-2002 “Metal tensile test method for room temperature materials”. The product has reasonable structure, beautiful appearance, large rigidity of the host, small impact on the ground during the test, and has hardware and software protection functions, which are safe and reliable.
Spesification
| Serial number | Technical indicators | WAW-600E | WAW-1000E | WAW-2000E |
| 1 | Test machine level | Level 0.5 | ||
| 2 | Maximum test force (kN) | 600 | 1000 | 2000 |
| 3 | Test force measurement range (kN) | 6 to 600 | 10 ~ 1000 | 20 ~ 2000 |
| 4 | Test force indication accuracy | Within ± 0.5% of the indicated value | ||
| 5 | Displacement measurement resolution ( mm ) | 0.005 | ||
| 6 | Displacement measurement accuracy | Within ± 0.5% of the indicated value | ||
| 7 | Deformation measurement resolution ( mm ) | 0.001 | ||
| 8 | Maximum stroke of the piston ( mm ) | 580 | 680 | 680 |
| 9 | Stretch jaw maximum spacing ( mm )
(including piston stroke) |
600 | 700 | 700 |
| 10 | Deformation measurement accuracy | Within ± 0.5 % of the indicated value | ||
| 11 | Overload protection | More than 5% of full scale | ||
| 12 | Clamping method | Hydraulic push-pull | ||
| 13 | Round specimen clamping range ( mm ) | Φ 13- φ 40 | Φ 15- φ 60 | Φ 15- φ 70 |
| 14 | Flat specimen clamping range ( mm ) | 0-30 | 0-60 | 0-80 |
| 15 | Number of columns (pieces) | 4 | ||
| 16 | Host Shape Size ( mm ) | 1000×750×3580 | 1000×750×3580 | 1250×900×4000 |
| 17 | Total power ( kW ) | 11 | ||
| 18 | Host weight (kg) | About 3500 | About 6000 | About 9000 |
