Specifications
Standard Ranges¹ : 150, 300, 600, 1500 mm
Resolution : 0.025% F.S. (minimum)
Accuracy : ±0.1% F.S.
Linearity : 0.25% to 0.75%F.S.
Stability : ±0.05% F.S. per year
Temperature Range² : −20°C to +80°C

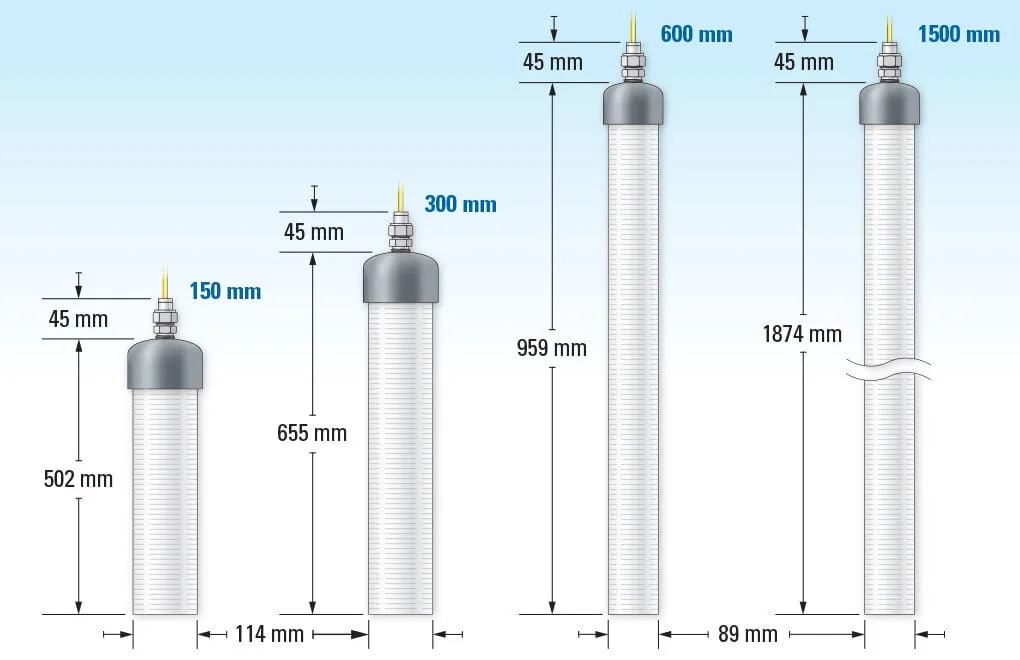

Length × Diameter : 165 × 25 mm (transducer)
¹Other ranges available on request.
²Using antifreeze solution can extend the range below 0°C.
