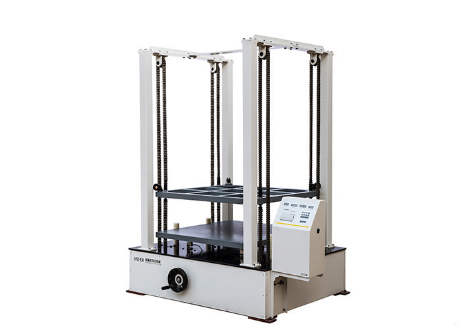

XYD-15K Box Compression Tester

XYD-15K Box Compression Tester

Features

  • The instrument is controlled by micro-computer with menu interface, PVC operation panel and the testing process is automatic
  • 4 testing modes: deformation under defined load, load under defined deformation, maximum load and stack tests
  • Dynamic digital-display of the test number, specimen deformation, real-time load and initial load
  • Single-phase power and direct-current drive guarantee the adjustability, accuracy and stability of test speed
  • Overload protection, maximum stroke protection and error alert for safe test operation
  • Light-weight design, suitable for various floor loads
  • Equipped with micro printer which is convenient for the printing of test data

Test Standards

This instrument conforms to various national and international standards:
ASTM D642, ASTM D4169,TAPPI T804, ISO 12048, JIS Z0212, GB/T 16491, GB/T 4857.4

Applications

Basic Applications
  • Deformation under Defined Load
    Test deformation under defined load of various corrugated cartons and beehive crates
  • Load under Defined Deformation
    Test load under defined deformation of various corrugated cartons and beehive crates
  • Maximum Load
    Test the maximum load of various corrugated cartons and beehive crates
  • Stack Test
    Stack test of various corrugated cartons and beehive crates
Extended Applications
  • Plastic Casks, Mineral Water Bottles
    Compression test of plastic casks and mineral water bottles

Technical Specifications

Specifications XYD-15K Box Compression Tester
Load Cell Capacity 15 KN or 45 KN (Optional)
Accuracy 1% FS
Force Resolution 1 N
Deformation Resolution 0.1 mm
Test Speed 5 mm/min, 10 mm/min, 12.7 mm/min
Test Space 1 m (L) x 1 m (W) x 1.3 m (H)
Power Supply 220VAC 50Hz / 120VAC 60Hz
Instrument Dimension 1.2 m (L) x 1.5 m (W) x 2.3 m (H)
Net Weight 800 kg

Note 1: The parameters in the table are measured by professional operator in Labthink laboratory according to relative requirements for laboratory standard conditions.
Note 2: The described product features, test standards and configurations should be in line with Technical Specifications.
