200 AMP Split-core AC Current Transformer Sensor T-MAG-SCT-200

Jual Data Logger energi | Distributor Data Logger Hobo di Indonesia | Distributor Weather Station ( alat ukur cuaca )

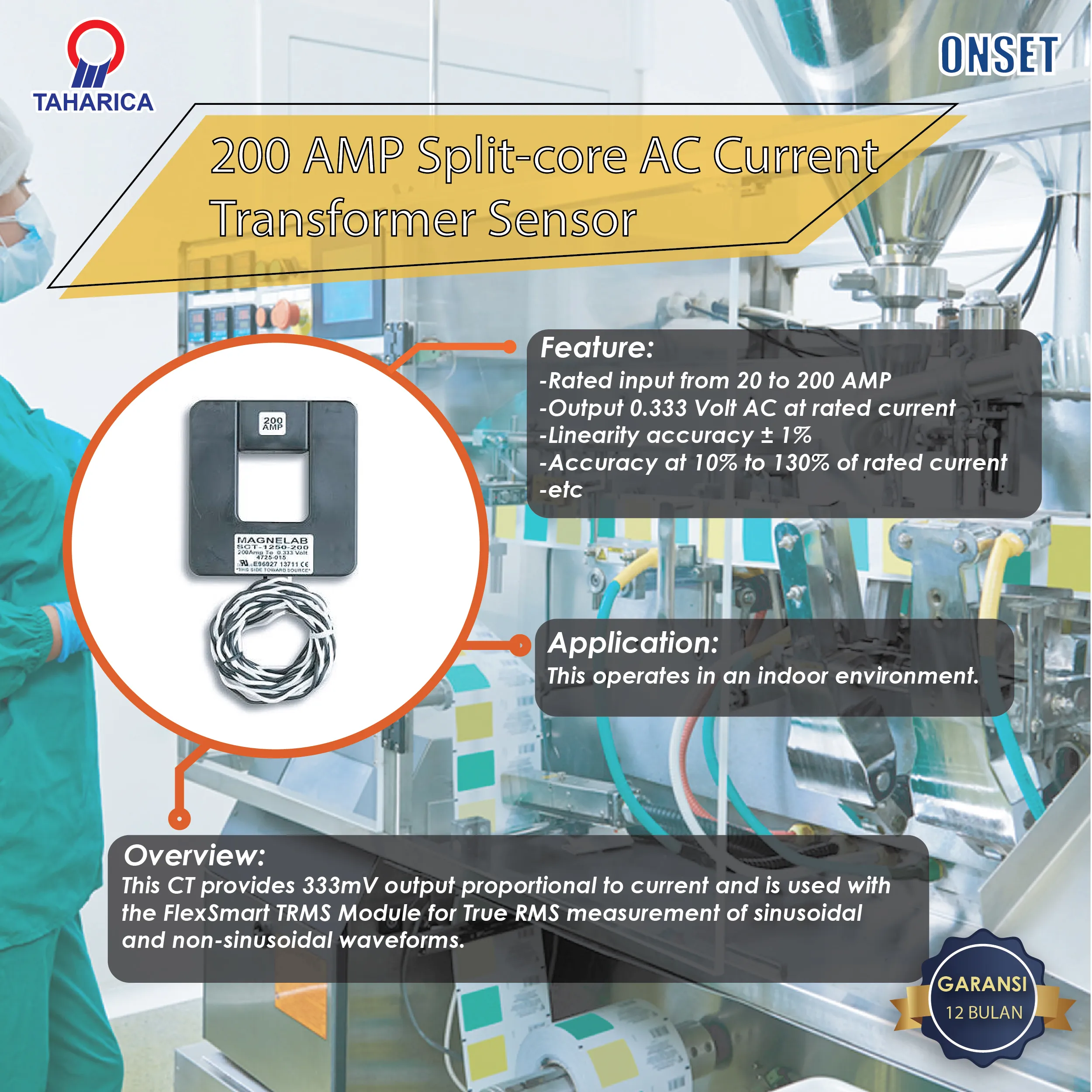

The Magnelab AC Current 200 Amp AC Current Transformer or CT (Magnelab part # SCT-1250-200) is mounted around a current carrying wire to measure AC Amperage. This CT provides 333mV output proportional to current and is used with the FlexSmart TRMS Module for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is accurate current measurement for many types of equipment, including variable frequency drives and switched power sources. One or two CTs can be used with each FlexSmart TRMS Module.

Highlighted Features

Rated input from 20 to 200 AMP
Output 0.333 Volt AC at rated current
Linearity accuracy ± 1%
Accuracy at 10% to 130% of rated current
Split-core design for fast, easy installation
8 ft. (2.44m) 22 AWG twisted pair leads
1.25” Opening

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The T-MAG-SCT-200 sensor supports the following measurements: AC Current and Amps (A)

The country of origin for this product is the United States. To see the full specifications for this product, please see our product manual found under the documentation tab if available

Rated input from 20 Amp to 200 Amp
Output 0.333 Volt AC at rated current
Operates from 30 Hz to 1,000 Hz
Phase angle < 2 degrees measured at 50% rated current
Linearity accuracy ± 1%
8 ft. twisted-pair lead
UL, c(UL) recognized, CE, and RoHS compliant
Accuracy at 10% to 130% of rated current
Custom output and other parameters are available
Width: 3.25 inches
Height: 3.35 inches
Thickness: 1.00 inches
Window: 1.25 inches
