Features

  • Multiple testing modes are available including tensile strength, deformation, peeling, tearing and compression resistance, etc. which can meet the testing demands of the customers
  • Statistical analysis on stress at definite elongation, elastic modulus and strain and stress are available
  • Double-column ball screw driving mechanism ensures high precision and steady working of the instrument
  • Compact and integrated design of the instrument can meet the requirements for various operating environments
  • Stepless speed change Note3 from 1 to 500mm/min can meet the requirements for various testing conditions
  • Multi-level over-travel protection, overload protect, automatic position reset and intelligent error alerts for safe test operation
  • The embedded computer controller system, with membrane switch is convenient for instrument operation
  • Embedded computer controlled system effectively guarantees the system security and the reliability of data management as well as test operation
  • The system is equipped with four USB ports and two net connection interfaces, which is convenient to data transmission
  • Professional operating software supports superposition analysis of test curves of group specimens and statistical analysis of maximum, minimum, average and standard deviation of test results
  • It supports Labthink exclusive DataShieldTM Note4 (Optional) , which provides the users with safe and reliable management of test data and test reports.

Test Standards

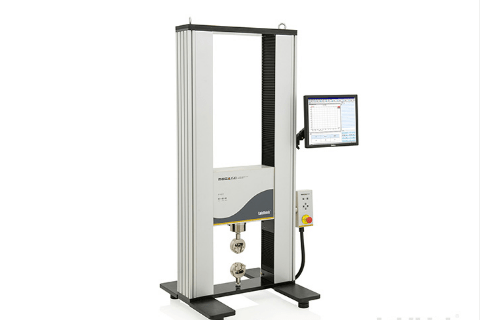

i-Strentek 1510 Universal testing machine conforms to the following standards:

ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM F88, ASTM F904, GB 8808, GB/T 1040.1-2006, GB/T 1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T 12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB 14232.1-2004, GB 15811-2001, GB/T 1962.1-2001, GB 2637-1995, GB 15810-2001, QB/T 2358, QB/T 1130 , JIS P8113, YY0613-2007, YBB00042005,YBB00112004

Applications

Basic Applications
  • Tensile Test
  • Test of Tensile Strength and Elongation Rate
  • Test of Tensile Strength at Break
  • Tear Resistance Test
  • Heat Seal Strength Test
  • 90 Degree Peel Test
  • 180 Degree Peel Test
  • Compression Resistance Test
Extended Applications
(Additional Accessories Required)
  • Opening Resistance Test of Combined Covers
  • Tear Test of ZD – Type Caps
  • Opening Resistance Test of Oral Liquid Caps
  • 90 Degree Pullout Test of Infusion Bag Caps
  • Tear Test of Adhesive Binding Books
  • Tear Test of Adhesives
  • 23 Degree Pullout Test of Bottle Caps
  • Pullout Test of Closures of Infusion Bags
  • 90 Degree Peel Test
  • Adhesive Strength Test (hard)
  • 90 Degree Peel Test of Water-soluble Plasters
  • Opening Resistance Test of Jelly Cups and Yogurt Cups
  • Adhesive Strength Test (soft)
  • Pullout Test of Tooth Brush Hair
  • Peel Test of Flexible Tube Caps
  • Removal Force of Pipes and Pipe Joints
  • Pullout Test of Cosmetic Brush Hair
  • Pullout Test of Rubber Closures
  • Tensile Strength of Ropes at Break
  • Separating Force of Protection Films
  • Peel Test of Cup Films
  • Tear Test of Heatseal Films
  • 45 Degree Peel Test of Bottle Membranes
  • Tensile Strength of Zip-lock Bag Mouth
  • Peel Test of Release Paper
  • 135 Degree Peel Test of Plugs
  • Unwrapping Force of Adhesive Tapes
  • Tear Test Using Trouser Method
  • 20 Degree Peel Test
  • Peeling Grips of Floating Rollers
  • Eccentric Grips
  • Wide Sample Grips
  • Japanese Sample Grips
  • British Sample Grips
  • Compression Resistance Tests of Containers
  • Compression Resistance Tests of Sponge

Technical Specifications

Specifications i-Strentek 1510 Universal testing machine
Test Force Range 500N (Standard)
50N, 100N, 250N, 1kN, 2kN, 5kN, 10kN (Optional)
Accuracy 1% FS
Test Speed 1 ~ 500mm/min (Stepless Speed Change) Note3
Number of Specimens 1
Clamping Way Pneumatic Specimen Clamp
Stroke 800 mm
Gas Supply Pressure 0.5MPa ~ 0.7MPa (Outside of Supply Scope)
Port Size Φ6mm PU Tubing
Instrument Dimension 850 mm (L) x 700 mm (W) x 1630 mm (H)
Power Supply 220VAC 50Hz / 120VAC 60Hz
Net Weight 150 kg

Configurations

Standard Configurations
Instrument, Professional Software, Pedal Switch, LCD Monitor, Keyboard, Mouse, Pneumatic Film Specimen Clamp
Optional Parts
Wedge-shape Sample Clamp (Manual), Sample Clamp for Compression Resistance Test, Lever-type Specimen Clamp (Pneumatic), DataShieldTM

Remarks:
Note 1: The parameters in the table are measured by professional operator in Labthink laboratory according to relative requirements for laboratory standard conditions.
Note 2: The described product features, test standards and configurations should be in line with Technical Specifications.
Note 3: The test speed should be integer in the range of 1 ~ 500.
Note 4: DataShieldTM provides safe and reliable data application support. Multiple Labthink instruments can share one single DataShieldTM system which can be purchase as required.
