Alat Uji Kayu Portable Lumber Grader FAKOPP

Alat Uji Kayu Portable Lumber Grader FAKOPP - Image 3

Alat uji Kayu pohon, alat uji pohon, alat uji kesehatan pohon, Root Testing Fakopp, Root Detector Fakopp, Distributor Alat Uji Pohon Indonesia

Structural lumber strength classes are determined by the EN-338 norm. The Portable Lumber Grader is designed to grade lumber according to the above norm, that handles two different species classes: deciduous and coniferous including poplar. Grading is based on the modulus of elasticity (MOE) and the average specific gravity of the lumber. The Portable Lumber Grader system determines the MOE and specific gravity as quickly as possible (1 second/lumber).

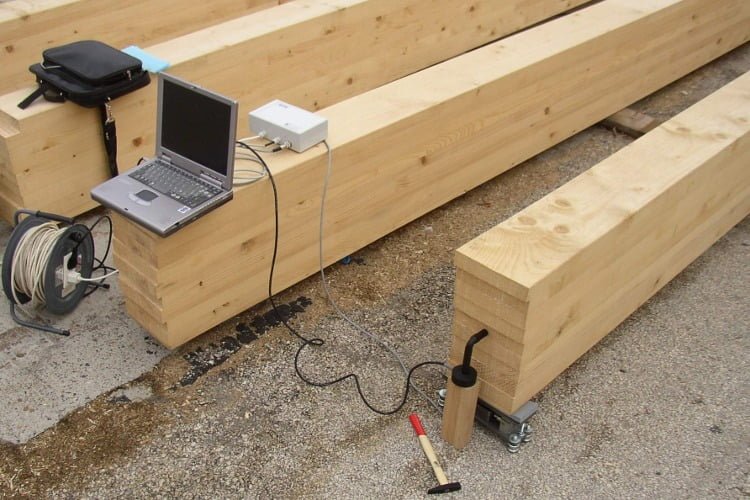

USAGE INSTRUCTIONS

Load weighing scale.
Hit the end of the lumber by a hammer.

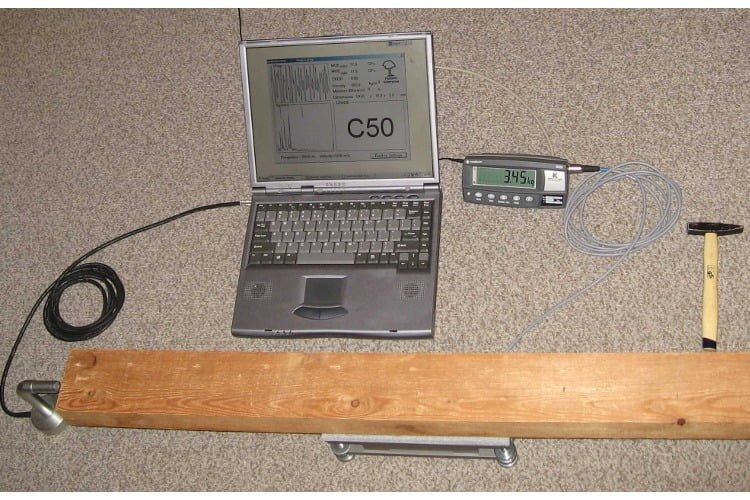

The results appear on the screen and, at the same time, also played as a voice message.

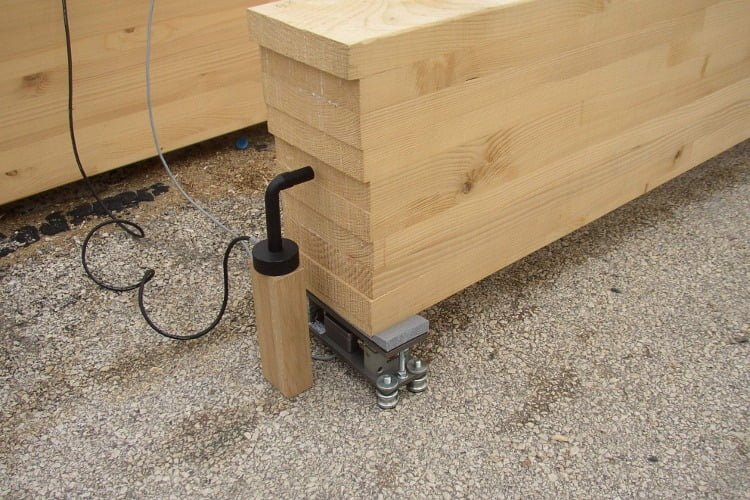

Weighing scale
Scale display unit
Tape measure
Steel hammer (100 g)
Battery and charger
Microphone
USB to serial converter cable
Portable Lumber Grader Software
User’s manual

TECHNICAL SPECIFICATIONS

Weighing scale

Dimensions 250 x 75 x 90 mm

Capacity 30-500 kg

Resolution 10 g

Output RS232 signal

Power supply 12 V adapter or 4 AA size batteries

Microphone

Type Unidirectional

Sensitivity -56 dB (0 dB = 1 V/mbar at 1000 Hz)

Frequency range 100 – 15000 Hz

Operational temperature 5 – 40 °C

Hammer

Weight 0.1 – 3% of the lumber weight

Grading

Principle mass, CKDR and MOE determination

Time requirement ~1 s

Grading table identical to the EN-338 norm
