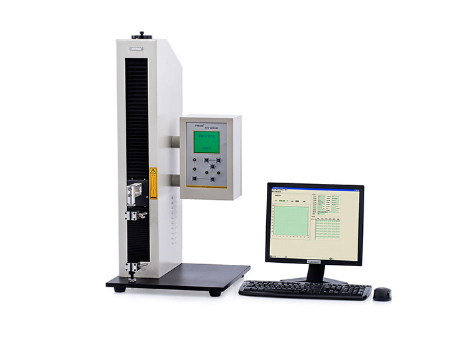

Auto Tensile Tester XLW

Auto Tensile Tester XLW

Jual Alat Uji Tes geser, Uji Kekuatan Tarik, dan Tingkat Pemanjangan, Uji Kekuatan Tarik saat Putus, Tes Tear Resistance, Uji Kekuatan Segel Panas Tes Peel 90 Derajat, Tes Peel 180 Derajat

Features

  • 1% of full scale effectively ensures the accuracy of test results
  • 7 independent test modes are available, including tensile strength, peeling force, tearing force, heat seal strength and other force properties of flexible packages
  • Different ranges of load cells and 7 distinct test speeds to meet different test requirements
  • The instrument is controlled by micro-computer with menu interface, PVC operation panel and large LCD display
  • Intelligent designs of over-travel protection, overload protection, automatic position reset and power failure memory for safe test operation
  • Professional operating software supports statistical analysis of group specimens, superposition analysis of test curves and historical data comparison functions as well as multi-functions of parameter setting, printing, inquiry, clear and calibration, etc
  • Equipped with RS232 port and micro printer port which is convenient to the data transmission and PC connection
  • Supports LystemTM Lab Data Sharing System for uniform and systematic data management

Principle

The pre-conditioned specimen is mounted between two grips, which move in relative direction during the test. The changes of force and displacement are separately recorded by the load cell fixed on the driven grip and embedded displacement transducer. The tensile strength, tear strength and elongation rate can be obtained by further calculation.

Standards

This instrument conforms to various national and international standards as follows:
ISO 37, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB/T 1130, GB 8808, GB/T1040.1-2006, GB/T1040.2-2006, GB/T 1040.3-2006, GB/T 1040.4-2006, GB/T 1040.5-2008, GB/T 4850-2002, GB/T12914-2008, GB/T 17200, GB/T 16578.1-2008, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590

Applications

This instrument is equipped with more than 100 grips for tests of more than 1000 materials. And customization is also available for special materials tests. Examples of instrument applications:

Basic Applications
  • Shearing Test
  • Test of Tensile Strength and Elongation Rate
  • Test of Tensile Strength at Break
  • Tear Resistance Test
  • Heat Seal Strength Test
  • 90 Degree Peel Test
  • 180 Degree Peel Test
Extended Applications
(Additional Accessories Required)
  • Puncture Test of Hypodermic Needles in Artificial Skin
  • Puncture Test of Films
  • Puncture Test of Infusion Bags
  • Puncture/Pullout Test of Flexible Rubber Closures
  • Opening Resistance Test of Combined Covers
  • Tear Test of ZD – Type Caps
  • Opening Force Test of Oral Liquid Caps
  • Puncture/Pullout Test of Oral Liquid Caps
  • 90 Degree Pullout Test of Infusion Bag Caps
  • Pullout Test of Infusion Bag Caps
  • 23 Degree Pullout Test of Bottle Caps
  • Puncture/Pullout Test of Bottle Caps or Rubber Closures
  • 90 Degree Peel Test of Adhesive Tapes
  • Tear Resistance Test of Adhesive Binding Books
  • 90 Degree Peel Test of Water-soluble Plasters
  • Tear Resistance Test of Adhesives
  • Adhesive Strength Test (soft)
  • Adhesive Strength Test (hard)
  • Peel Test of Flexible Tube Caps
  • Removal Force of Pipes and Pipe Joints
  • Pullout Test of Cosmetic Brush Hair
  • Pullout Test of Tooth Brush Hair
  • Tensile Strength of Ropes at Break
  • Opening Force Test of Jelly Cups and Yogurt Cups
  • Peel Test of Cup Films
  • Pullout Test of Rubber Stoppers
  • 45 Degree Peel Test of Bottle Membranes
  • Tensile Strength of Sealing Bags
  • Peel Test of Magnetic Cores
  • 90 Degree Peel Test of Magnetic Cards
  • Tear Resistance of Heat Sealing Films
  • Separating Force of Protection Films
  • Peel Test of Release Paper
  • Tear Test Using Trouser Method
  • Unwrapping Force of Adhesive Tapes
  • Compressive Resistance of Plastic Bottles
  • 20 Degree Peel Test
  • 135 Degree Peel Test of Plugs
  • Peeling Grips of Floating Rollers
  • Eccentric Grips
  • Wide Sample Grips
  • Japanese Sample Grips
  • British Sample Grips

Technical Specifications

Specifications XLW Auto Tensile Tester
Load Cell Capacity 500 N (standard) 30 N, 50 N, 100 N, 200 N (optional)
750 N, 1000 N (Customization Available)
Accuracy 1% FS
Test Speed 50, 100, 150, 200, 250, 300, 500 mm/min
Number of Specimens 1
Specimen Width 30 mm (Standard Grip)
50 mm (Optional Grip)
Clamping Way Manual Specimen Clamp
Stroke 600 mm
Instrument Dimension 450 mm (L) x 450 mm (W) x 980 mm (H)
Power Supply 220VAC 50Hz / 120VAC 60Hz
Net Weight 65 kg

Configurations

Standard Configurations
Instrument, Universal Grips, Professional Software and Communication Cable
Optional Parts
Micro Printer, Printing Cable, Standard Pressure Roller, Test Plate, Floating Roller Grip, Sample Cutter and Customized Grips
