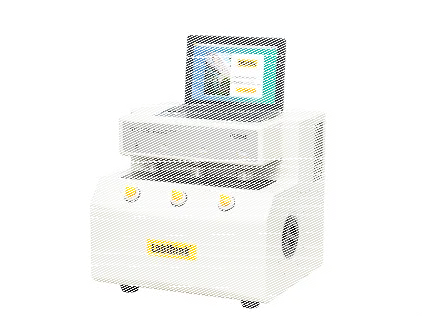

BTY-B3P Gas Permeability Tester

BTY-B3P Gas Permeability Tester

Product FeaturesNote1

  • The instrument is controlled by computer with automatic test process
  • Touch screen, easy to learn and easy to operate
  • Imported high precision pressure sensors are used, which guarantees the testing accuracy and repeatability
  • Imported pneumatic control system with ultra-low failure rate and extremely long service life, which guarantees the seal performance of the whole system
  • Environmental temperature and humidity are monitored and recorded in real time
  • 3 equivalent specimens can be tested simultaneously with the average value as test result
  • Pressure curves are displayed in real time for observation and analysis of the permeation process
  • The system supports unit conversion function to meet user’s requirements for special test
  • Customizations are available for special testing function, specimen size or test pressure

Test Principle

Under certain temperature and humidity, a constant gas differential pressure is generated between the two sides of specimen. The gas transmission rate and other parameters can be obtained by analyzing and calculating pressure changes in the lower pressure side.

Test StandardNote1

ISO 5636, SJT 1071.9, GB/T 36363-2018

ApplicationsNote1

Basic Applications
Test the gas permeability of battery diaphragms, breathable films and other relative polymer products.

Technical SpecificationsNote2

Specifications BTY-B3P Gas Permeability Tester
Test Range 10 ~ 10,000 s/in2·100 mL·1.21KPa
Pressure Range 0 ~ 20 KPa (customization is available for others)
High Pressure Resolution 0.01 KPa
High Pressure Accuracy ±0.05 KPa
Low Pressure Resolution 0.1 Pa
Low Pressure Accuracy ±0.3 Pa
Specimen Size ≥12 mm×12 mm
Test Area 0.019 sq.in. (12.56 mm2)
Customization available for other test areas
Number of Specimens 3, 2 or 1
Test Gas O2, N2, CO2 and 99.9% dry gas (outside of supply scope)
Gas Supply Pressure 0.6 Mpa (87 psi)
Port Size Φ4 mm PU Tubing
Power Supply 220VAC±10% 50Hz / 120VAC±10% 60Hz
Instrument Dimension 390 mm (L) × 433 mm (W) × 410 mm (H)
Net Weight 27 kg

Configurations

Standard Configurations
Instrument, Computer, Professional Software, Φ4 mm PU Tubing (2.5m)
Note
1. The gas supply port of the instrument is Φ4 mm PU tubing;
2. Customers need to prepare gas supply.

Note 1: The described product features, applications and test standards should be in line with Technical Specifications.
Note 2: The parameters in the table are measured by professional operators in Labthink laboratory under strictly controlled laboratory conditions.
