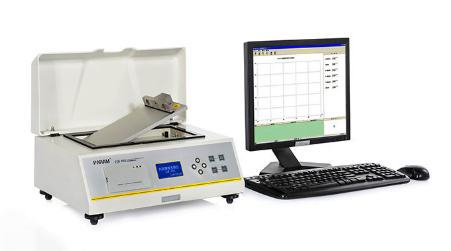

COF-P01 Inclined Surface Coefficient Of Friction Tester

The instrument is professionally applicable to the determination of static coefficients of friction of specimens on the inclined surface
The functions of freely changeable angular velocity and automatic plane reset support combinations of non-standard test conditions
The sliding plane and the sled are treated by degaussing and remanence detection which effectively reduce the system errors
The instrument is controlled by micro-computer with LCD, PVC operation panel and menu interface, which is convenient for customers to test or view the test data
Equipped with micro-printer and RS232 port for convenient PC connection and data transfer
Supports Lystem^TM Lab Data Sharing System for uniform and systematic data management

This instrument conforms to the following standards:
ASTM D202, ASTM D4918, TAPPI T815

The instrument is applicable to the determination of static coefficients of friction of:

Basic Applications
Films Including plastic films and sheets, e.g. PE, PP, PET, single or multi-layer composite films and other packaging materials for food and drugs
Paper and Paperboard Including paper and paper board, e.g. various paper and composite printing products of paper, aluminum and plastic
Extended Applications
Aluminum and Silicon Sheets Including aluminum sheets and silicon sheets
Textiles and Nonwovens Including textiles and nonwovens, e.g. woven bags

Specifications	COF-P01
Angle Range	0° ~ 85°
Accuracy	0.01°
Angular Velocity	0.1°/s ~ 10.0°/s
Specifications of Sled	1300 g (standard)
	235 g (optional)
	200 g (optional)
	Customization is available for other masses
Ambient Conditions	Temperature: 23±2°C
Ambient Conditions	Humidity: 20%RH ~ 70%RH
Instrument Dimension	440 mm (L) x 305 mm (W) x 200 mm (H)
Power Supply	220VAC 50Hz / 120VAC 60Hz
Net Weight	20 kg

Optional Parts: Professional Software, Communication Cable, Sled of 235g, Sled of 200g and Customized Sled
