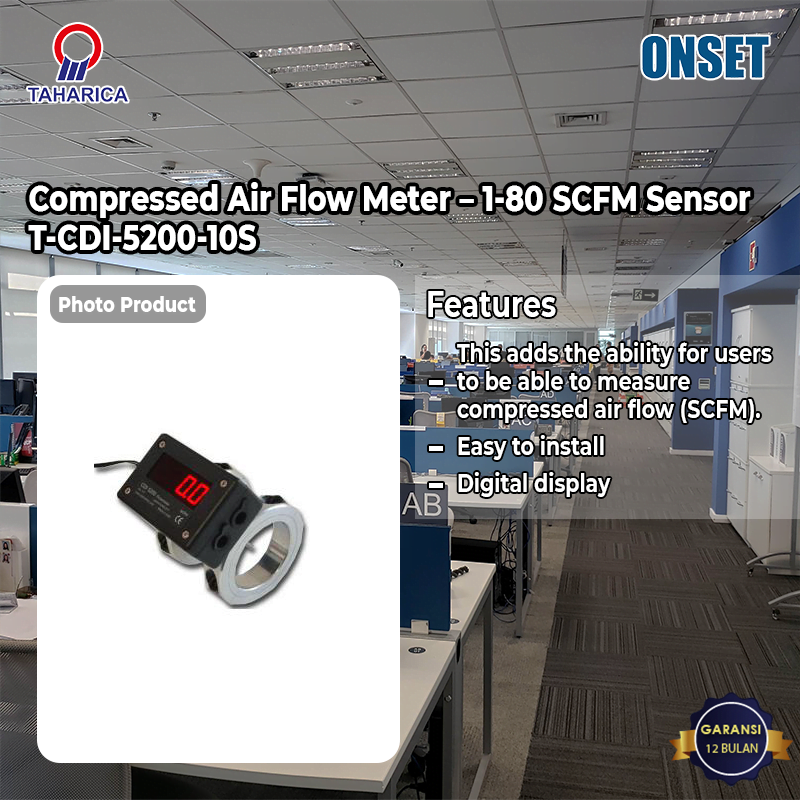

Highlighted Features
- This adds the ability for users to be able to measure compressed air flow (SCFM).
- Easy to install
- Digital display
| Measurement range 1 – 80 SCFM |
| Accuracy: 5% of reading plus 1% of full scale @ air temperatures 40 – 120F |
| Medium: Compressed air, nitrogen |
| Operating pressure: 30 to 170 psig for best accuracy. 200 psig max on Sch 40 steel |
| Input power: 250 mA @ 18 – 24 VDC |
| Output resistance: 400Ω max |
| Response time: 1 sec to 63% of final value |
| Output: selectable 4 – 20mA or pulse |
| Display: 4-digit LED |
| Ring material: Aluminum |
| Size / Weight: 3.2×2.2×1.6 in / approx. 1.2 lb |
