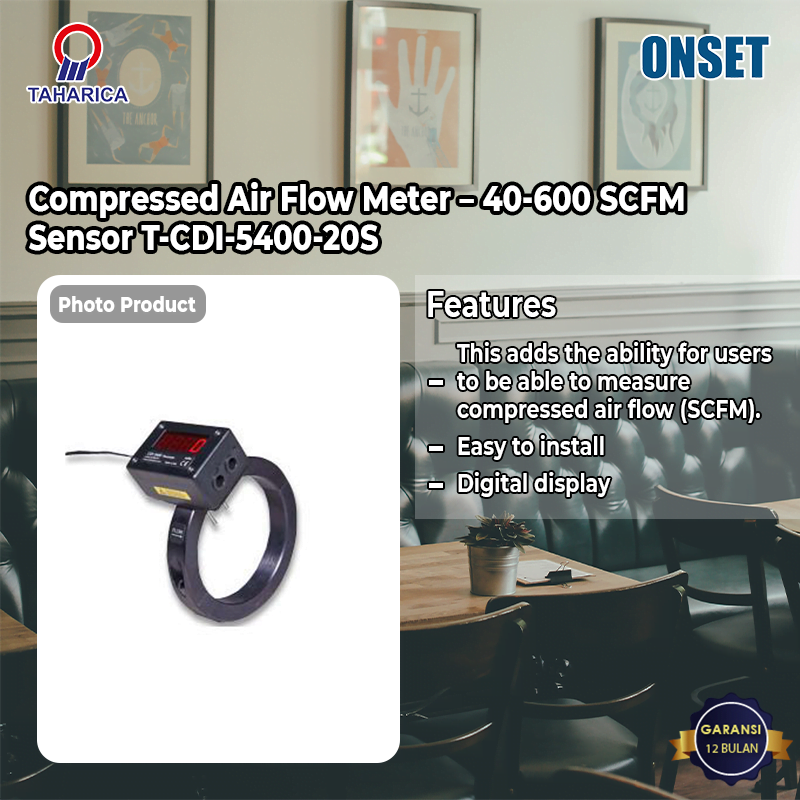

Highlighted Features
- This adds the ability for users to be able to measure compressed air flow (SCFM).
- Easy to install
- Digital display
In what environment does this sensor operate?
This sensor operates in an indoor environment.
What measurements does this sensor support?
The T-CDI-5400-20S sensor supports the following measurement: Compressed Air Flow
To see the full specifications for this product, please see our product manual found under the documentation tab if available
| Measurement range: 40-600 SCFM (calibrated), 350 – 600 (uncalibrated) |
| Accuracy: 5% of reading plus 1% of full scale @ air temperatures 40 – 120F; (5400 model extended range) 7% of reading from rated fule scale to 150% of calibrated range, @ air temperatures 40 – 120F |
| Medium: Compressed air, nitrogen |
| Operating pressure: 200 psig max on Sch 40 steel |
| Input power: 250 mA @ 18 – 24 VDC |
| Output resistance: 400Ω max |
| Response time: 1 sec to 63% of final value |
| Output: selectable 4 – 20mA or pulse |
| Display: 4-digit LED |
| Ring material: Aluminum |
| Size / Weight: 3.2×2.2×1.6 in / approx. 1.4 lb |
Note: Recommended: Drill Guide that facilitates accurately locating the holes that are needed to mount the flowmeter.
