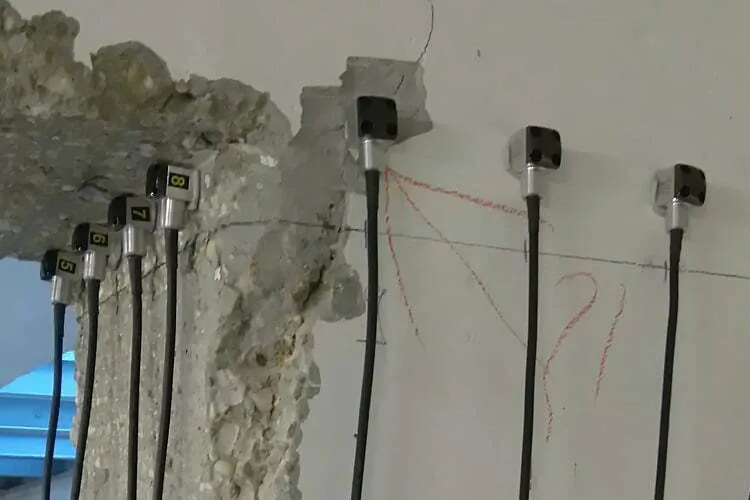

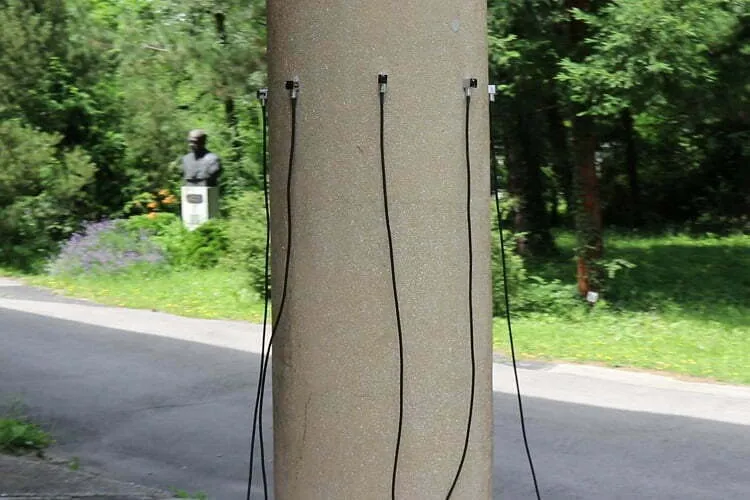

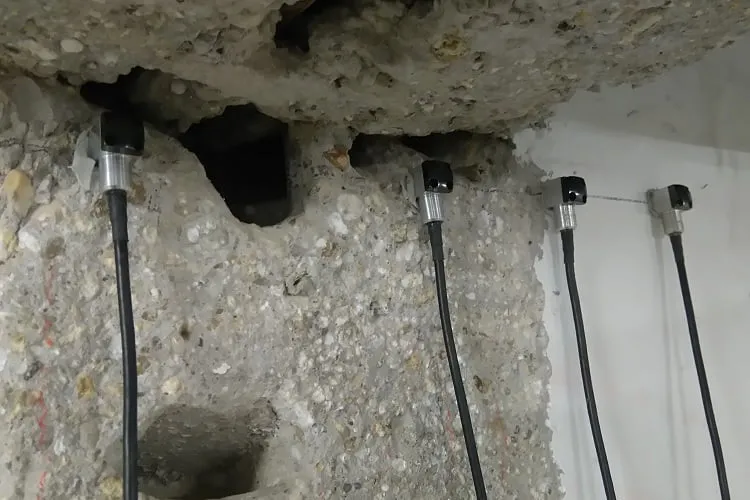

ConcreteSonic is the application of acoustic tomography on concrete walls, pillars and others. Sensors are specialized for flat surfaces.

USAGE INSTRUCTIONS

  1. Clean the surface.

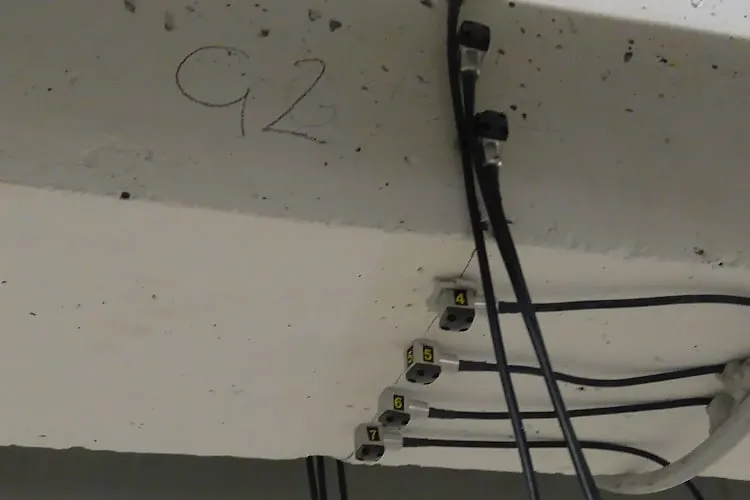

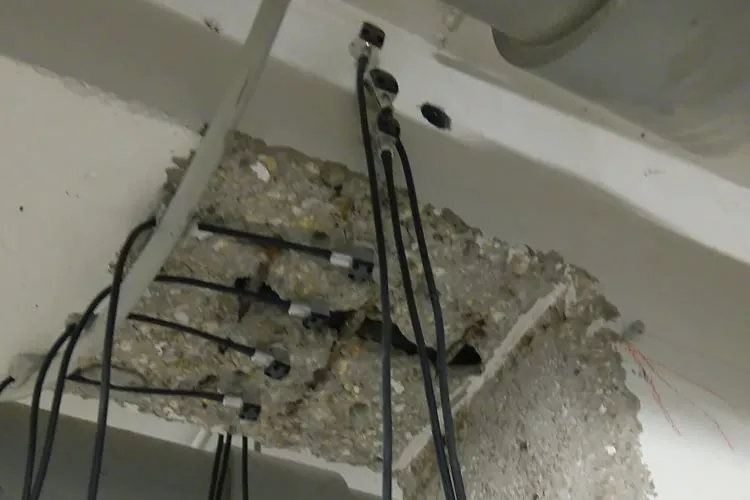

  2. Fix the sensors with a thin layer of putty glue.

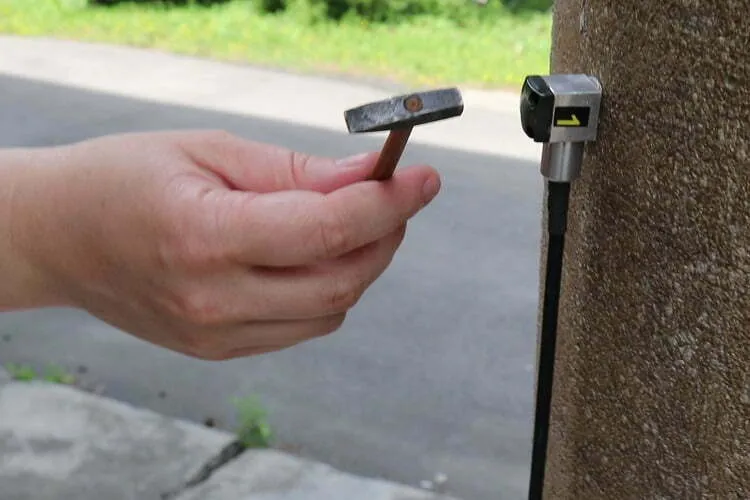

  3. Tap the sensors with the (little) hammer.

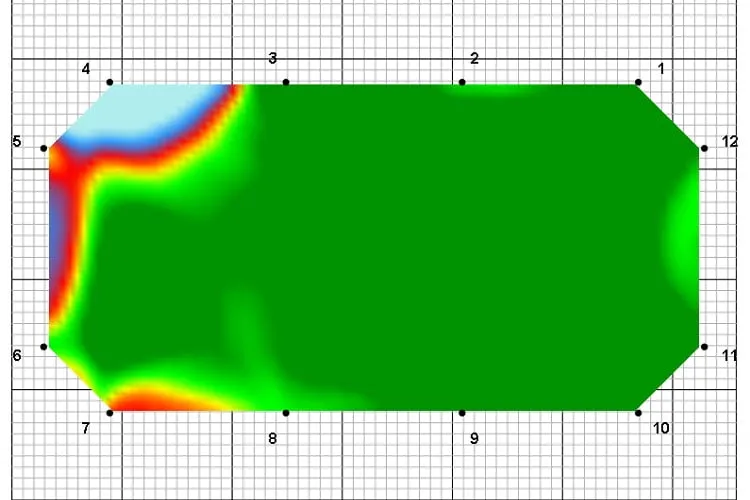

  4. Read the results in the software.

PACKAGE CONTENTS

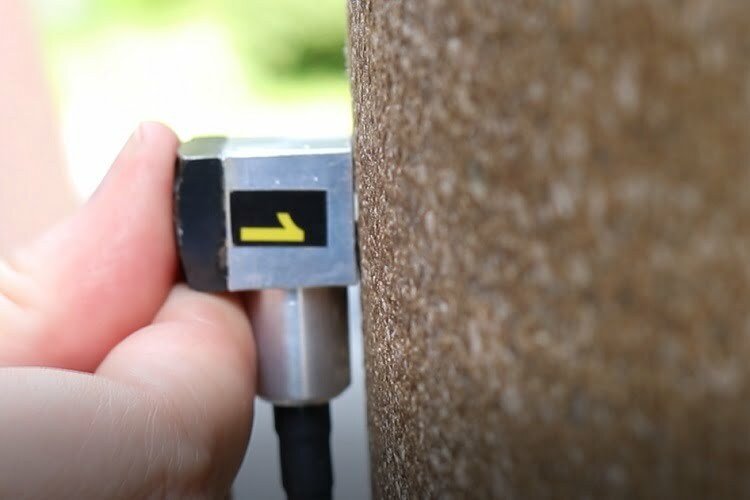

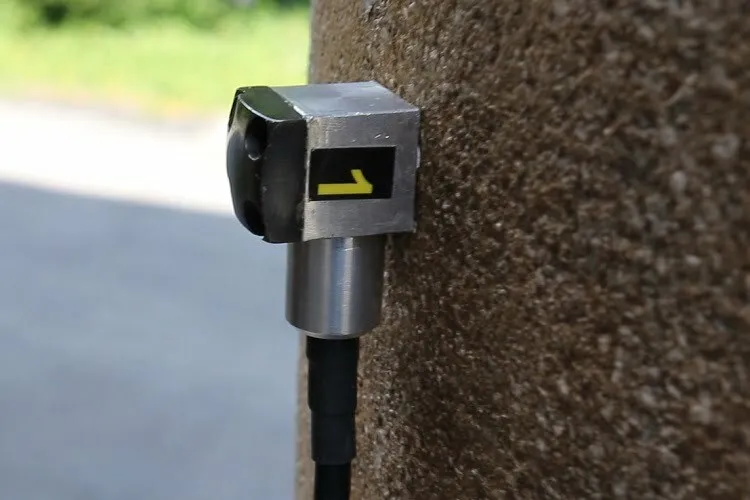

  • SD02 piezo sensors without nails
  • Dual amplifier boxes
  • Battery box
  • Steel hammer (10 g)
  • Evaluation software

TECHNICAL SPECIFICATIONS

Time required for one measurement  ~ 20 minutes
Hammer  10 g
Measured time precision  ± 2 μs
Number of sensors  8-32
