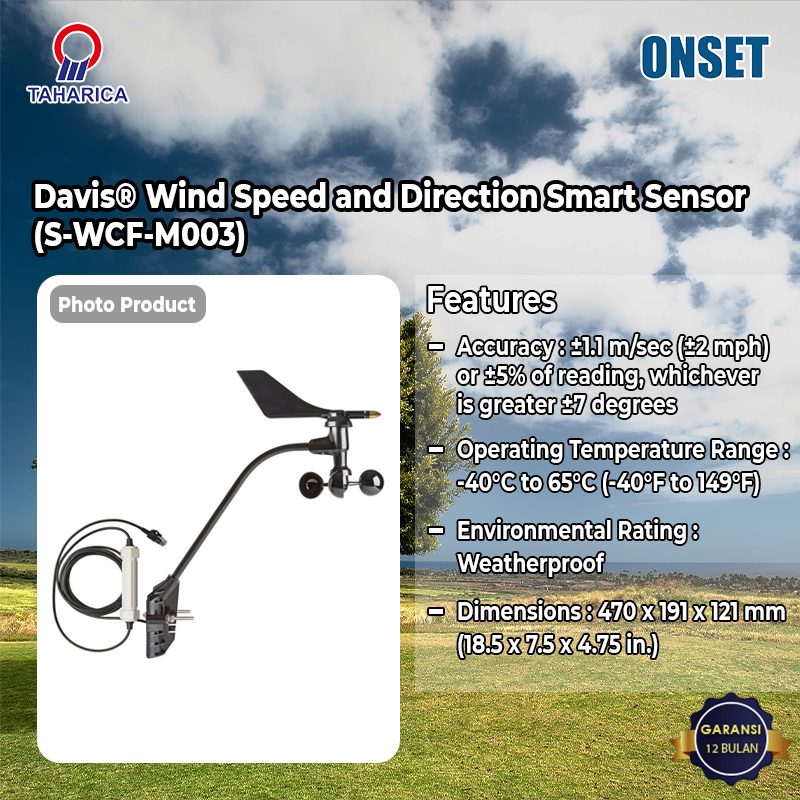

Davis® Wind Speed/Direction Smart Sensors are compatible with all HOBO weather station loggers, HOBOware, and HOBOlink. They offer the same ease-of-use as existing Onset Smart Sensors, providing cost-effective HOBO weather stations for projects on a tight budget. The sensors feature a plug-in modular connector for easy installation, and all configuration parameters are stored in the sensor and automatically communicated to the logger, eliminating the need for programming or extensive setup.
| Wind Speed/Gust | Wind Direction | |
| Measurement Range | 0 to 76 m/sec (0 to 170 mph) | 0 to 355 degrees |
| Accuracy | ±1.1 m/sec (±2 mph) or ±5% of reading, whichever is greater | ±7 degrees |
| Resolution | 0.5 m/sec (1.1 mph) | 1 degrees (0 to 355 degrees) |
| Starting Threshold | ≤1 m/sec (2.2 mph) | 1 m/sec (2.2 mph) |
| Measurement Definition | Cup revolutions are accumulated every three seconds for the duration of the logging interval
Wind speed: Average speed for the entire logging interval Gust speed: The highest three-second wind recorded during the logging interval See Measurement Operation. |
Unit vector averaging used; vector components for each wind measurement are calculated every three seconds for duration of logging interval (see Measurement Operation) |
| Operating Temperature Range | -40°C to 65°C (-40°F to 149°F) | |
| Environmental Rating | Weatherproof | |
| Housing | Polycarbonate wind cups | UV-resistant ABS wind vane and black-anodized aluminum anemometer arm |
| Bearing Type | Sealed stainless steel | |
| Turning Radius | 108 mm (4.25 in.) | Approximately 135 mm (5.25 in.) |
| Dimensions | 470 x 191 x 121 mm (18.5 x 7.5 x 4.75 in.) | |
| Weight | 1.332 kg (2 lb, 15 oz) | |
| Bits per Sample | 8 for each channel, 24 total | |
| Number of Data Channels* | 3 | |
| Measurement Averaging Option | Automatic averaging (see Measurement Operation) | |
| Cable Length Available | 3 m (9.8 ft) | |
| Length of Smart Sensor Network Cable* | 0.5 m (1.6 ft) | |
