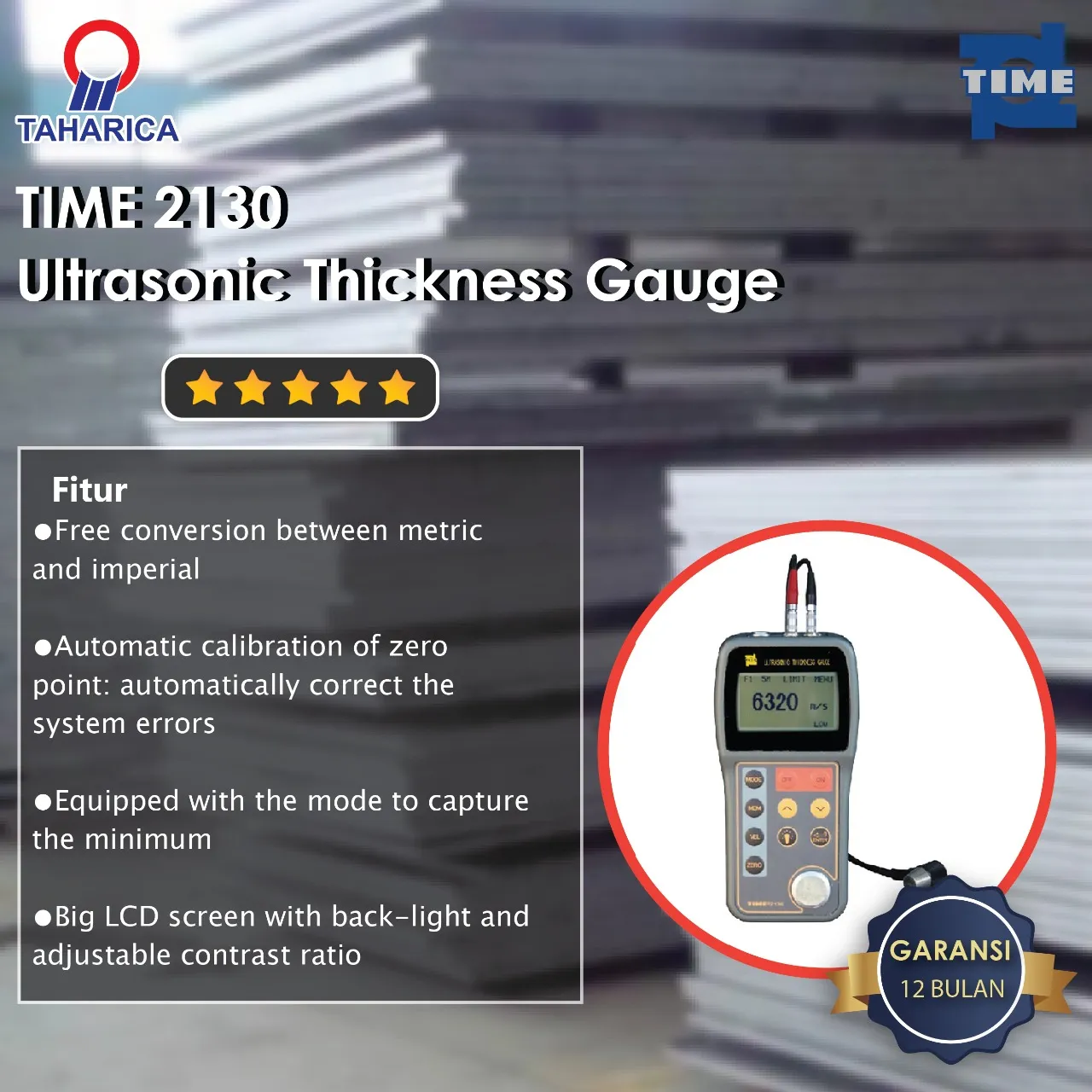

● TIME®2130: Equipped with RS232 interface to connect TA230 printer and PC with optional software. 5PФ10/90° transducer for normal purpose and optional TSTU32 transducer for casting iron.

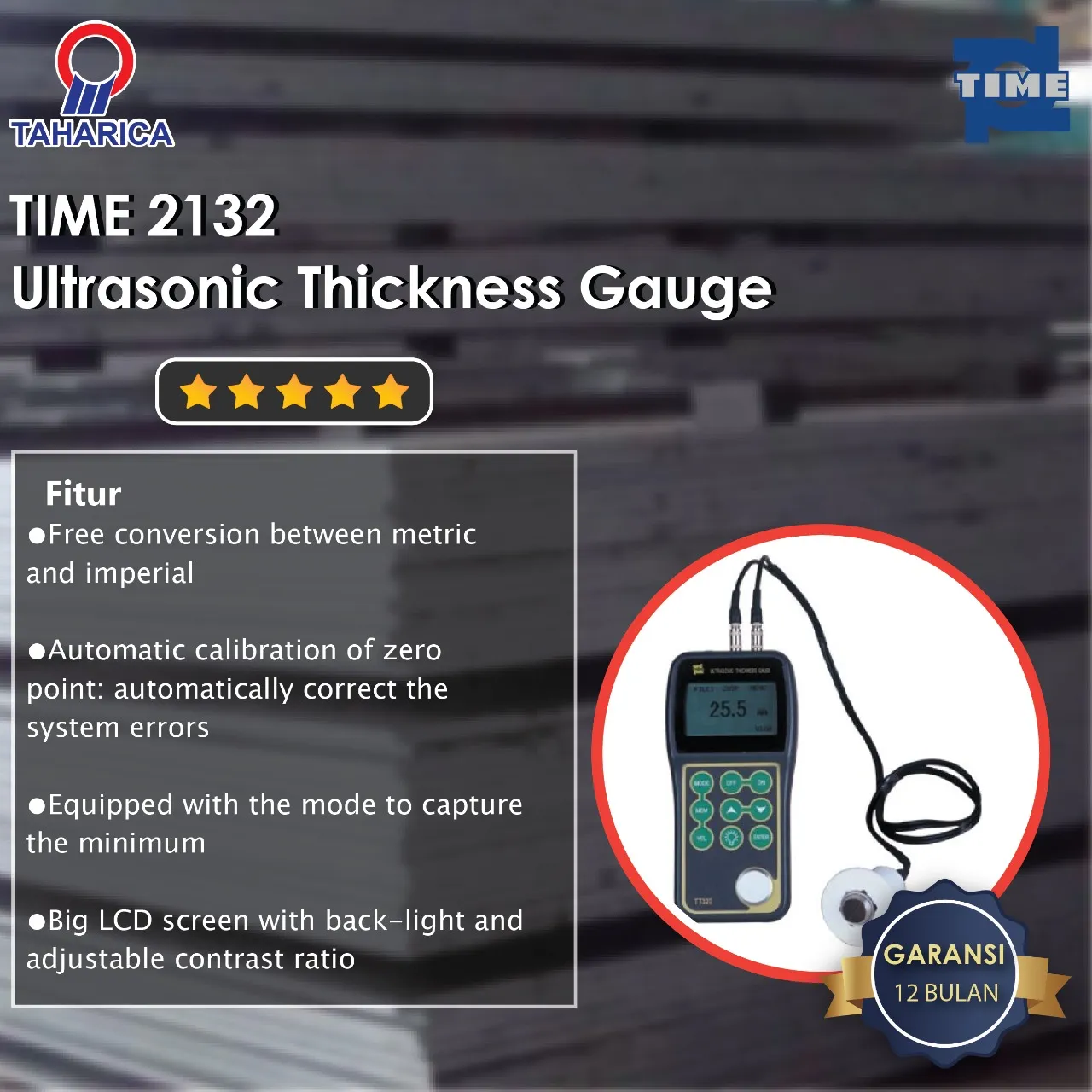

● TIME®2132: Anti-high-temperature reaching up to 300°C

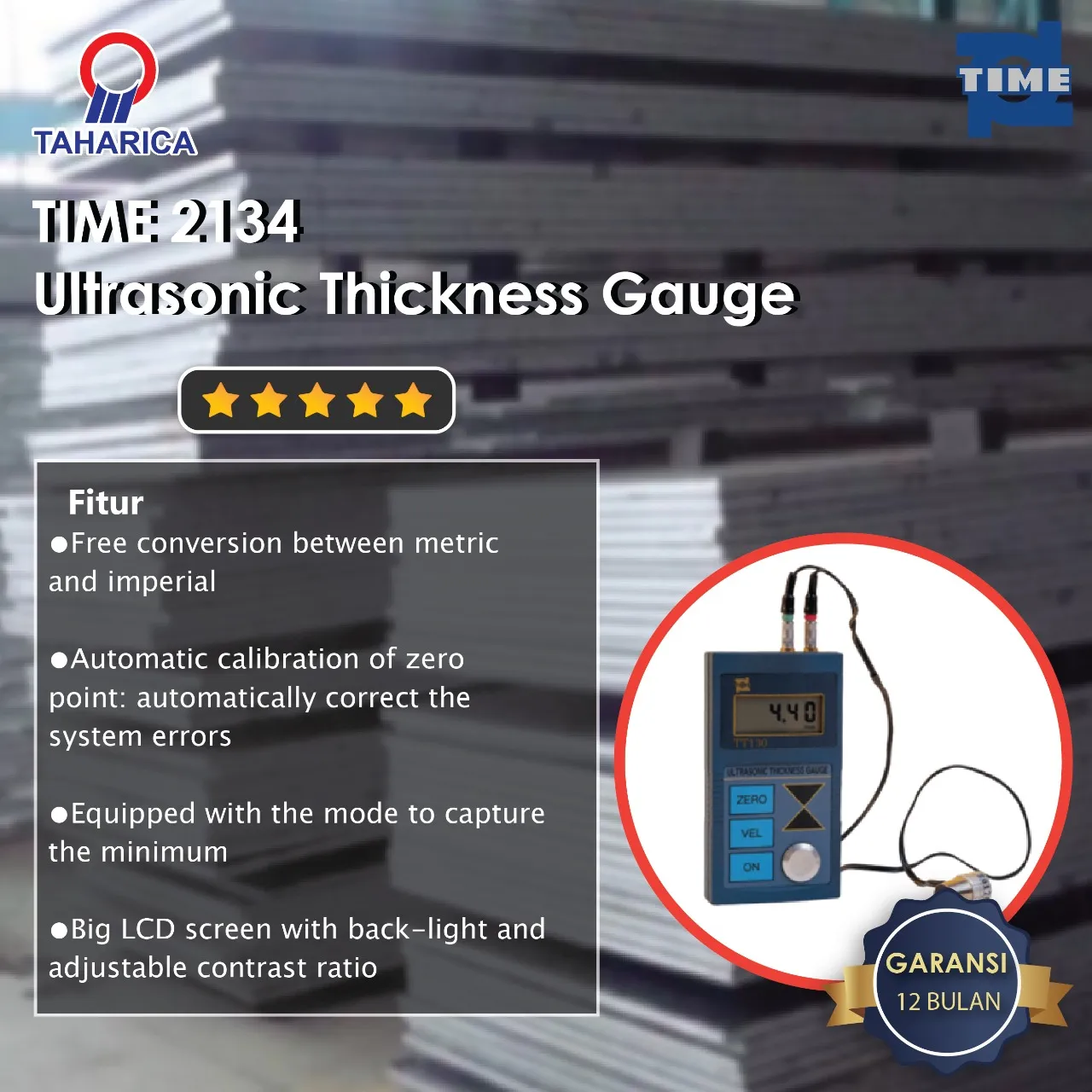

● TIME®2134: equipped with TSTU32 transducer for casting iron
Features
● Free conversion between metric and imperial
● Automatic calibration of zero point: automatically correct the system errors
● Gain adjustment, Low voltage indication and Automatic turn-off
● 500 test data and 5 sound velocity can be stored, delete and review
● Big LCD screen with back-light and adjustable contrast ratio
● Equipped with the mode to capture the minimum
● Two display modes: current thickness or minimum thickness
● Two point calibration for high accuracy
● Upper /lower limits pre-setting and sound alarm
● Resolution 0.001mm and 0.01mm selectable for your use
Spesifikasi
|
|
TIME®2130 |
TIME®2132 |
TIME®2134 |
|
Measuring range |
0.75mm-300.00mm(steel) |
1.2mm-225.0mm (steel) |
1.2mm-300.00mm |
|
Measuring accuracy |
±(1%H+0.1)mm (H means the |
±(1%H+0.1)mm (H means the thickness of tested piece) |
|
|
Lower limits of steel pipes |
φ20mm x 3.0mm |
φ20mm x 3.0mm |
|
|
Display resolution |
0. 1mm/0.01mm or |
0. 1mm or 0.01inch |
|
|
Data output |
RS232 Output for printer or pc |
|
|
|
Sound velocity |
1000m/s~9999m/s |
||
|
Power supply |
AA batteries (2pcs) 1.5V |
||
|
Battery life |
100 hours without backlight |
||
|
Unit scales |
mm/inch |
||
|
Operating temperature |
-10℃~ +60℃ |
-10℃~ +300℃ |
-10℃~ +60℃ |
|
Dimensions (mm) |
152 ×74 ×35 |
||
|
Weight (g) |
370 |
||
