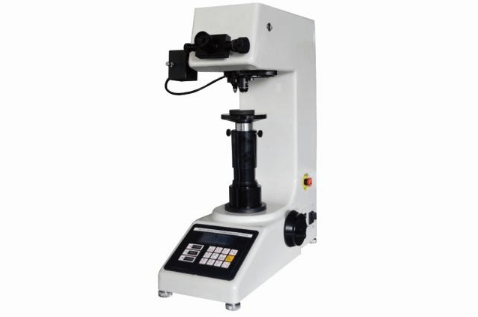

TH721/TH721Z Vickers hardness tester is a high-tech and new product combining the optics, mechanic and electrics features. It adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value. It can shows the test force, dwell time, test numbers on the screen, only need to input the diagonal of the indentation when operation, it can automatically get the hardness value and shows on the screen. It can be equipped with CCD image automatic measuring system.
Application Range
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Packing List
| Name |
Qty |
Name |
Qty |
| Instrument Main Body |
1 set |
10× Reading Microscope |
1 pc |
| Diamond Vickers Indenter |
1 pc |
10×，20×Objective |
each 1 pc |
| Big Plane Test Table |
1 pc |
V-shaped Test Table |
1 pc |
| Power Cable |
1 pc |
Level |
1 pc |
| Horizontal Regulating Screw |
4 pcs |
Halogen Lamp12V、15~20W |
1 pc |
| Fuse1A |
2 pcs |
Screw Driver |
1 pc |
| Inner Hexagon Spanner 2.5mm |
1 pc |
Hardness Block 400~500 HV5 |
1 pc |
| Hardness Block 700~800 HV30 |
1 pc |
Anti-dust Cover |
1 pc |
| Usage Instruction Manual |
1 copy |
|
Technical Specifications
|
Model |
TH721 |
TH721Z |
|
|
Test Force |
kgf |
1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf |
|
|
N |
9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N |
||
|
Test Range |
1HV~2967HV |
||
|
Loading Method |
Automatic (Loading/Dwell/Unloading) |
||
|
Shifting between Objective and Indenter |
Manual Shifting |
Automatic Shifting |
|
|
Objective |
10× (Measure) ，20× (Observe) |
||
|
Eyepiece |
10× Reading Microscope |
||
|
Total Magnification |
100× ，200× |
||
|
Resolution |
1μm |
||
|
Dwell Time |
0~60s |
||
|
Light Source |
Halogen Lamp |
||
|
Max. Height of Specimen |
170mm |
||
|
Throat |
130mm |
||
|
Power Supply |
AC220V，50Hz |
||
|
Execute Standard |
ISO 6507，ASTM E92，JIS Z2244，GB/T 4340.2 |
||
|
Dimension |
530×280×630mm，Packing Dimension: 620×450×740mm |
||
|
Weight |
Net Weight: 35kg，Gross Weight: 47kg |
||
