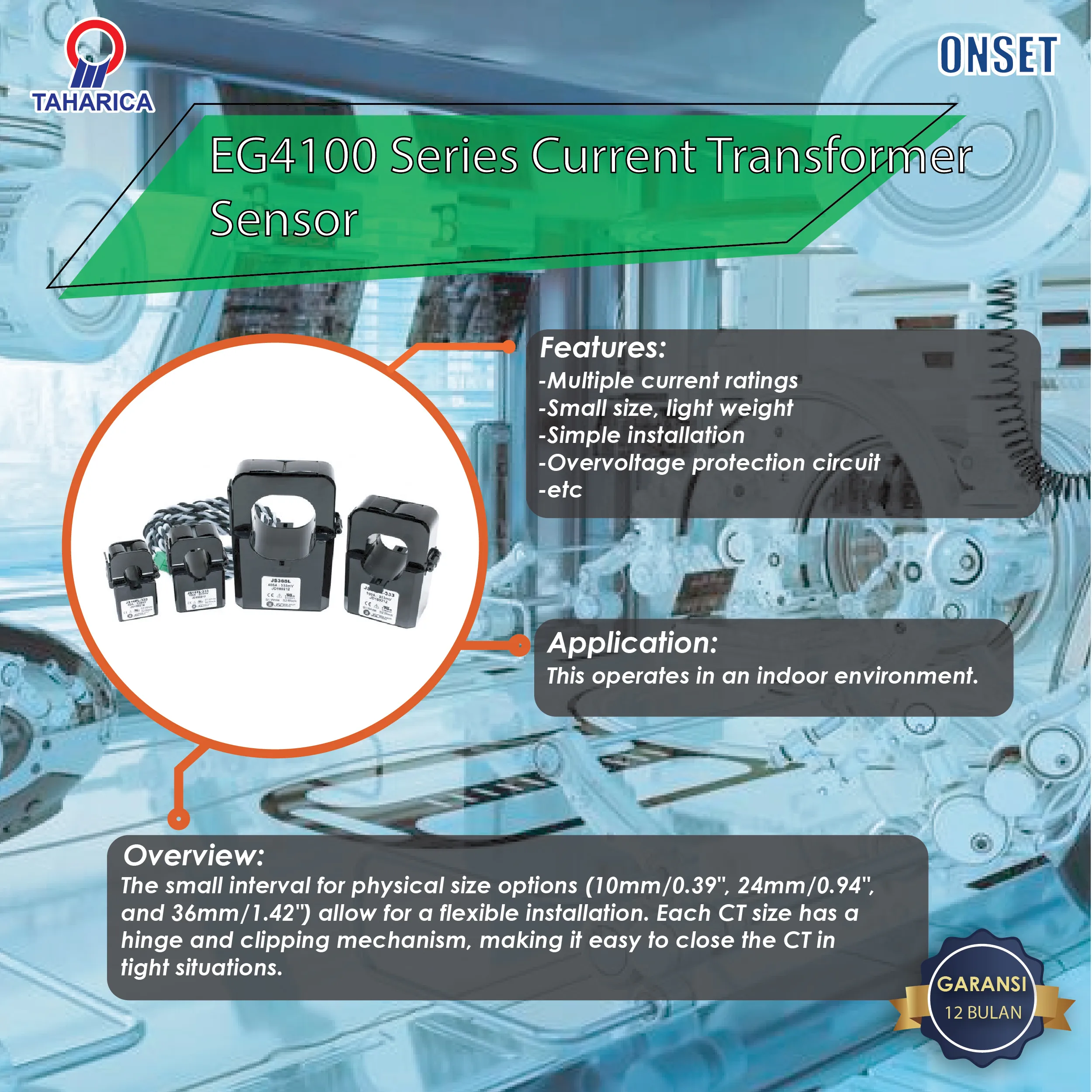

EG4100 Series Current Transformer Sensor Split-core CTs from J&D Sensing

Jual Data Logger energi | Distributor Data Logger Hobo di Indonesia | Distributor Weather Station ( alat ukur cuaca )

Split-core CTs from J&D Sensing offer a well constructed hinged body and are accurate to +/-1% from 1%-100% of their stated current rating. The small interval for physical size options (10mm/0.39″, 24mm/0.94″, and 36mm/1.42″) allow for a flexible installation. Each CT size has a hinge and clipping mechanism, making it easy to close the CT in tight situations.

Highlighted Features

Multiple current ratings
Small size, light weight
Simple installation
Overvoltage protection circuit
Pin-hinged at pivot point

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The T-EG-xxxx-xxxx sensor supports the following measurements: AC Current and Amps (A)

Technical Specifications

333 mVrms at rated output
Accurate within 1% from 1% to 100% of rated amperage
Operates 50Hz/60Hz
Maximum primary insulation up to 600 Vrms
8′ twisted pair lead with CT connector

Model	Description	Price
T-EG-0390-0050	50 Amp Split-core CT (0.39″ opening)	$35.00
T-EG-0390-0075	75 Amp Split-core CT (0.39″ opening)	$35.00
T-EG-0630-0050	50 Amp Split-core CT (0.63″ opening)	$35.00
T-EG-0630-0100	100 Amp Split-core CT (0.63″ opening)	$35.00
T-EG-0940-0100	100 Amp Split-core CT (0.94″ opening)	$46.00
T-EG-0940-0200	200 Amp Split-core CT (0.94″ opening)	$46.00
T-EG-1420-0400	400 Amp Split-core CT (1.42″ opening)	$47.00
T-EG-1420-0600	600 Amp Split-core CT (1.42″ opening)	$47.00

Model	A	B	C	D	E	Opening
T-EG-0390-XXXX	1.59”	0.91”	0.93”	1.05”	0.57”	0.39”
T-EG-0630-XXXX	1.77”	1.02”	1.18”	1.24”	0.74”	0.63”
T-EG-0940-XXXX	2.56”	1.48”	1.77”	1.33”	0.83”	0.94”
T-EG-1420-XXXX	3.24”	1.89”	2.25”	1.58”	0.83”	1.42”
