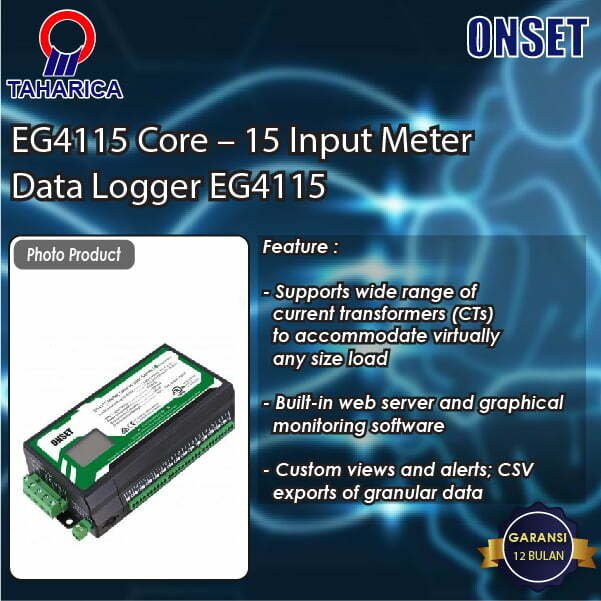

Highlighted Features
- 15 sensor inputs
- Supports wide range of current transformers (CTs) to accommodate virtually any size load
- Built-in web server and graphical monitoring software
- Custom views and alerts; CSV exports of granular data
- Fully web-configurable
- Built-in solid-state memory
- No service contracts
- No batteries
| Measurement | |

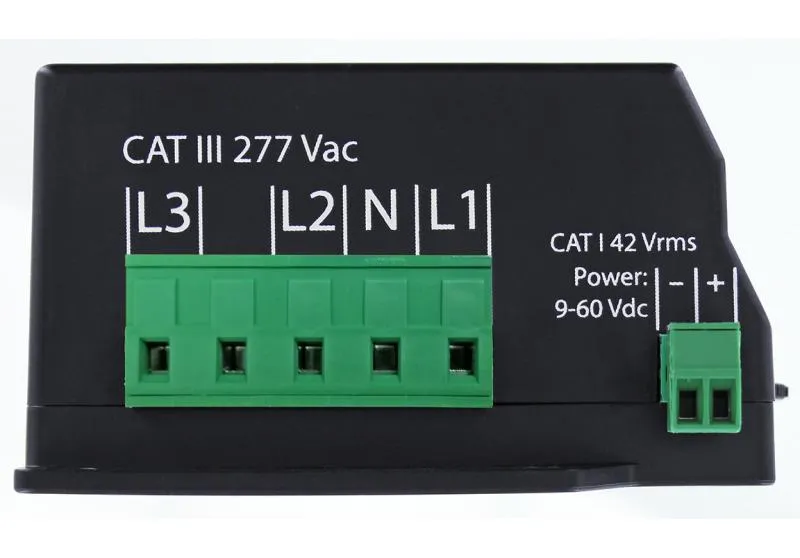

| AC Voltage: | L1: 85-277 Vrms L2: 0-277 Vrms L3: 0-277 Vrms |
| DC Voltage: | 42 Vrms Power: 9-60 Vdc Measurement: +/-60 Vdc |
| Current: | 15 channels 5-6900A max per channel Fully isolated inputs |
| Frequency: | 50 or 60 Hz |
| Logging Values: | V, A, W, Wh, Hz, VA, VAr, THD, deg |
| Power Draw: | 12W max, 2W typical |
| Environmental | |
| Op. Temperature: | -30 to 70 deg C (-22 to 158 F) |
| Max Altitude: | 4000m (13,123ft) |
| Max Humidity: | 80% up to 31 deg C |
| Meas. Category: | Overvoltage Category III |
| Location: | Open type indoor device |
| Pollution Degree: | 2 |
| Data Logger Capacity | |
| Register Count: | 64 (data storage points) |
| Granularity: | 1 hour/1 second |
| (duration/avg) | 1 year/1 minute 10 yrs/15 minute Device Lifetime/1 Day |
| Safety and Regulatory | |
| Safety: | IEC/UL 61010-1 Ed. 3.0 B:2010 |
| CE: | IEC 61000-6-1 Ed. 3.0 B:2016 IEC 61000-6-3 Ed. 2.1 B:2011 |
| FCC: | FCC Title 47 CFR Part 15-Subpart B Class B ICES-003 Information Technology Equipment Class B |
| Communication | |
| Homeplug AV: | Compatible with Homeplug AV-adapter within ~100ft. on same phase as L1 |

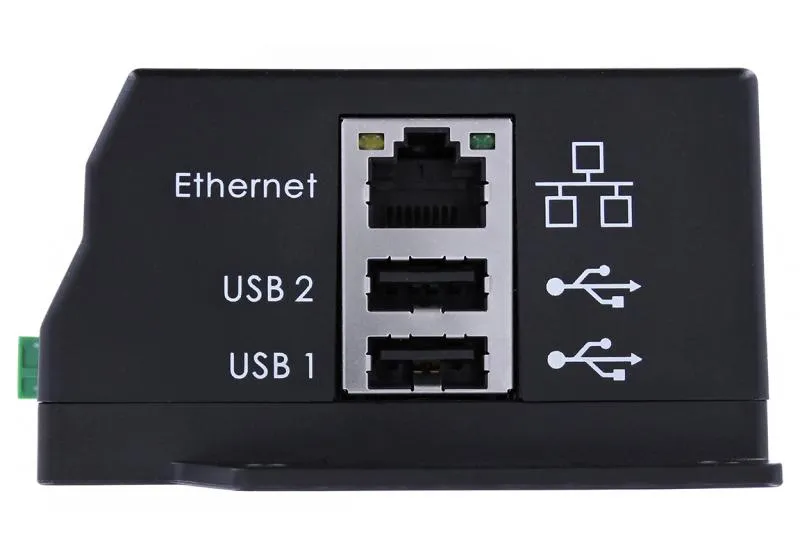

| Ethernet: | IEEE 802.3 – LAN |
| User Interface | |
| Compatible Browsers: (Only up-to-date versions supported) |
Google Chrome Firefox Safari Internet Explorer |
| Enclosure | |
| Material: | FRABS |
| Dimensions: | 17 x 8 x 4.6cm (6.7 x 3.15 x 1.81in) |
| Weight: | 300g (0.66lbs) |
| Warranty Standard: | 2 years |
