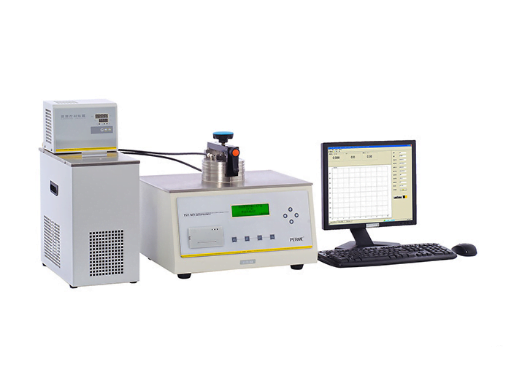

Electrolytic Detection Method Water Vapor Permeability Tester TSY-W3

Electrolytic Detection Method Water Vapor Permeability Tester TSY-W3

Jual Alat Uji Electrolytic Detection Method Water Vapor Permeability Tester TSY-W3, Alat Uji Instrumen ini secara profesional berlaku untuk penentuan laju transmisi uap air film plastik, film komposit, bahan penghalang tinggi, lembaran belakang, lembaran, foil aluminium, bahan kedap air, dan bahan lain yang digunakan dalam industri sanitasi dan medis. Dengan menguji laju transmisi uap air, indeks teknis material dapat dikontrol untuk memenuhi persyaratan produksi.

Features

  • The system is controlled by micro-computer with LCD, menu interface and PVC operation panel, which could conveniently export test data, test results and test curves
  • Wide range and high-precision of automatic temperature control to support combinations of non-standard test conditions
  • The system could be extended for the water vapor transmission rate test of finished package containers by special customization
  • Reference film for fast calibration to ensure the accurate and universal test data
  • Equipped with micro-printer and RS232 port for convenient data transfer
  • Supports LystemTM Lab Data Sharing System for uniform management of test results and test reports

Principle

Under a certain test temperature, a constant humidity difference is generated between two sides of the test specimen. The water vapor permeates through the specimen into the dry side and then is taken to the sensor, where proportional electric signals will be generated. The water vapor transmission rate and other parameters can be obtained by analyzing and calculating these electrical signals.

Standards

This test instrument conforms to the following standards:
ISO 15106-3, GB/T 21529, DIN 53122-2, YBB 00092003

Applications

This instrument is applicable to the determination of water vapor transmission rate of:

Basic Applications
  • Films
    Including plastic films, plastic composite films, paper-plastic composite films, coextruded films, aluminized films, aluminum foils, aluminum foil composite films and many others
  • Sheeting
    Including engineering plastics, rubber and building materials, e.g. PP, PVC and PVDC
  • Paper and Paper Board
    Including paper and paper board, e.g. aluminum foil paper for cigarette packages and Tetra Pak materials
  • Packages
    Including plastic, rubber, paper, paper-plastic composite, glass and metal packages, e.g. Coke bottles, Tetra Pak materials, vacuum bags, metal three-piece cans, soft tube packages for cosmetic and toothpaste, and jelly cups
Extended Applications
  • Solar Back-sheets
    Including solar back-sheets
  • LCD Monitor Films
    Including LCD monitor films
  • Paint Films
    Test water vapor permeability of various sorts of paint films
  • Medical Products and Accessories
    Including plasters, aseptic wound protecting films, face masks and scar sticks
  • Cosmetics
    Test water vapor permeability of cosmetics
  • Biodegradable Films
    Test water vapor permeability of various sorts of biodegradable films, e.g. starch-based packaging films
  • Package Caps
    Test seal performance of different package caps
  • Plastic Packages for Drugs and Health Care Products
    Test water vapor transmission rate of plastic bottles for drug and health care products, e.g. eye drop bottles, infusion bags and health care product packages
  • Blister Packs
    Test water vapor transmission rate of the whole blister packs

Technical Specifications

Specifications Film Test
Test Range 0.001 ~ 50 g/m2·24h (standard)
0.01 ~ 1000 g/m2·24h (optional)
Number of Specimens 1
Resolution 0.1ppm
Temperature Range 5°C ~ 95°C
Temperature Accuracy ±0.1°C
Humidity Range 0%RH, 2%RH ~ 98.5%RH, 100%RH (standard is 90%RH)
Accuracy ±1%RH
Test Area 38.48 cm2
Thickness < 1 mm (accessories required for thicker specimens)
Specimen Size Φ100 mm
Carrier Gas 99.999% High Purity Nitrogen (outside of supply scope)
Gas Flow 100 mL/min
Gas Supply Pressure ≥ 0.12 MPas
Port Size 1/8 inch copper tubing
Instrument Dimension 500 mm (L) x 400 mm (W) x 360 mm (H)
Power Supply 220VAC 50Hz / 120VAC 60Hz
Net Weight 36 kg

Configurations

Standard Configurations
Instrument, Micro-printer, Constant Temperature Control Device, Precision Pressure Regulator for Nitrogen Cylinder, Porous Ceramic Tray, Desiccant, Round Sample Cutter and Vacuum Grease
Optional Parts
Professional Software and Communication Cable
Note
1. The gas supply port of the instrument is 1/8 inch copper tubing;
2. Customers will need to prepare for gas supply, distilled water, and salt reagent.
