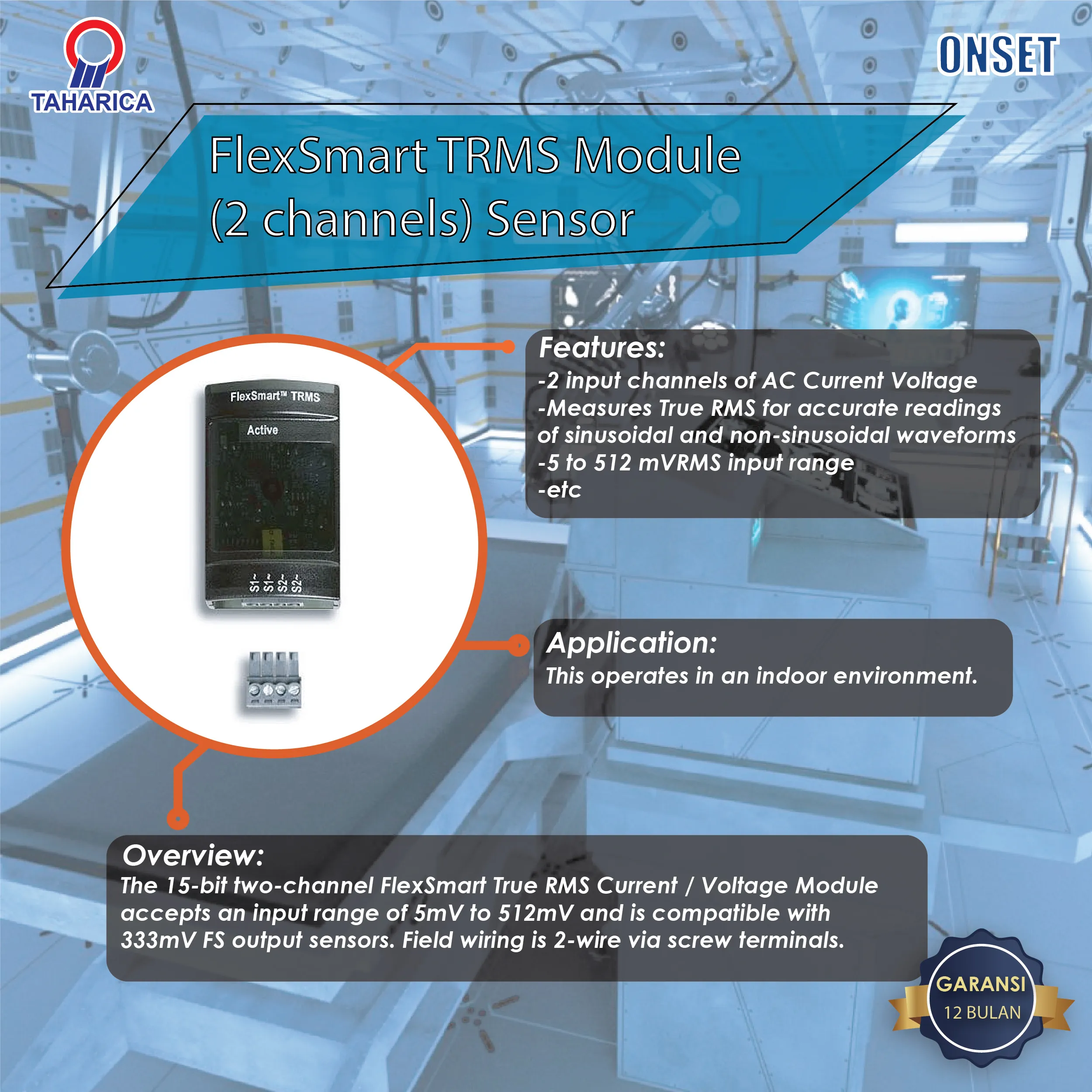

The 15-bit two-channel FlexSmart True RMS Current / Voltage Module accepts an input range of 5mV to 512mV and is compatible with 333mV FS output sensors. Field wiring is 2-wire via screw terminals.

Highlighted Features

  • 2 input channels of AC Current and/or Voltage
  • Measures True RMS for accurate readings of sinusoidal and non-sinusoidal waveforms

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The S-FS-TRMSA sensor supports the following measurements: AC Current and AC Voltage

The country of origin for this product is United Kingdom. To see the full specifications for this product, please see our product manual found under the documentation tab if available

Input channels: 2
Range: 5mV to 512mV input; compatible with 333mV FS output sensors
Maximum input: ±1V
Minimum input: 5mV
Accuracy: ±0.3% of reading ±0.5% FSR*
Resolution: 15-bit
Field wiring: 2-wire via screw terminals
Dimensions: 3.5cm x 5.7cm x 1.9cm (1.38 in. x 2.25 in. x 0.75 in.)
Weight: 21.2g (0.75oz)
