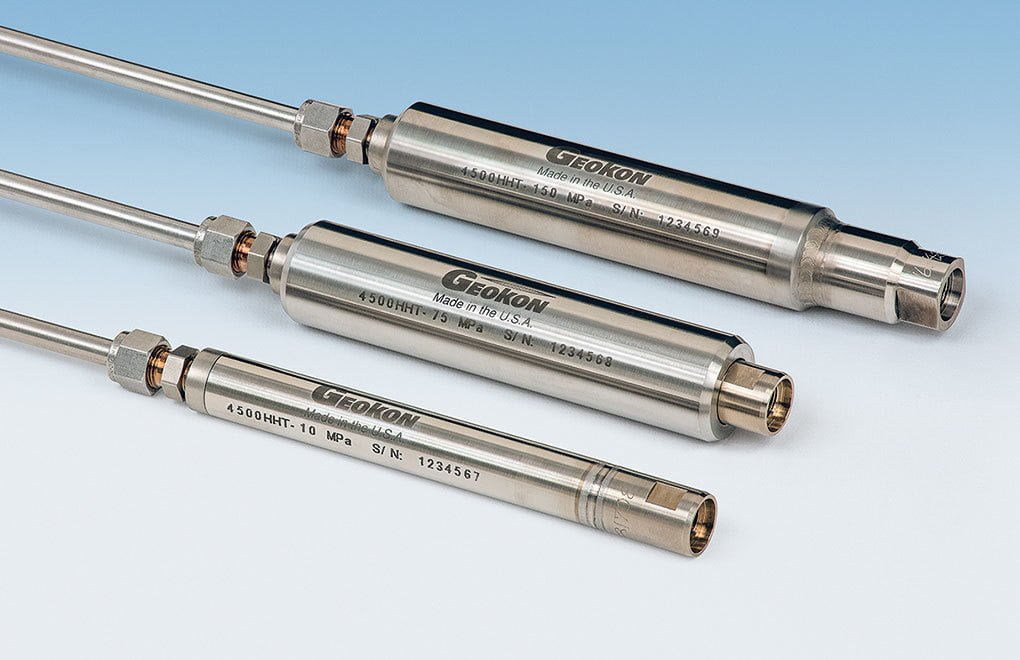

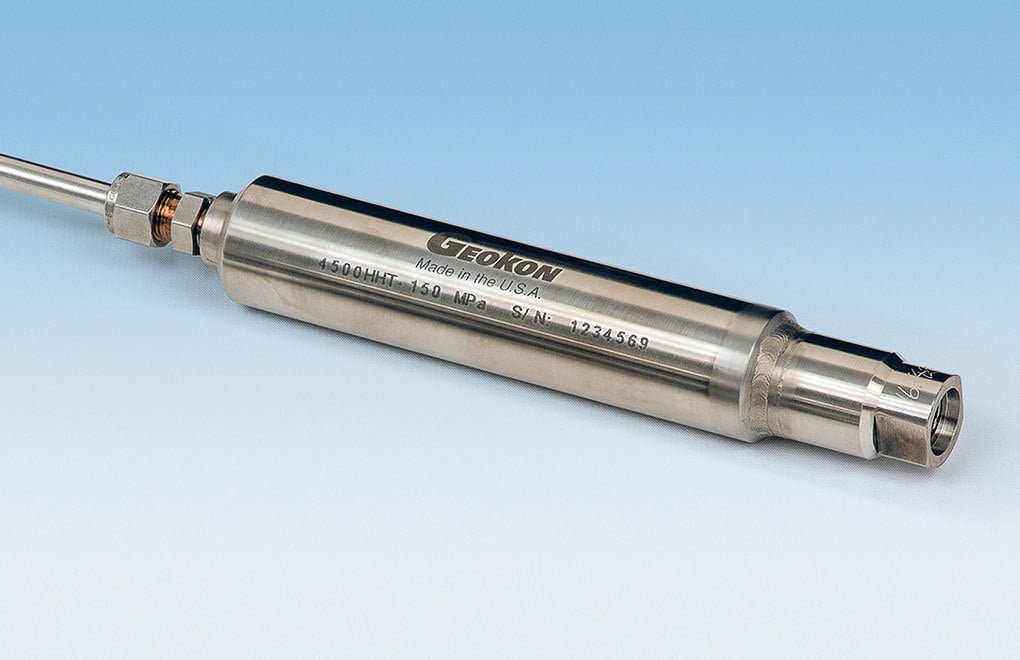

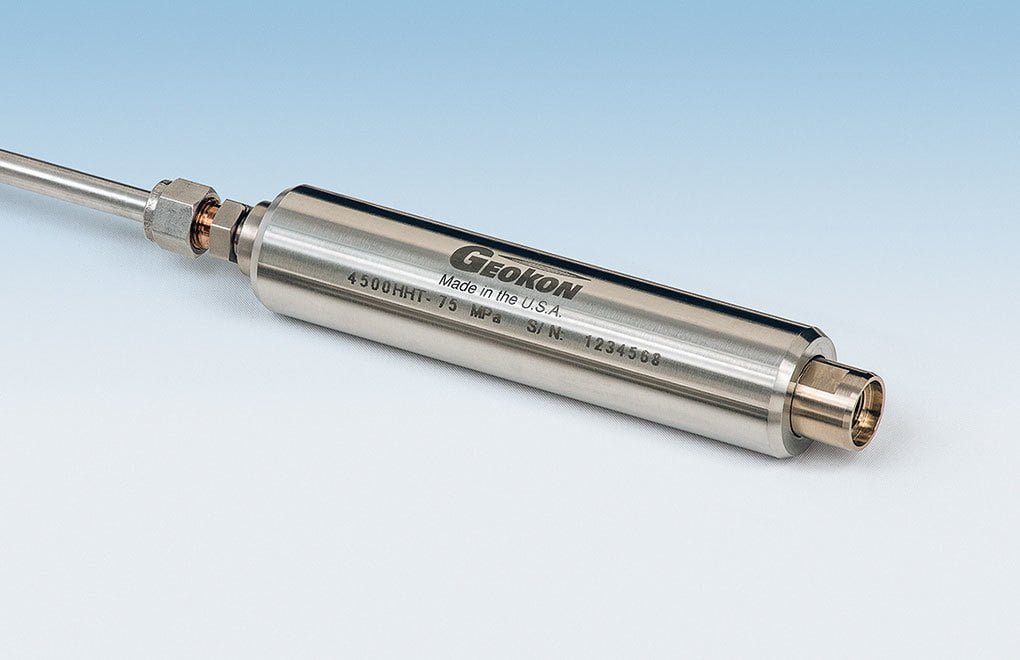

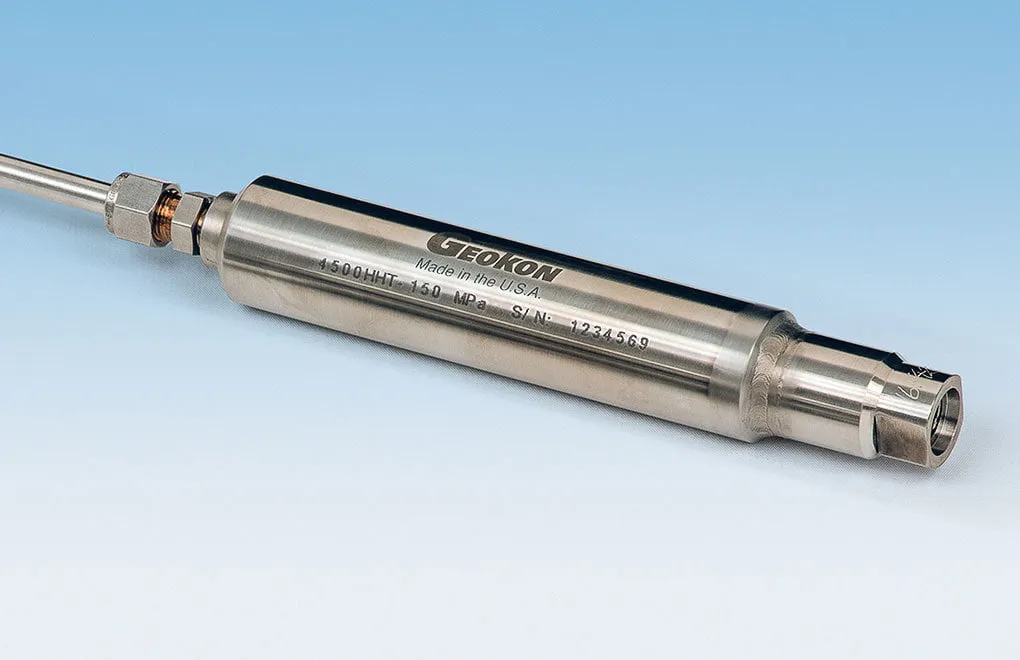

High Temperature Pressure Transducers (VW) | Model 4500HHT Series

Standard Ranges      : −100 to 350, 700 kPa; 1, 2, 3, 5, 7.5, 10, 20, 50, 75, 100, 150 MPa

Over Range                : 1.5 × rated pressure

Resolution                  : 0.025% F.S. (minimum)

Accuracy                     : ±0.1% F.S.

Linearity                     : <0.5% F.S. (±0.1% F.S. optional)

Temperature Range : 0°C to +250°C

Length × Diameter¹ : 191 × 19 mm (−100 to 700 kPa; 1, 2, 3, 5, 7.5, 10 MPa)
191 × 32 mm (20, 50, 75 MPa)
216 × 32 mm (100, 150 MPa)
