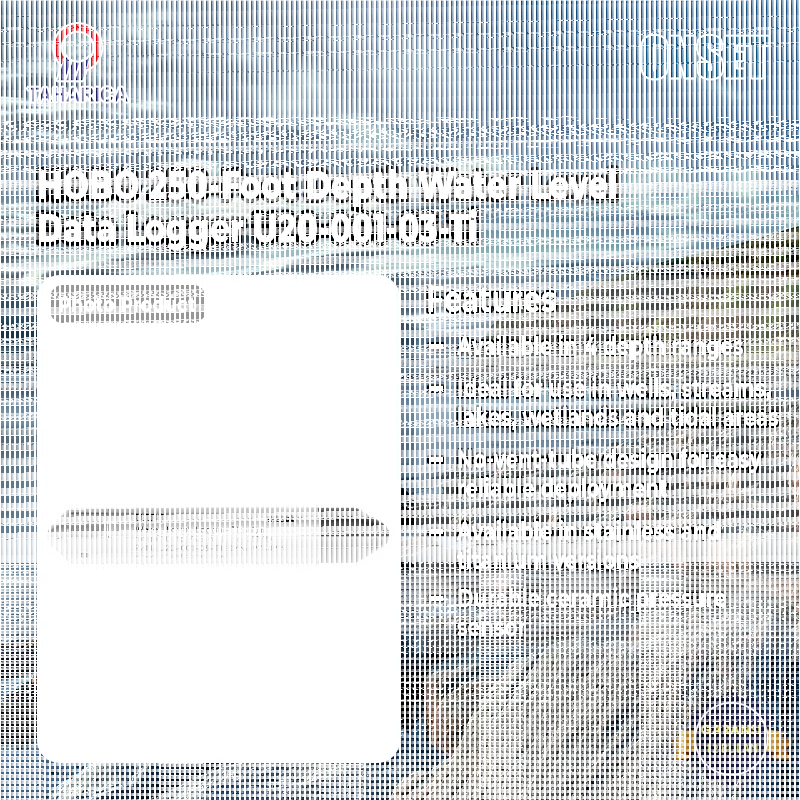

| Pressure and Water Level Measurements U20-001-03 and U20-001-03-Ti | |
| Operation Range | 0 to 850 kPa (0 to 123.3 psia); approximately 0 to 76.5 m (0 to 251 ft) of water depth at sea level, or 0 to 79.5 m (0 to 262 ft) of water at 3,000 m (10,000 ft) of altitude |
| Factory Calibrated Range | 69 to 850 kPa (10 to 123.3 psia), 0° to 40°C (32° to 104°F) |
| Burst Pressure | 1200 kPa (174 psia) or 112 m (368 ft) depth |
| Water Level Accuracy* | Typical error: ±0.05% FS, 3.8 cm (0.125 ft) water Maximum error: ±0.1% FS, 7.6 cm (0.25 ft) water |
| Raw Pressure Accuracy** | ±0.3% FS, 2.55 kPa (0.37 psi) maximum error |
| Resolution | <0.085 kPa (0.012 psi), 0.87 cm (0.028 ft) water |
| Pressure Response Time (90%)*** | <1 second; measurement accuracy also depends on temperature response time |
| Temperature Measurements (All Models) | |
| Operation Range | -20° to 50°C (-4° to 122°F) |
| Accuracy | ±0.44°C from 0° to 50°C (±0.79°F from 32° to 122°F), see Plot A in manual |
| Resolution | 0.10°C at 25°C (0.18°F at 77°F), see Plot A in manual |
| Response Time (90%) | 5 minutes in water (typical) |
| Stability (Drift) | 0.1°C (0.18°F) per year |
| Logger | |
| Real-time Clock | ± 1 minute per month 0° to 50°C (32° to 122°F) |
| Battery | 2/3 AA, 3.6 Volt lithium, factory-replaceable |
| Battery Life (Typical Use) | 5 years with 1 minute or greater logging interval |
| Memory (Non-volatile) | 64K bytes memory (approx. 21,700 pressure and temperature samples) |
| Weight | Stainless steel models: approximately 210 g (7.4 oz) Titanium models: approximately 140 g (4.8 oz) |
| Dimensions | 2.46 cm (0.97 inches) diameter, 15 cm (5.9 inches) length; mounting hole 6.3 mm (0.25 inches) diameter |
| Wetted Materials | Titanium, Viton® o-rings, acetyl cap, ceramic sensor |
| Logging Interval | Fixed-rate or multiple logging intervals, with up to 8 user-defined logging intervals and durations; logging intervals from 1 second to 18 hours. Refer to the HOBOware software manual. |
| Launch Modes | Immediate start and delayed start |
| Offload Modes | Offload while logging; stop and offload |
| Battery Indication | Battery voltage can be viewed in status screen and optionally logged in datafile. Low battery indication in datafile. |
| Environmental Rating | IP68 |
