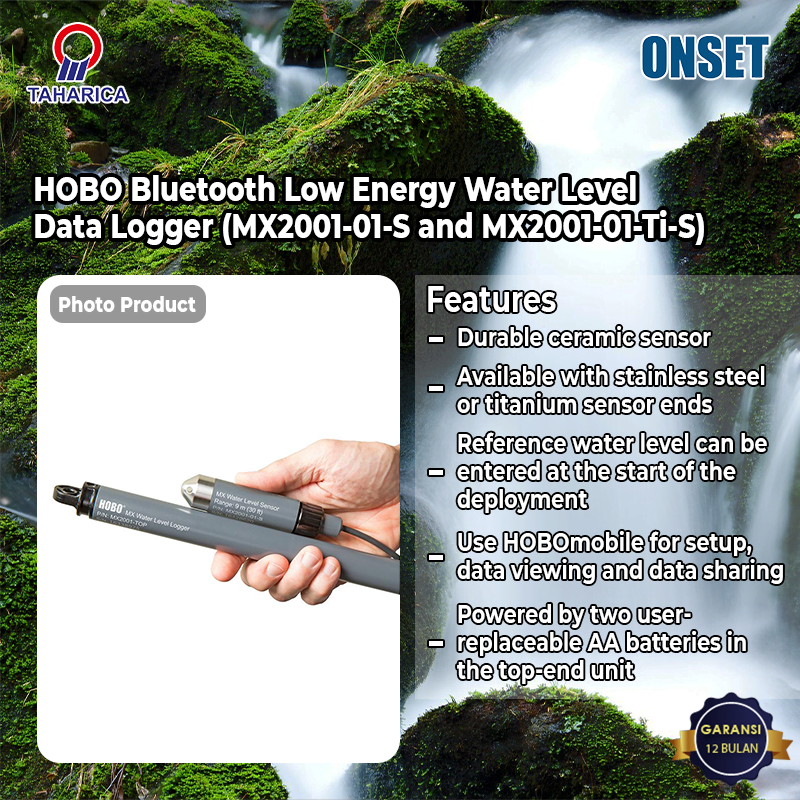

| Pressure (Absolute) and Water Level Measurements MX2001-01-S and MX2001-01-Ti-S – 9 Meter (30′) range | ||||
| Operation Range | 0 to 207 kPa (0 to 30 psia); approximately 0 to 9 m (0 to 30 ft) of water depth at sea level, or 0 to 12 m (0 to 40 ft) of water at 3,000 m (10,000 ft) of altitude | |||
| Factory Calibrated Range | 69 to 207 kPa (10 to 30 psia), 0° to 40°C (32° to 104°F) | |||
| Burst Pressure | 310 kPa (45 psia) or 18 m (60 ft) depth | |||
| Water Level Accuracy* | Typical error: ±0.05% FS, 0.5 cm (0.015 ft) water Maximum error: ±0.1% FS, 1.0 cm (0.03 ft) water |
|||
| Raw Pressure Accuracy** | ±0.3% FS, 0.62 kPa (0.09 psi) maximum error | |||
| Resolution | <0.02 kPa (0.003 psi), 0.21 cm (0.007 ft) water | |||
| Pressure Response Time (90%)*** | 1 second at a stable temperature | |||
| Temperature Measurements (All Sensor End Models MX2001-0x-S and MX2001-0x-Ti-S) | ||
| Operation Range | -20° to 50°C (-4° to 122°F) | |
| Accuracy | ±0.44°C from 0° to 50°C (±0.79°F from 32° to 122°F), see Plot A | |
| Resolution | 0.1°C at 25°C (0.18°F at 77°F), see Plot A in manual | |
| Response Time (90%) | 5 minutes in water (typical) | |
| Stability (Drift) | 0.1°C (0.18°F) per year | |
| Logger | |
| Operation Range | -20° to 50°C (-4° to 122°F) |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | Approximately 30.5 m (100 ft) line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval, multiple intervals with up to 8 user-defined logging intervals and durations, or event-triggered burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, date & time, or next interval |
| Stop Modes | When memory full, stop with HOBOmobile, date & time, or after a set logging period |
| Time Accuracy | ±1 minute per month 0° to 50°C (32° to 122°F) |
| Battery | Two AA, 1.5 V alkaline batteries, user replaceable |
| Battery Life | 1 year, typical with logging interval of 1 minute. Faster logging and/or statistics sampling intervals, entering burst logging mode, excessive readouts, checking of Full Status Details, and remaining connected with HOBOmobile will impact battery life. |
| Memory | 256 KB memory (30,000 sets of measurements) |
| Full Memory Download Time | Approximately 2 minutes; may take longer the further the device is from the top end of the logger |
| Dimensions | Top end (MX2001-TOP): 2.54 cm (1.0 inches) diameter, 28.9 cm (11.4 inches) length; mounting hole 7.6 mm (0.3 inches) diameter
Sensor end (MX2001-0x-S and MX2001-0x-Ti-S: 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length Note: The length of the water level logger cable (CABLE-DR-xxx) can vary -0% to +3% +10 cm (3.9 inches) from the length ordered. The logger adds 38.8 cm (15.3 inches) to the length of the cable ordered. |
| Weight | Top end (MX2001-TOP): Approximately 136 g (4.78 oz) in air
Stainless sensor end (MX2001-0x-S): Approximately 106 g (3.74 oz) in air; approximately 53.9 g (1.9 oz) in fresh water Titanium sensor end (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water |
| Wetted Materials | Top end (MX2001-TOP): Acetal housing, Polycarbonate end caps, Polycarbonate collar nut; Viton and Buna-N O-rings
Stainless sensor end (MX2001-0x-S): Acetal housing, PVC end cap, Polycarbonate collar nut; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap Titanium sensor end (MX2001-0x-Ti-S): Acetal housing, PVC end cap, Polycarbonate collar nut; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap |
| Environmental Rating | Top end: NEMA 6, IP67 Sensor end: IP68 |
