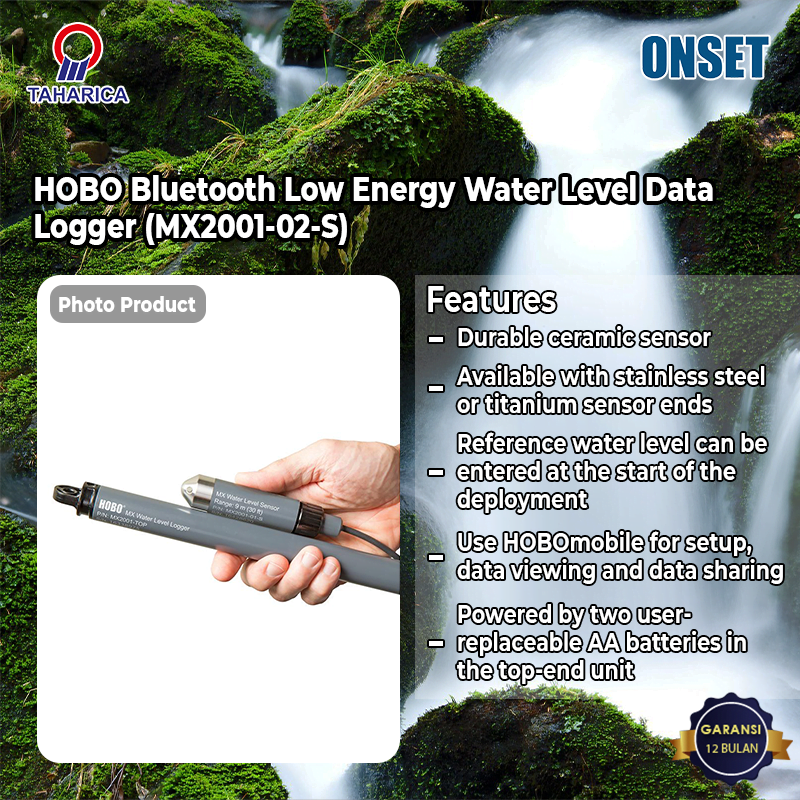

HOBO Bluetooth Low Energy Water Level Data Logger (MX2001-02-S)

HOBO Bluetooth Low Energy Water Level Data Logger (MX2001-02-S)

Highlighted Features

  • Wireless data offload to mobile devices using Bluetooth Low Energy
  • Integrated barometric pressure sensor enables direct water level readout
  • Direct read cable connects sensor to top-end logger/transmitter
    • The cable includes Kevlar strength member
    • Cables are interchangeable so loggers are easy to redeploy in future applications
    • The logger and sensor add 0.39 meters to the length of the cable
    • Cable length can vary up to 3% from the length ordered
    • The 1, 5, 10, 15, 30 and 60 meter cable lengths are in stock; custom cable lengths have a 1 to 2 week lead time
  • Reference water level can be entered at the start of the deployment
  • Use HOBOmobile for setup, data viewing and data sharing
  • Powered by two user-replaceable AA batteries in the top-end unit
  • Several logging modes: normal, multi-rate logging and event-triggered burst-logging
  • Durable ceramic sensor
  • Available with stainless steel or titanium sensor ends
  • 3-point NIST-traceable calibration certificate included for the water pressure sensor

Specifications

Pressure (Absolute) and Water Level Measurements MX2001-02-S  –  30 Meter (100′) range​
Operation Range 0 to 400 kPa (0 to 58 psia); approximately 0 to 30.6 m (0 to 100 ft) of water depth at sea level, or 0 to 33.6 m (0 to 111 ft) of water at
3,000 m (10,000 ft) of altitude
Factory Calibrated Range 69 to 400 kPa (10 to 58 psia), 0° to 40°C (32° to 104°F)
Burst Pressure 500 kPa (72.5 psia) or 40.8 m (134 ft) depth
Water Level Accuracy* Typical error: ±0.05% FS, 1.5 cm (0.05 ft) water
Maximum error: ±0.1% FS, 3.0 cm (0.1 ft) water
Raw Pressure Accuracy** ±0.3% FS, 1.20 kPa (0.17 psi) maximum error
Resolution 0.04 kPa (0.006 psi), 0.41 cm (0.013 ft) water
Pressure Response Time (90%)*** 1 second at a stable temperature
Logger
Operation Range -20° to 50°C (-4° to 122°F)
Radio Power 1 mW (0 dBm)
Transmission Range Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Logging Rate 1 second to 18 hours
Logging Modes Fixed interval, multiple intervals with up to 8 user-defined logging intervals and durations, or event-triggered burst
Memory Modes Wrap when full or stop when full
Start Modes Immediate, date & time, or next interval
Stop Modes When memory full, stop with HOBOmobile, date & time, or after a set logging period
Time Accuracy ±1 minute per month 0° to 50°C (32° to 122°F)
Battery Two AA, 1.5 V alkaline batteries, user replaceable
Battery Life 1 year, typical with logging interval of 1 minute. Faster logging and/or statistics sampling intervals, entering burst logging mode, excessive readouts, checking of Full Status Details, and remaining connected with HOBOmobile will impact battery life.
Memory 256 KB memory (30,000 sets of measurements)
Full Memory Download Time Approximately 2 minutes; may take longer the further the device is from the top end of the logger
Dimensions Top end (MX2001-TOP): 2.54 cm (1.0 inches) diameter, 28.9 cm (11.4 inches) length; mounting hole 7.6 mm (0.3 inches) diameter

Sensor end (MX2001-0x-S and MX2001-0x-Ti-S: 2.54 cm (1.0 inches) diameter, 9.91 cm (3.9 inches) length

Note: The length of the water level logger cable (CABLE-DR-xxx) can vary -0% to +3% +10 cm (3.9 inches) from the length ordered. The logger adds 38.8 cm (15.3 inches) to the length of the cable ordered.
Weight Top end (MX2001-TOP): Approximately 136 g (4.78 oz) in air

Stainless sensor end (MX2001-0x-S): Approximately 106 g (3.74 oz) in air; approximately 53.9 g (1.9 oz) in fresh water

Titanium sensor end (MX2001-0x-Ti-S): Approximately 80 g (2.83 oz) in air; approximately 37 g (1.3 oz) in fresh water
Wetted Materials Top end (MX2001-TOP): Acetal housing, Polycarbonate end caps, Polycarbonate collar nut; Viton and Buna-N O-rings

Stainless sensor end (MX2001-0x-S): Acetal housing, PVC end cap, Polycarbonate collar nut; Viton and Buna-N O-rings; ceramic sensor in stainless steel end cap

Titanium sensor end (MX2001-0x-Ti-S): Acetal housing, PVC end cap, Polycarbonate collar nut; Viton and Buna-N O-rings; ceramic sensor in Titanium end cap
Environmental Rating Top end: NEMA 6, IP67
Sensor end: IP68
