DJ series are designed for quick inspecting a wide range of non-conductive coatings and linings for pinholes, porosity and other faults by means of pulsed voltage in the non-destructive testing field. It is widely used in the petro-chemical, pipe mills, plastic fabrication and aerospace industries.
● DJ series are designed for quick inspecting a wide range of non-conductive coatings and linings for pinholes, porosity and other faults by means of pulsed voltage in the non-destructive testing field. It is widely used in the petro-chemical, pipe mills, plastic fabrication and aerospace industries.
● Display of output high voltage directly
● Clear LCD with blue backlight
● Switch off automatically
● State of charge indicator
● DJ-6(A): mainly used for the antisepsis of pottery
● DJ-6(B): mainly used for petroleum pipeline (high voltage)

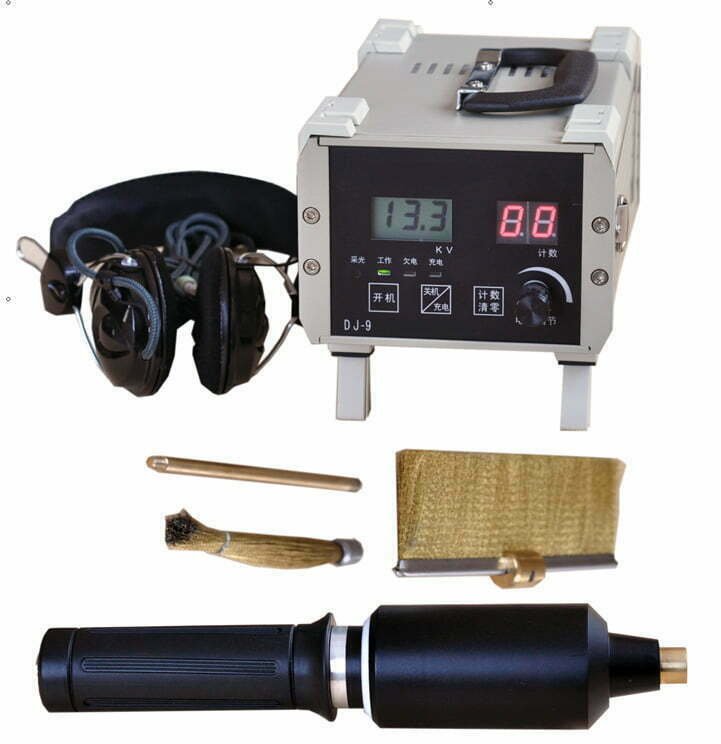

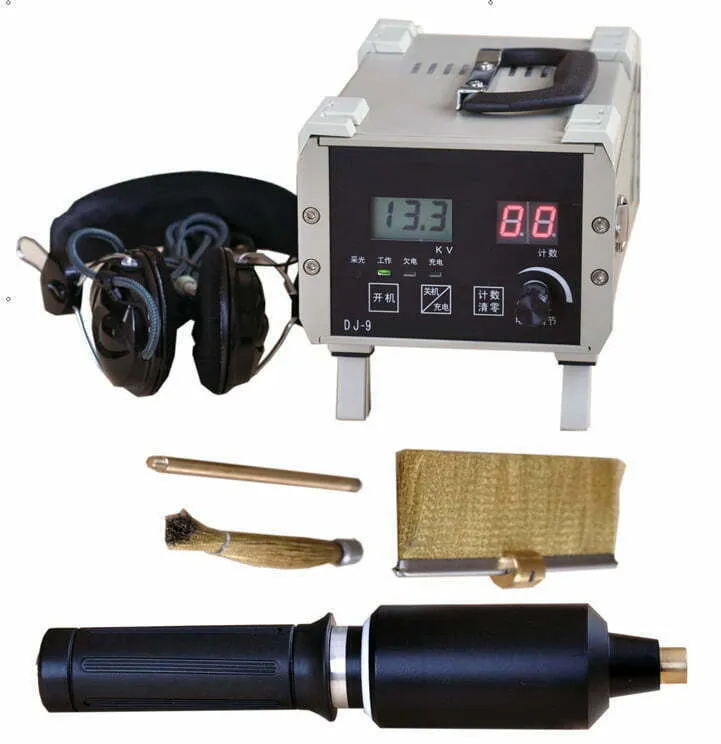

● DJ-9: displays leakage points of antisepsis coating on two digits
| Standard Delivery | Optional Accessory | |
| Main unit | 1 | Arc-shaped brush |
| High voltage detector | 1 | Circle probe |
| Brush probe | 2 | |
| Brace rod | 1 | |
| Earth lead | 1 | |
| Earphone | 1 | |
| Power charger | 1 | |
| Fuse | 2 | |
| Shoulder strap | 1 | |
| TIME certificate | 1 | |
| Warranty card | 1 | |
| Instruction manual | 1 |
Technical Specifications
|
Model |
DJ-6(A) |
DJ-6(B) |
DJ-9 |
|
Thickness |
0.03-1mm |
0.05-10mm |
|
|
Output voltage |
0.6KV-8KV |
0.6KV-35KV (adjustable) |
|
|
DC voltage |
12V |
||
|
Consumed power |
6W |
||
|
Alarm |
Both earphone and buzzer |
||
|
Display |
Three digit LCD, fully touch screen |
||
|
Dimension (mm) |
220x130x88 |
||
