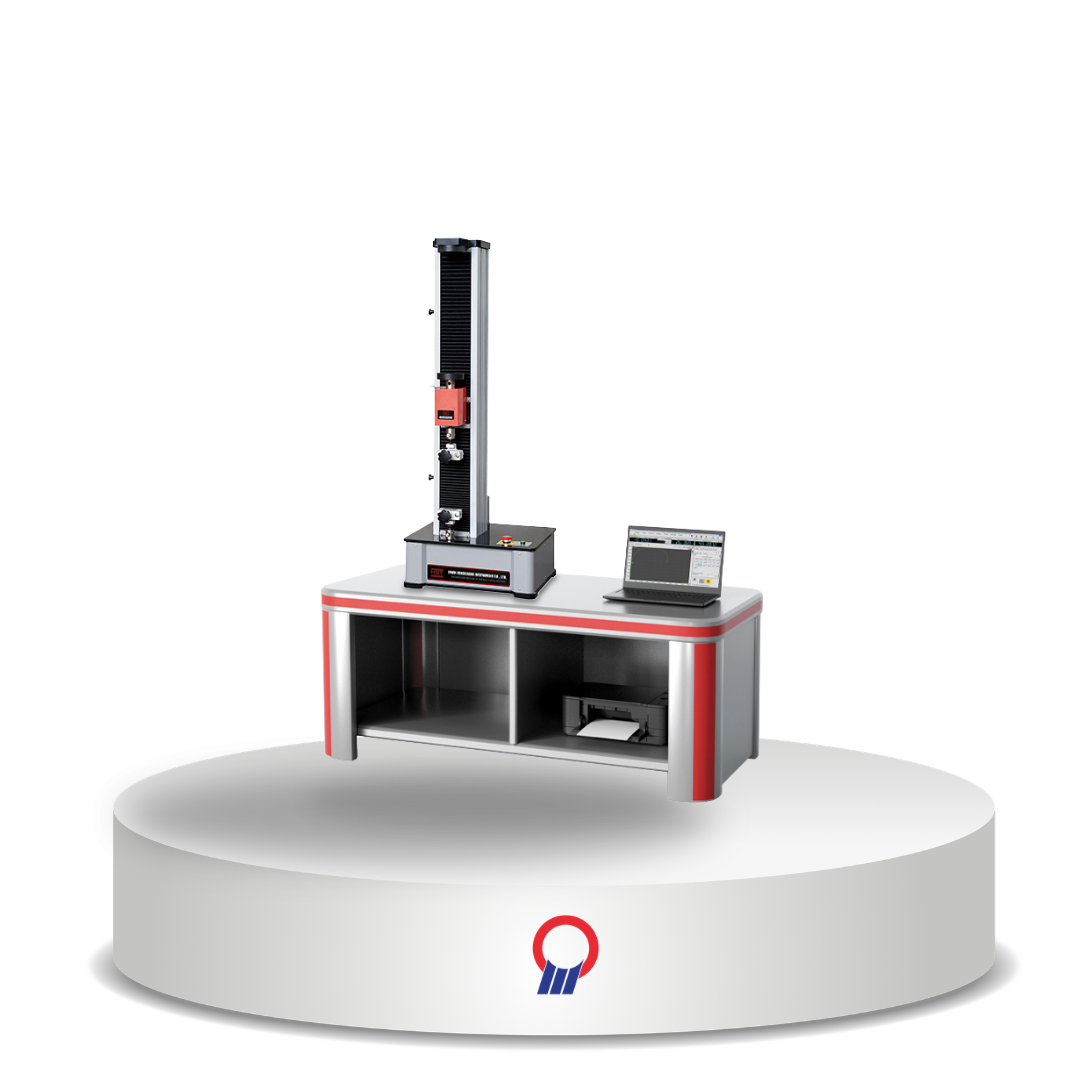

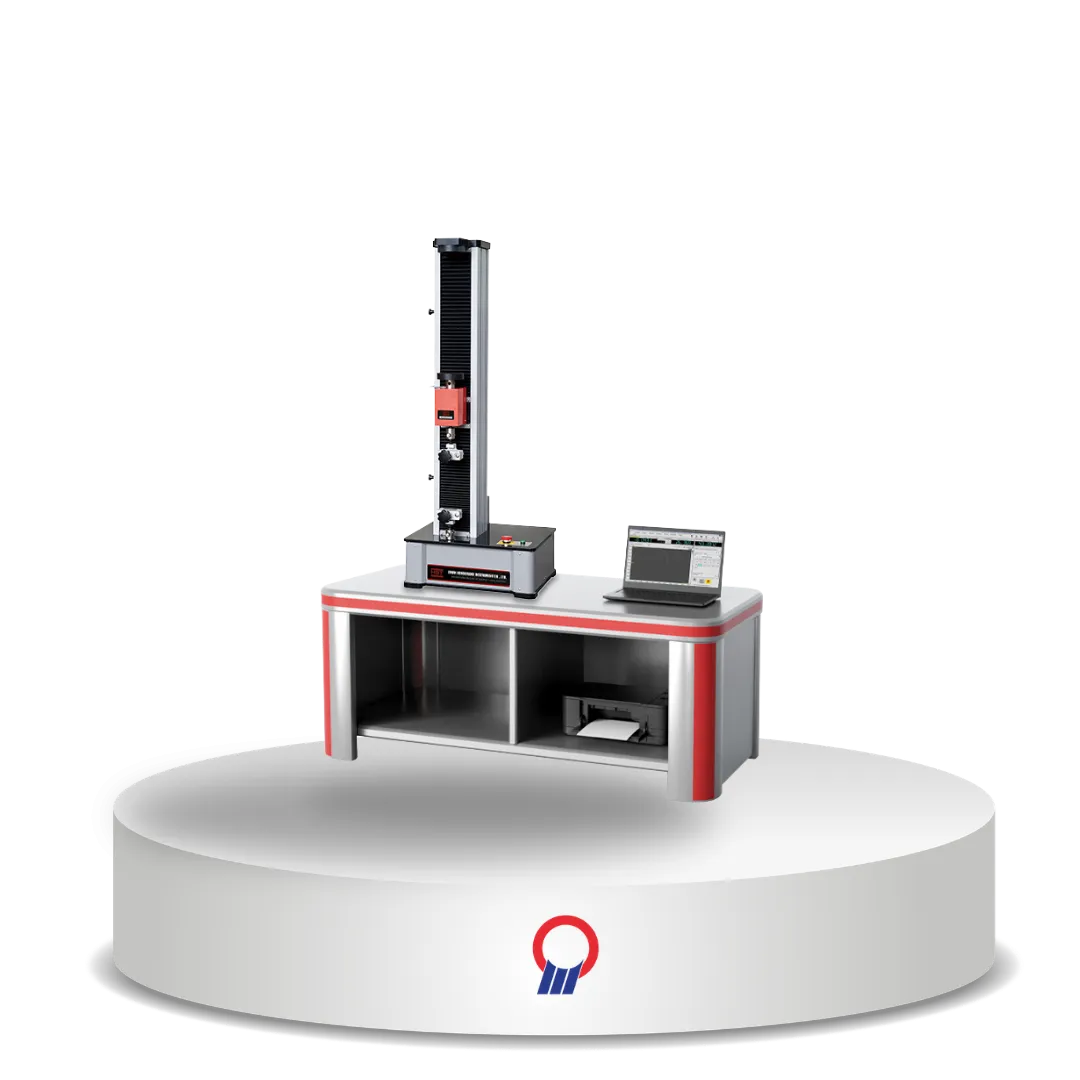

Seri WDW electromechanical testing machine digunakan untuk pengujian tarik, tekan, lentur, geser, sobek, dan peel pada berbagai material. Mesin ini dapat dilengkapi aksesori seperti grip, fixture, compression frame, thermal cabinet, dan extensometer, sehingga cocok untuk pengujian material logam maupun non-logam. Rangka mesin dirancang kokoh dan kaku untuk memastikan hasil pengujian yang akurat.
| Specification | HST WDW-10E-I | HST WDW-20E-I |
|---|---|---|
| Load Capacity | 10 kN | 20 kN |
| Calibration Standard | Class 0.5 according to ISO 7500-1 – Meets ASTM E-4 | |
| Testing Load Accuracy | ±0.5% | |
| Testing Load Range | 0.4% – 100% FS | |
| Load Resolution | 1 / 500,000 FS | |
| Deformation Measuring Range | 0.2% – 100% FS | |
| Deformation Accuracy | ≤ ±0.5% | |
| Deformation Resolution | 1 / ±500000 FS of the max deformation | |
| Position Accuracy | Within ±0.5% of the value | |
| Displacement Resolution | 0.01 mm | |
| Constant Force Control Range | 0.001% – 5% FS/s | |
| Crosshead Travel | 800 mm | |
| Max. Tensile Testing Space | 600 mm | |
| Max. Compression Testing Space | 600 mm | |
| Compression Platen | Φ100 mm | |
| Power Supply | AC220V ±10%, 50Hz / 60Hz | |
| Overall Dimensions (L × W × H) | 520 × 400 × 1340 mm | |
| Weight | 110 kg | |
