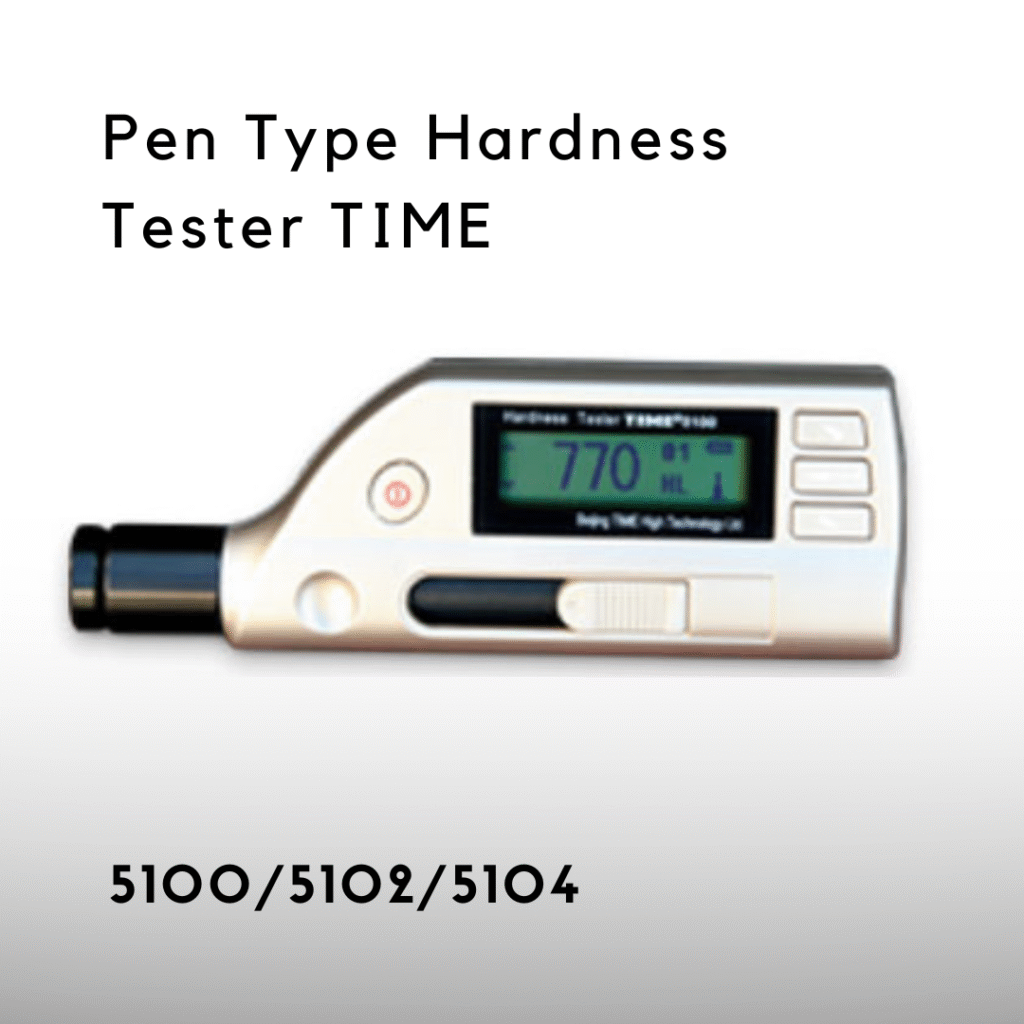

Pen Type Hardness Tester TIME®5100/5102/5104 is economically priced and suitable for quick hardness testing on metal materials, especially on-site hard testing of large, non-transportable components.
● USB interface to connect the PC, assisted by Software Dataview TH51X (especially for TH51X series Hardness Test) with both online measurement and offline data analysis mode：curve chart, data sheet, setting of tolerance limit and data report are available.
● Connected to Printer by RS 232 and test values can be printed directly
● Measuring Direction:Any direction 360°
● Automatic identification of impact test direction
● Memory of 270 data in 9 group
● Backlight for convenience in darkness
● Upper /lower limits setting
● AAA 1.5V battery, whose capacity shown in display
● Auto power off
● TIME®5100: integrated with D impact device for the majority of hardness testing requirements
● TIME®5102: integrated with C impact device for hardness testing on thin, light and surface hardened components
● TIME®5104: integrated with DL impact device for hardness testing of deep grooves and tooth surface
| Model | TIME ® 5100 | TIME ® 5102 | TIME ® 5104 |
| Impact device | D integrated | C integrated | DL integrated |
| Hardness scales | HLD, HB, HRC, HRB,HV, HS | HLC, HB, HRC, HRB, HV, HS | HLDL, HB, HRC, HRB,HV, HS |
| Accuracy | ±6HLD(760 ±30HLD) | ±12HLC | ±12HLD |
| Memory | 270 average readings in 9 group files | ||
| Output | RS232 to printer | ||
| Min. surface roughness of work piece | 1.6μm ( Ra) | 0.4μm ( Ra) | 1.6μm ( Ra) |
| Max. work piece hardness | 960HLD | 960HLC | 950HLDL |
| Min. radius of work piece (convex/concave) | Rmin = 50mm (with support ring Rmin=10mm) | Rmin=11mm (with support ring ) | Rmin = 10mm (with support ring Rmin=10mm) |
| Min. work piece weight | 2~5kg on stable support
0.05~2kg with compact coupling |
0.5~1.5kg on stable support
0.02~0.5kg with compact coupling |
2~5kg on stable support
0.05~2kg with compact coupling |
| Min. work piece thickness coupled | 5mm | 1mm | 5mm |
| Min. thickness of hardened layers | 0.8mm | 0.2mm | 0.8mm |
| Indentation depth | Impact devices data | ||
| Continuous working time | 8h (without backlight) | ||
| Power | AAA 1.5V batteries | ||
| Operating temperature | 0~40℃ | ||
| Dimensions (mm) | 155×55×25 | 160×60×25 | 215×60×25 |
| Weight (g) | 180 | ||
| Standard Delivery | Optional Accessory | |
| Main unit | 1 | Support rings |
| Test block HLD | 1 | Dataview Software |
| USB connecting cable | 1 | |
| Cleaning brush | 1 | |
| Battery AAA 1.5V | 2 | |
| TIME certificate | 1 | |
| Warranty card | 1 | |
| Instruction manual | 1 |
