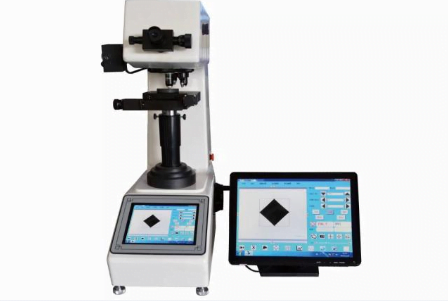

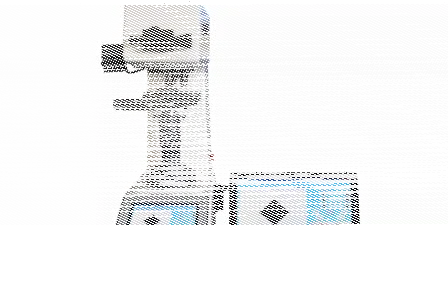

This instrument is a new generation of automatic Micro Vickers hardness tester. It adopts theintegrated design of hardness tester and panel computer; With Windows 7 operating system, it has all functions of computer. With CCD image acquisition system, it can show the indentation image directly on the touch screen and automatically get the Vickers hardness value. It takes over the old method of measuring the diagonal length by eyepiece, avoidsthe stimulation and visual fatigue of the light source of the eyepiece, and protects the eyesight of the operator. It is a major innovation of Micro Vickers hardness tester.
Features
● All the testing parameters can be selected on the panel computer. With touching screen, it operates quickly and conveniently and displays clearly and intuitively.
● With CCD image acquisition system, it shows the image clearly and gets the hardness value just by touching the screen.
● Automaticrecognition and shifting between the objective and the indenter.
● With the function of hardness scale conversion.
● The system has two languages: English and Chinese.
● With USB, VGA and LAN interfaces, the hardness measurement can be print out by USB interface.
● It can automatically save the measuring data, generate the hardness-depth curve and save as WORD or EXCEL document.
● With motorized X-Y test table, automatic focusing and automatic measuring, it realizes the fully automation of Micro Vickers hardness testing.
Application Range
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Packing List
| Name |
Qty |
Name |
Qty |
| Instrument Main Body |
1 set |
10× Eyepiece |
1 pc |
| 10×、40× Objective |
each 1 pc |
Diamond Micro Vickers Indenter |
1 pc |
| External Touch Screen |
1 set |
Weight Axis |
1 pc |
| Weights |
6 pcs |
Thin Specimen Test Table |
1 pc |
| Motorized Cross Test Table |
1 pc |
Filament Clamping Test Table |
1 pc |
| Flat Clamping Test Table |
1 pc |
Level |
1 pc |
| Horizontal Regulating Screw |
4 pcs |
Halogen Lamp 12V、15~20W |
1 pc |
| Fuse 1A |
2 pcs |
Screw Driver |
2 pc |
| Power Cable |
1 pc |
Hardness Block 700~800 HV1 |
1 pc |
| Hardness Block 400~500 HV0.2 |
1 pc |
U disk |
1 pc |
| Anti-dust Cover |
1 pc |
Touch Pen |
1 pc |
| Touch Screen Remote Control |
1 pc |
Mouse |
1 pc |
| Usage Instruction Manual |
1 copy |
|
Technical Specifications
|
Model |
TMVT-1AT |
|
|
Test Force |
gf |
10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf |
|
N |
0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N |
|
|
Test Range |
1HV~2967HV |
|
|
Test Mode |
HV/HK |
|
|
Loading Method |
Automatic (Loading/Dwell/Unloading) |
|
|
Shifting between Objective and Indenter |
Automatic Shifting |
|
|
Computer |
CPU: Intel I5，Memory: 2G，SSD: 64G |
|
|
CCD Pixel |
1.30 Million |
|
|
Conversion Scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
|
|
Hardness Reading |
Indentation Displaying and Automatic Measuring on Touch Screen |
|
|
Data Output |
WORD or EXCEL Report with Curve Chart |
|
|
Objective |
10× (Observe)，40× (Measure) |
|
|
Min. Measuring Unit |
0.025μm |
|
|
Dwell Time |
0~60s |
|
|
Light Source |
Halogen Lamp |
|
|
Motorized X-Y Test Table |
Size: 110×110mm; Travel: 50×50mm; Resolution: 0.002mm |
|
|
Max. Height of Specimen |
185mm |
|
|
Throat |
130mm |
|
|
Power Supply |
AC220V，50Hz |
|
|
Execute Standard |
ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2 |
|
|
Dimension |
560×335×675mm，Packing Dimension: 650×380×960mm |
|
|
Weight |
Net Weight: 52kg，Gross Weight: 67kg |
|
