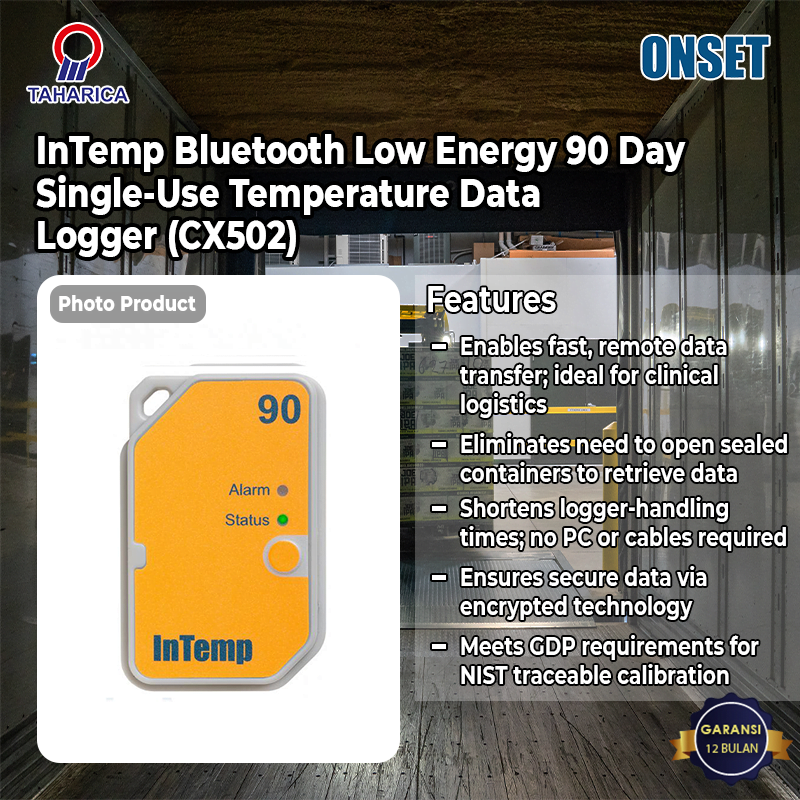

InTemp Bluetooth Low Energy 90 Day Single-Use Temperature Data Logger (CX502)

InTemp Bluetooth Low Energy 90 Day Single-Use Temperature Data Logger (CX502) - Image 3

InTemp Bluetooth Low Energy 90 Day Single-Use Temperature Data Logger (CX502) - Image 4

Suhu, Temperature, Alat Uji, Data Logger, Alat Pengukur Suhu, Transportasi, Low Energy, Application, Cold Chain,

Deskripsi :

Data Logger InTemp CX502 Bluetooth® Hemat Energi adalah pencatat sekali pakai yang merekam data suhu hingga 90 hari. Didesain untuk pengiriman Cold Chain, CRT, dan Frozen, CX502 sangat ideal untuk pengiriman kontainer laut, jarak jauh, dan paket.

Dengan menggunakan aplikasi InTemp pada perangkat seluler Anda, Anda dapat dengan mudah mengkonfigurasi CX502 dengan salah satu dari beberapa konfigurasi preset, atau mengatur konfigurasi kustom. Logger memiliki alarm built-in untuk mengingatkan Anda tentang tamasya. Dan laporan pencatat dapat diunduh dengan cepat ke ponsel atau tablet Anda dan diunggah ke akun InTempConnect®, tempat Anda dapat menganalisis dan mengekspor data sesuai kebutuhan.

Dengan CX Gateway opsional, Anda bisa mendapatkan pemberitahuan jarak jauh tentang perjalanan suhu dan secara otomatis mengunduh data dari penebang dalam jangkauan perangkat. Pelajari lebih lanjut tentang CX Gateway di sini.

Sertifikat Kalibrasi 3 Poin, berlaku selama satu tahun sejak tanggal pembelian, memberikan jaminan bahwa data dapat dipercaya saat membuat keputusan disposisi produk yang penting.

Highlighted Features

Integrates with mobile and cloud platforms for a 21CFR Part 11 compliant solution
Enables fast, remote data transfer; ideal for clinical logistics
Eliminates need to open sealed containers to retrieve data
Real-time alerts and automatic data downloads with optional CX Gateway device
Shortens logger-handling times; no PC or cables required
Ensures secure data via encrypted technology
Meets GDP requirements for NIST traceable calibration

In what environment does this data logger operate?

This data logger operates in an cold chain environment.

Highlighted Features:

Integrates with mobile and cloud platforms for a 21CFR Part 11 compliant solution
Enables fast, remote data transfer; ideal for clinical logistics
Eliminates need to open sealed containers to retrieve data
Real-time alerts and automatic data downloads with optional CX Gateway device
Shortens logger-handling times; no PC or cables required
Ensures secure data via encrypted technology
Meets GDP requirements for NIST traceable calibration

To see the full specifications for this product, please see our product manual found under the documentation tab if available.

Logger
Logger Operating Range	-30° to 70°C (-22° to 158°F)
Radio Power	1 mW (0 dBm)
Transmission Range	Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard	Bluetooth Low Energy (Bluetooth Smart)
Logging Rate	1 second to 18 hours
Battery	CR2032 (CX501) or CR2450 (CX502 and CX503) 3V lithium, not replaceable. Battery for CX501 and CX502 lasts for duration specified when logger is used within the 1-year shelf life. Battery life for the CX503 model is 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive downloads, and paging may impact battery life.
Type	Single Use
Duration	90 Days
Shelf Life	Up to 1 year
Memory	14,000 measurements
Full Memory Download Time	Approximately 30 seconds; may take longer the farther the device is from the logger
Dimensions	6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches)
Weight	25.5 g (0.90 oz)
Environmental Rating	IP67
	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).

Temperature Sensor
Sensor Range	-30° to 70°C (-22° to 158°F)
Accuracy	±1.0°C from -30° to -5°C (±1.8°F from -22° to 23°F) ±0.5°C from -5° to 50°C (±0.9°F from 23° to 122°F) ±1.0°C from 50° to 70°C (±1.8°F from 122° to 158°F)
Resolution	0.04°C (0.072°F)
