Alat Uji, Suhu, Vaksin, Data Logger, Alat Pengukur Suhu Vaksin, Mobile, Bluetooth

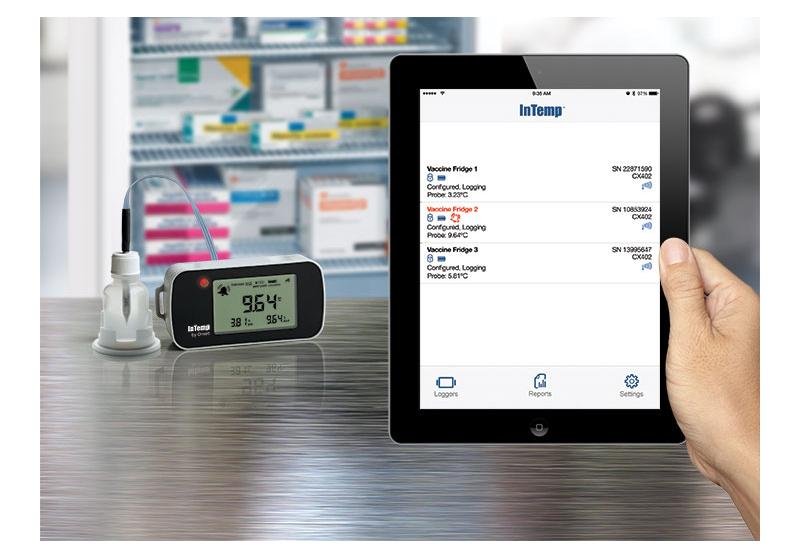

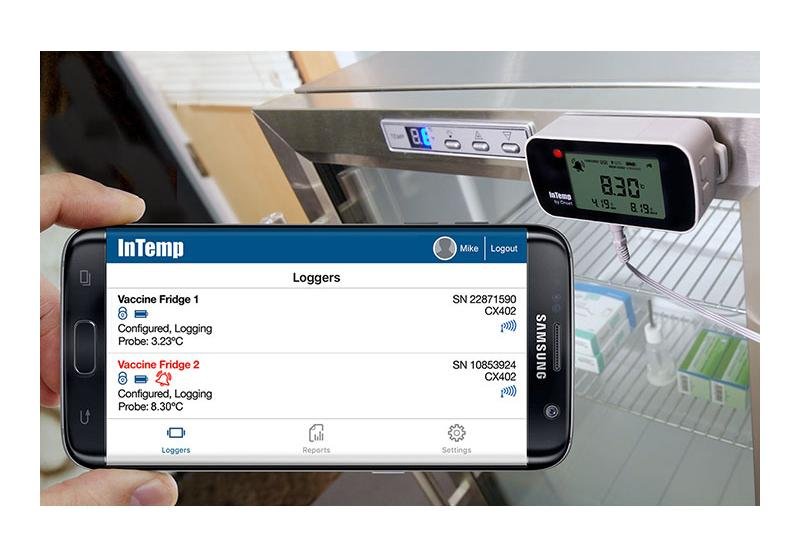

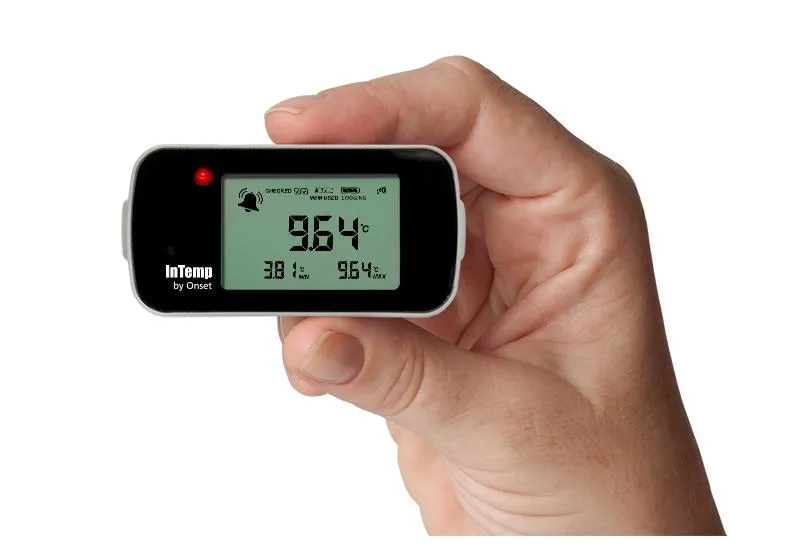

Data Logger InTemp ® CX402-TXXX (dengan Botol Glikol) memantau suhu di lemari es, freezer, dan lingkungan yang dikontrol suhu lainnya untuk memenuhi persyaratan PDB global. Para penebang berkomunikasi secara nirkabel melalui Bluetooth Low Energy ke perangkat seluler. Dengan menggunakan aplikasi InTemp, Anda dapat dengan mudah melihat data, memeriksa status pencatat, mengatur alarm, dan membuat serta membagikan laporan PDF yang aman untuk pelaporan yang efisien dan kepatuhan terhadap peraturan. Semua pencatat memiliki fitur layar LCD built-in untuk melihat suhu min dan maks saat ini dan harian, kemampuan alarm audio dan visual canggih untuk pemberitahuan perjalanan suhu, sensor internal untuk pemantauan suhu sekitar, dan Sertifikasi Kalibrasi NIST titik tunggal untuk keduanya tubuh logger dan probe.
Dengan CX Gateway opsional, Anda bisa mendapatkan pemberitahuan jarak jauh tentang perjalanan suhu dan secara otomatis mengunduh data dari penebang dalam jangkauan perangkat. Pelajari lebih lanjut tentang CX Gateway di sini.
Model tersedia dengan probe suhu eksternal 2- atau 4 meter yang dipasang ke botol Glikol yang digunakan untuk mengisolasi probe dan menunda waktu respons termal.
|
Logger |
|
|
Radio Power |
1 mW (0 dBm) |
|
Transmission Range |
Approximately 30.5 m (100 ft) line-of-sight |
|
Wireless Data Standard |
Bluetooth Low Energy (Bluetooth Smart) |
|
Logger Operating Range |
-30° to 70°C (-22° to 158°F), 0 to 95% RH (non-condensing) |
|
Logging Rate |
1 second to 18 hours |
|
Time Accuracy |
±1 minute per month at 25°C (77°F) |
|
Battery Type |

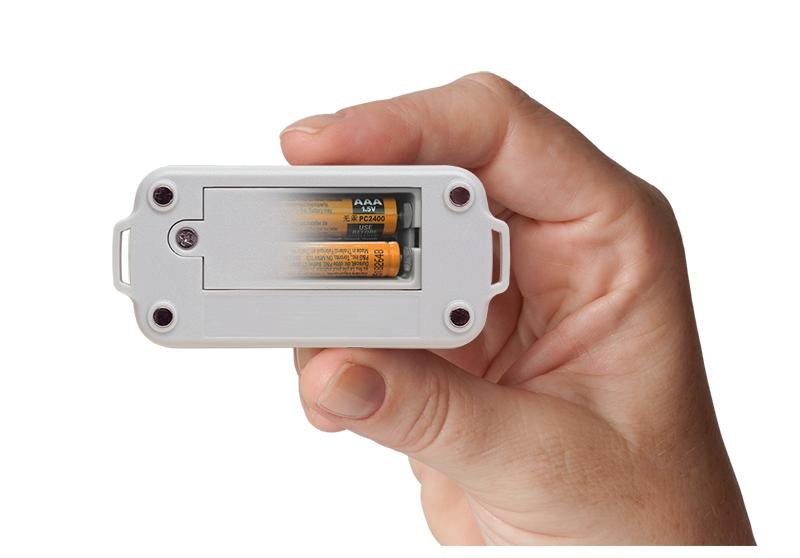

Two AAA 1.5 V alkaline or lithium batteries, user replaceable |
|
Battery Life |
1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive report generation, numerous audible alarms, and paging all impact battery life. |
|
Memory |
128 KB (84,650 measurements, maximum) |
|
Full Memory Download Time |
Approximately 60 seconds; may take longer the farther the device is from the logger |
|
LCD |
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
|
Dimensions |
9.4 x 4.5 x 2.59 cm (3.7 x 1.77 x 1.02 inches) |
|
Weight |
90.2 g (3.18 oz) |
|
Environmental Rating |
IP54 |
|
CE |
The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). |
|
External Temperature Probe |
|
|
Range |
-40° to 100°C (-40° to 212°F) |
|
Accuracy |
±0.5°C from -15° to 80°C (±0.9°F from 5° to 176°F) |
|
Resolution |
0.024°C at 25°C (0.04°F at 77°F) |
|
Drift |
<0.1°C (0.18°F) per year |
|
Response Time |
With 5 mL bottle: 10 minutes typical to 90% in air moving 1 m/s |
|
Cable Length |
2 or 4 meter (6.56 or 13.12 feet) flat ribbon cable |
|
NIST Calibration |
Single-point NIST calibration, probe and logger body |
|
Probe Dimensions |
Food-grade stainless steel probe with pointed tip, 53.34 mm (2.1 inches) long, 3.18 mm (0.125 inches) diameter |
|
Ambient Temperature Sensor |
|
|
Range |
-30° to 70°C (-22° to 158°F) |
|
Accuracy |
±0.5°C from -15° to 70°C (±0.9°F from 5° to 158°F) |
|
Resolution |
0.024°C at 25°C (0.04°F at 77°F) |
|
Drift |
<0.1°C (0.18°F) per year |
|
Response Time |
15 minutes typical to 90% in air moving 1 m/s |
