InTemp Cryogenic Multiple Use Data Logger (CX703x)

InTemp Cryogenic Multiple Use Data Logger (CX703x) - Image 3

Alat Uji, Suhu, Vaksin, Data Logger, Alat Pengukur Suhu Vaksin, Mobile, Bluetooth

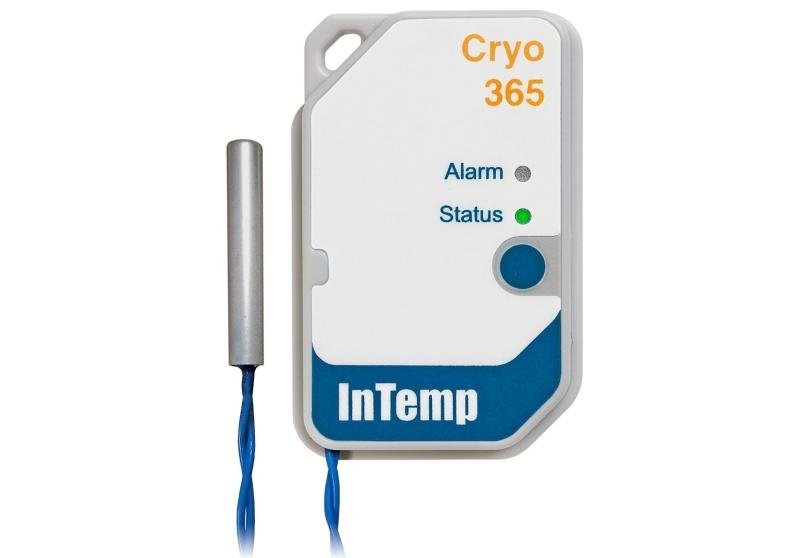

Data Logger Cryogenic InTemp CX703 adalah pencatat penggunaan ganda berkemampuan Bluetooth Low Energy (BLE) berbiaya rendah yang merekam data suhu hingga 365 hari. Probe built-in 1,5m CX703 mengukur suhu serendah -200 ° C (-328 ° F) dan termasuk selubung pelindung untuk mencegah kabel terpotong secara tidak sengaja.

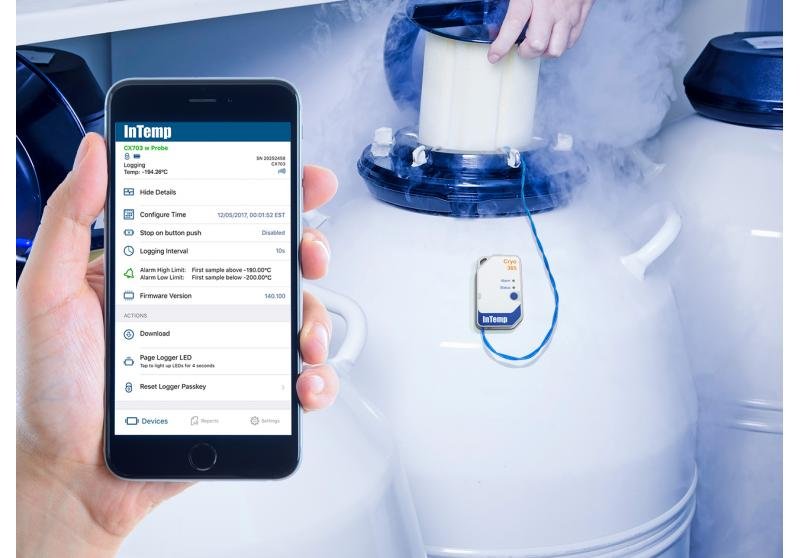

Dengan menggunakan aplikasi InTemp® pada perangkat seluler Anda, Anda dapat dengan mudah mengkonfigurasi CX703 dengan salah satu dari beberapa konfigurasi prasetel, atau mengatur konfigurasi khusus. Logger memiliki alarm built-in untuk mengingatkan Anda tentang tamasya. Dan laporan pencatat dapat diunduh dengan cepat ke ponsel atau tablet Anda dan diunggah ke akun InTempConnect®, tempat Anda dapat menganalisis dan mengekspor data sesuai kebutuhan.

Dengan CX Gateway opsional, Anda bisa mendapatkan pemberitahuan real-time tentang perjalanan suhu dan secara otomatis mengunduh data dari penebang dalam jangkauan perangkat. Pelajari lebih lanjut tentang CX Gateway di sini

Highlighted Features:

Single-Point ILAC/ISO17025 NIST Certificate of Calibration, valid for one year from date of purchase (CX703 ONLY. CX703-UN is not NIST Calibrated; calibration can be performed by the user)
IATA Battery compliant
Record up to 14,000 data points
Anti-cut sheath
Integrates with mobile and cloud platforms for a 21CFR Part 11 compliant solution
Compact and lightweight – ideal for shipping pharmaceuticals
No need to open containers to access data
Ensures secure data via encrypted technology

Temperature Probe
Sensor Range	-200° to 50°C (-328° to 122°F); To ensure insulation integrity, avoid flexing the wire during exposure to temperatures below -100°C (-148°F)
Accuracy	±1.5°C from -95° to -40°C (±2.7°F from -139° to -40°F) ±1.0°C from -40° to -10°C (±1.8°F from -40° to 14°F) ±0.5°C from -10° to 50°C (±0.9°F from -14° to 122°F)
Resolution	0.013°C at 25°C (0.023°F at 77°F)
Drift	<0.1°C (0.18°F) per year
Response Time	1 minute 30 seconds typical to 90% in open air moving 1 m/s, unmounted
NIST Calibration	CX702 and CX703: Single-point NIST calibration, probe only CX703-UN: Calibration not included
Cable Length	1.5 m (4.92 ft)
Probe Dimensions	Food-grade stainless steel probe with blunt tip, 31.75 mm (1.25 inches) long, 4.78 mm (0.188 inches) diameter
Logger
Logger Operating Range	-30° to 50°C (-22° to 122°F)
Radio Power	1 mW (0 dBm)
Transmission Range	Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard	Bluetooth Low Energy (Bluetooth Smart)
Type	Multiple Use
Duration	Up to 1 year
Shelf Life	Up to 1 year
Logging Rate	1 second to 18 hours
Time Accuracy	±1 minute per month at 25°C (77°F)
Battery	CR2450 3V lithium, not replaceable. Battery for CX602 and CX702 models lasts for duration specified when logger is used within the 1-year shelf life. Battery life for the CX603 and CX703 models is 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive downloads, and paging may impact battery life.
Memory	16,000 measurements
Full Memory Download Time	Approximately 30 seconds; may take longer the farther the device is from the logger
Dimensions	6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches)
Weight	25.5 g (0.90 oz)
Environmental Rating	IP65
	The CE Marking identifies this product as complying with all relevant directives in the European Union (EU).
