InTemp Dry Ice Logger – Multiple Use Data Logger (CX603)

InTemp Dry Ice Logger - Multiple Use Data Logger (CX603)
InTemp Dry Ice Logger - Multiple Use Data Logger (CX603) - Image 2
InTemp Dry Ice Logger - Multiple Use Data Logger (CX603) - Image 3

Suhu, Temperature, Data Logger, Alat Pengukur Suhu, Transportasi, Low Energy, Application, Cold Chain

Deskripsi:

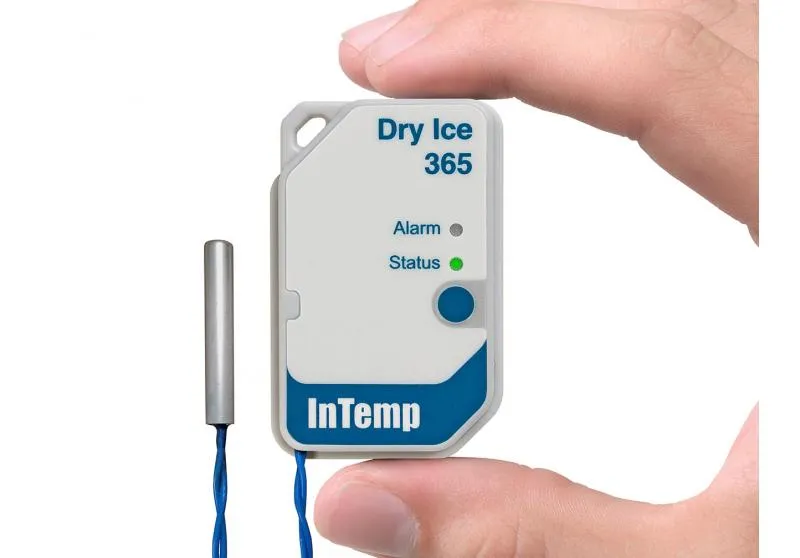

Data Logger InTemp CX603 Dry Ice adalah Data logger berkemampuan Bluetooth Low Energy (BLE) yang merekam data suhu hingga 365 hari. Probe built-in 1,5m CX603 mengukur suhu serendah -95 ° C (-139 ° F) dan mencakup selubung pelindung untuk mencegah kabel terpotong secara tidak sengaja, dan klip untuk pemasangan yang aman.

Dengan menggunakan aplikasi InTemp® pada perangkat seluler Anda, Anda dapat dengan mudah mengkonfigurasi CX603 dengan salah satu dari beberapa konfigurasi prasetel, atau mengatur konfigurasi khusus. Logger memiliki alarm built-in untuk mengingatkan Anda tentang tamasya. Dan laporan pencatat dapat diunduh dengan cepat ke ponsel atau tablet Anda dan diunggah ke akun InTempConnect®, tempat Anda dapat menganalisis dan mengekspor data sesuai kebutuhan.

Dengan CX Gateway opsional, Anda bisa mendapatkan pemberitahuan real-time tentang perjalanan suhu dan secara otomatis mengunduh data dari penebang dalam jangkauan perangkat. Pelajari lebih lanjut tentang CX Gateway di sini.

Highlighted Features

  • IATA Battery compliant
  • 3-Point NIST Certificate of Calibration, valid for one year from date of purchase
  • Anti-cut sheath
  • Integrates with mobile and cloud platforms for a 21CFR Part 11 compliant solution
  • Compact and lightweight – ideal for shipping pharmaceuticals
  • No need to open containers to access data
  • Ensures secure data via encrypted technology

In what environment does this data logger operate?

This data logger operates in an cold chain environment.

Highlighted Features:
  • IATA Battery compliant
  • 3-Point NIST Certificate of Calibration, valid for one year from date of purchase
  • Anti-cut sheath
  • Integrates with mobile and cloud platforms for a 21CFR Part 11 compliant solution
  • Compact and lightweight – ideal for shipping pharmaceuticals
  • No need to open containers to access data
  • Ensures secure data via encrypted technology
Temperature Probe
Sensor Range -95° to 50°C (-139° to 122°F)
Accuracy ±1.5°C from -95° to -40°C (±2.7°F from -139° to -40°F)
±1.0°C from -40° to -10°C (±1.8°F from -40° to 14°F)
±0.5°C from -10° to 50°C (±0.9°F from -14° to 122°F)
Resolution 0.013°C at 25°C (0.023°F at 77°F)
NIST Calibration Three-point NIST calibration, probe only
Cable Length 1.5 m (4.92 ft)
Probe Dimensions Food-grade stainless steel probe with blunt tip, 31.75 mm (1.25 inches) long, 4.78 mm (0.188 inches) diameter
Logger
Logger Operating Range -30° to 50°C (-22° to 122°F)
Radio Power 1 mW (0 dBm)
Transmission Range Approximately 30.5 m (100 ft) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Type Multiple use
Duration 365 days
Shelf Life Up to 1 year
Logging Rate 1 second to 18 hours
Battery CR2450 3V lithium, not replaceable. Battery for CX602 and CX702 models lasts for duration specified when logger is used within the 1-year shelf life. Battery life for the CX603 and CX703 models is 1 year, typical with logging interval of 1 minute. Faster logging intervals, remaining connected with the InTemp app, excessive downloads, and paging may impact battery life.
Memory 16,000 measurements
Full Memory Download
Time		 Approximately 30 seconds; may take longer the farther the device is
from the logger
Dimensions 6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches)
Weight 25.5 g (0.90 oz)
Environmental Rating IP65
CE Compliant The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
