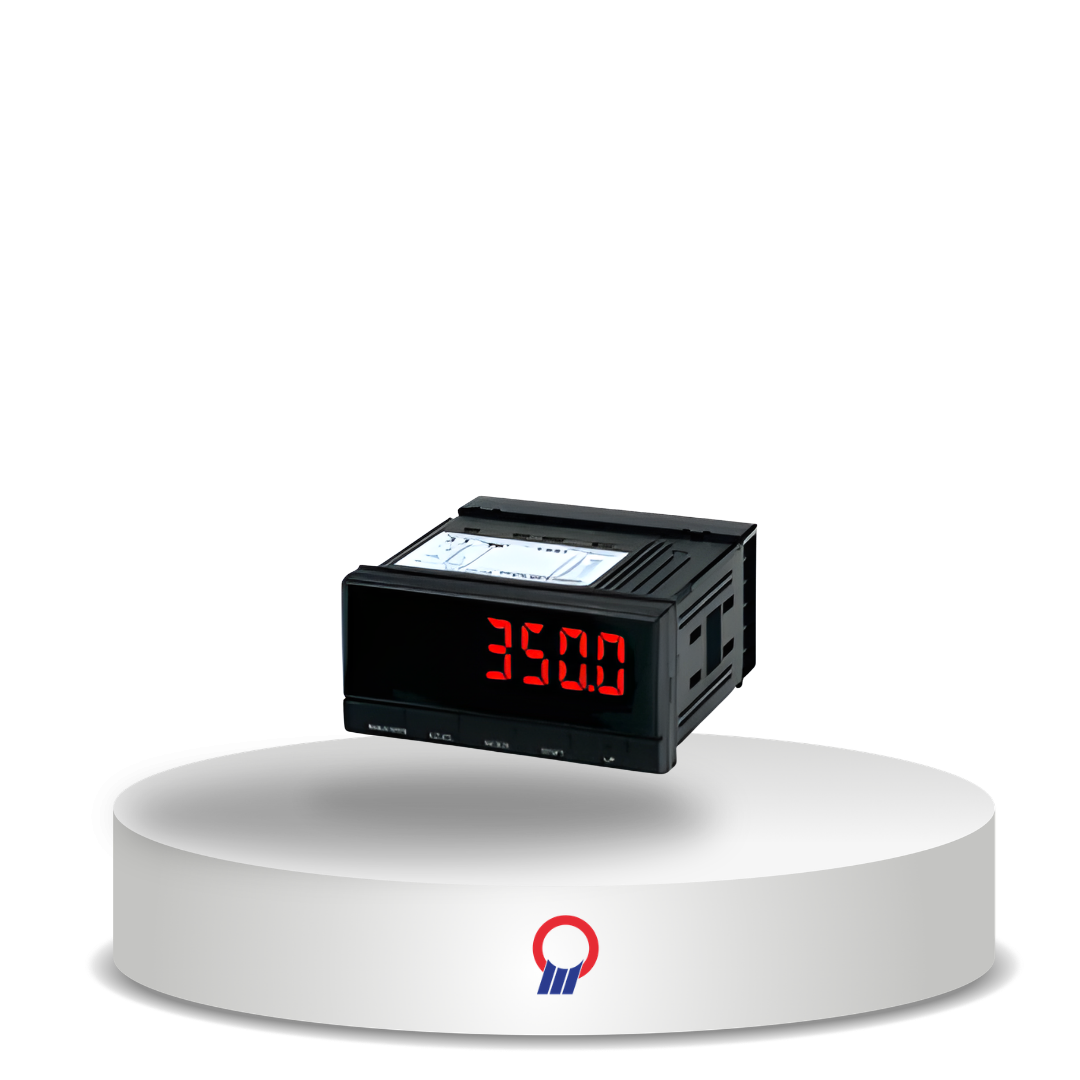

K3MA-L adalah pengukur suhu dengan tegangan suplai 100 hingga 240VAC atau 24VAC/VDC. Keduanya dilengkapi dengan tampilan berkualitas yang sama dan memiliki kedalaman yang sama yaitu 80mm.
| K3MA-L 100-240VAC, K3MA-L-C 100-240VAC | K3MA-L 24VAC/VDC, K3MA-L-C 24VAC/VDC | |
|---|---|---|
| Supply voltage | 100 to 240 VAC | 24 VAC (50/60 Hz), 24 VDC |
| Operating voltage range | 85% to 110% of the rated supply voltage | |
| Power consumption (under maximum load) |
6 VA max. | 4.5 VA max. (24 VAC) 4.5 W max. (24 VDC) |
| Insulation resistance | 20 MΩ min. (at 500 VDC) between external terminal and case. Insulation provided between inputs, outputs, and power supply. |
|
| Dielectric strength | 2,000 VAC for 1 min between external terminal and case. Insulation provided between inputs, outputs, and power supply. |
|
| Noise immunity | ±1,500 V on power supply terminals in normal or common mode. ±1 μs, or 100 ns for square-wave noise with 1 ns. |
±480 V on power supply terminals in normal mode. ±1,500 V in common mode. ±1 μs, or 100 ns for square-wave noise with 1 ns. |
| Vibration resistance | Vibration: 10 to 55 Hz, Acceleration: 50 m/s² 5 min each in X, Y, and Z directions for 10 sweeps. |
|
| Shock resistance | 150 m/s² (100 m/s² for relay contact outputs) 3 times each on 3 axes, 6 directions. | |
| Ambient temperature | Operating: –10°C to 55°C (with no condensation or icing) Storage: –25°C to 65°C (with no condensation or icing) |
|
| Ambient humidity | Operating: 25% to 85% (with no condensation) | |
| Approved safety standards | UL3121-1, conforms to EN61010-1 (Pollution degree 2/overvoltage category II) Conforms to VDE0106/P100 (finger protection) |
|
| EMC | (EMI)EN61326+A1Industry Emission Enclosure: CISPR 11 Group 1 class A: CISRP16-1/-2 Emission AC Mains: CISPR 11 Group 1 class A: CISRP16-1/-2 (EMS)EN61326+A1Industry Immunity ESD: EN61000-4-2: 4 kV contact discharge 8 kV air discharge Immunity RF-interference: EN61000-4-3: 10 V/m (amplitude-modulated, 80 MHz to 1 GHz) Electrical Fast Transient Noise: EN61000-4-4: 2 kV (power line) Immunity Burst Noise: 1 kV line to line (I/O signal line) Immunity Surge: EN61000-4-5: 1 kV (power line) 2 kV line to ground (power line) Immunity Conducted Disturbance: EN61000-4-6: 3 V (0.15 to 80 MHz) Immunity Voltage Dip/Interrupting: EN61000-4-11: 0.5 cycle, 0, 180°, 100% (rated voltage) |
|
| Weight | Approx. 200 g | |
