Application Range
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
Packing List
| Name |
Qty |
Name |
Qty |
| Instrument Main Body |
1 set |
Diamond Rockwell Indenter |
1 pc |
| ф1.588mmBall Indenter |
1 pc |
Middle Plane Test Table |
1 pc |
| Large Plane Test Table |
1 pc |
V-shaped Test Table |
1 pc |
| Hardness Block 60~70 HRC |
1 pc |
Hardness Block 20~30 HRC |
1 pc |
| Hardness Block 80~100 HRB |
1 pc |
Hardness Block 70~85 HR30T |
1 pc |
| Hardness Block 65~80 HR30N |
1 pc |
Weight 1, 2, 3, 4, 5 |
5 pcs |
| Power Cable |
1 pc |
Fuse 2A |
2 pcs |
| Level |
1 pc |
Horizontal Regulating Screw |
4 pcs |
| Inner Hexagon Spanner |
1 pc |
Spanner |
1 pc |
| Anti-dust Cover |
1 pc |
Usage Instruction Manual |
1 copy |
Technical Specifications
|

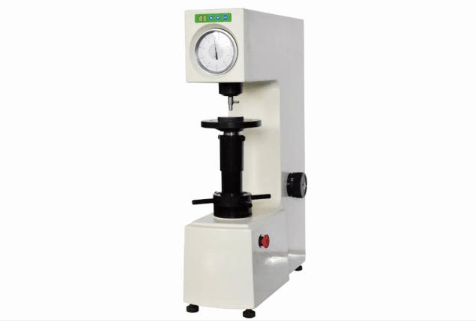

Model |
TIME6104 |
|
Initial Test Force |
3kgf (29.42N), 10kgf (98.07N) |
|
Total Test Force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
|
Indenter |
Diamond Rockwell Indenter, ф1.588mmBall Indenter |
|
Loading Method |
Automatic (Loading/Dwell/Unloading) |
|
Hardness Reading |
Dial |
|
Resolution |
0.5HR |
|
Dwell Time |
2~60s |
|
Max. Height of Specimen |
175mm |
|
Throat |
165mm |
|
Power Supply |
AC220V，50Hz |
|
Execute Standard |
ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2 |
|
Dimension |
520×215×700mm，Packing Dimension: 650×370×950mm |
|
Weight |
Net Weight: 80kg，Gross Weight: 100kg |
