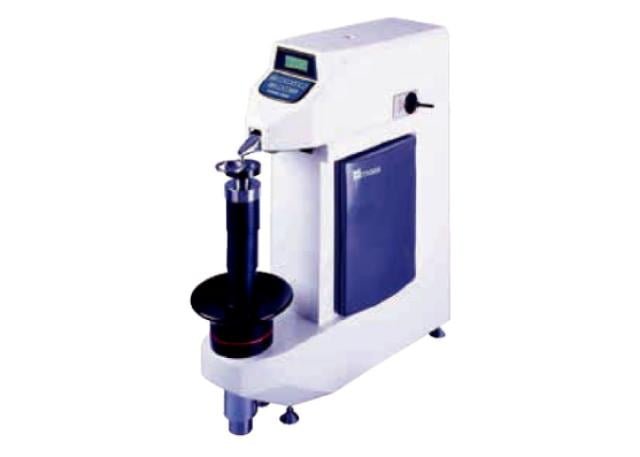

Rockwell method measures the permanent depth of indentation produced by a force. Press the indenter into the sample surface with the initial test force, and then apply the main test force. After remove the main test force, the depth of the indentation indicates the hardness. TH300/320 rockwell hardness tester is featured with protrudent indenter to test hard-to-reach places and automatic loading/unloading.
● High accuracy, wide measurement range, automatic loading and unloading of major load
● Test results display digitally, and can print automatically and connected to PC.
● High definition Matrix LCD display with backlight
● Optional indenters meet different test requirements: TH300 protruding indenter for ring and groove; TH320 for all kinds.
● Conversion of common hardness scales (HLD, HV, HB) & Conversion of Tensile Strength,up to 15 kinds of Rockwell hardness scales.
● Collect statistics includes values, mean value, Maximum, Minimum and Standard Deviation
● Round correction: cylinder and sphere surface
● Upper /lower limits pre-setting and sound alarm
● Comply with GB/T230.2, BS EN10109-2, ASTME-18, ISO6508.2 and other applicable standards.
● Automatic test process
● RS 232/USB data output
Typical application
● Researching institute
● National organization
● University
● Aerospace industry
● Automobile industry
● Steel industry
Specification
|
Model |
TH300 |
TH320 |
|
Hardness scales |
Rockwell A, B, C,D,E,F, |
Rockwell A,B,C,D,E,F,G,H,K,L,M,P,R,S,V |
|
Resolution |
0.1Rockwell unit |
|
|
Pre-load |
98.07N/10kgf |
98.07N/10kgf, 29.42N/3kgf |
|
Total load |
588.4N/60kgf, 980.7N/100kgf, 1471N/150kgf |
588.4N/60kgf, 980.7N/100kgf, |
|
Display |
Matrix backlight LCD |
|
|
Language |
English, French, Germany |
English |
|
Operation |
Menu selectable, Membrane keypad |
|
|
Test process |
Automatic |
|
|
Load duration |
2-50 seconds, can be set,dynamic displayed and stored |
|
|
Functions
|
Upper / lower hardness limits setting and alarming |
|
|
Data statistics : Ave., Max., Min., standard Deviation |
||
|
Convert tested values to HB, HV, HLD and δb (Tensile-strength) |
||
|
Curvature correction: cylinder and sphere surface |
||
|
Data output |
RS232 |
|
|
Tester standard |
ISO6508.2 , ASTM E-18 |
|
|
Testing space |
Vertical: 250mm (9.85〃) |
Vertical: 250mm (8.66〃) |
|
Work piece size |
External surface cylinder: Min.Ø3mm (0.120〃) |
|
|
Power supply |
220v/110v, 50Hz, 4A |
|
|
Dimensions (mm) |
715×225×790 |
720×240×815 |
|
Weight (kg) |
100 |
120 |
| Standard Delivery | Optional Accessory | |
| TH300 | TH320 | Mini-printer TA230 |
| Main unit | Main unit | Data communicating cable |
| Test block B | Test block A, B, C | Short diamond indenter |
| Test block C | Test block 15N | Flat diamond indenter |
| 120° cone diamond indenter | Test block 30N | Slim diamond indenter |
| 1/16″ (1.5875mm) ball indenter | Test block 30T | 1/8″(Ø3.175mm) indenter and spare ball |
| 1/16″ (1.5875mm) spare ball | 120° cone diamond indenter | 1/4″(Ø6.350mm) indenter and spare ball |
| Screw for indenter | 1/16″(1.5875mm)ball indenter | 1/2″(Ø12.70mm) indenter and spare ball |
| Round flat anvilØ70 | 1/16″ (1.5875mm) spare ball | Round flat anvil Ø225 |
| Large vee anvil | Screw for indenter | Round flat anvil Ø150 |
| Power supply cable | Round flat anvil | Small vee anvil |
| Instruction manual | Large vee anvil | Flat /vee anvil |
| Warranty card | Power supply cable | Assistant support |
| Instruction manual | Assistant joist | |
| Warranty card |
