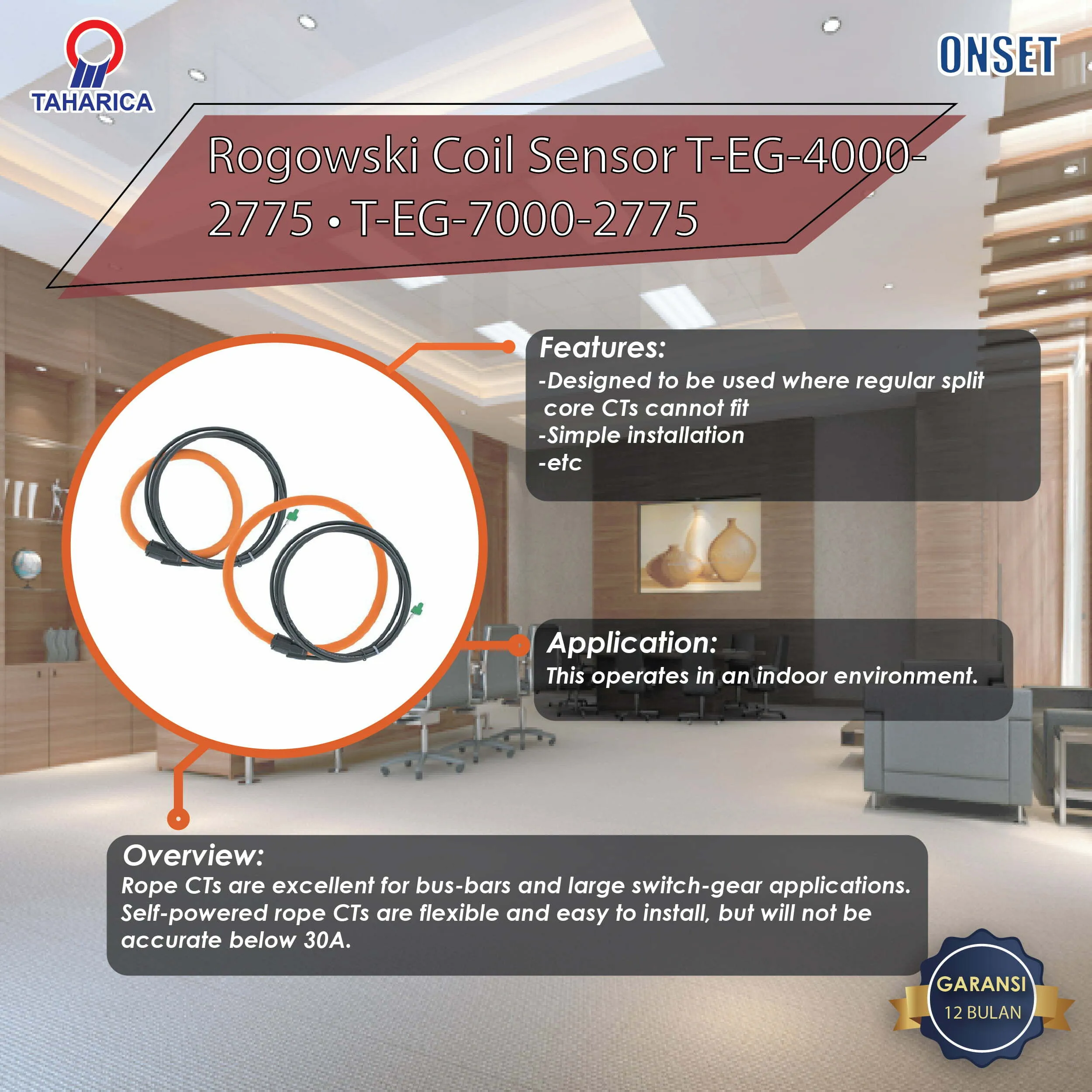

Rogowski Coil Sensor T-EG-4000-2775 • T-EG-7000-2775

Rogowski Coil Sensor T-EG-4000-2775 • T-EG-7000-2775

Jual Data Logger energi | Distributor Data Logger Hobo di Indonesia | Distributor Weather Station ( alat ukur cuaca )

Rope CTs are excellent for bus-bars and large switch-gear applications. Self-powered rope CTs are flexible and easy to install, but will not be accurate below 30A. Each CT includes the two-pin CT connector plug.

Technical Specifications

  • 333 mVrms at rated output
  • Accurate within 1% from 30A to stated current rating
  • 6′ twisted pair lead with CT connector
  • Note: 30A minimum current required at all times. No external integrator required

Highlighted Features

  • Designed to be used where regular split core CTs cannot fit
  • Simple installation

In what environment does this sensor operate?

This sensor operates in an indoor environment.

What measurements does this sensor support?

The T-EG-x000-2775 sensor supports the following measurements: AC Current and Amps (A)



The country of origin for this product is the United States.

Model Window Size Coil Length External Diameter Coil Diameter
T-EG-4000-2775 4.17” 15.75” 5.63” 15.5”
T-EG-7000-2775 7.01” 23.62” 8.13” 15.5”
