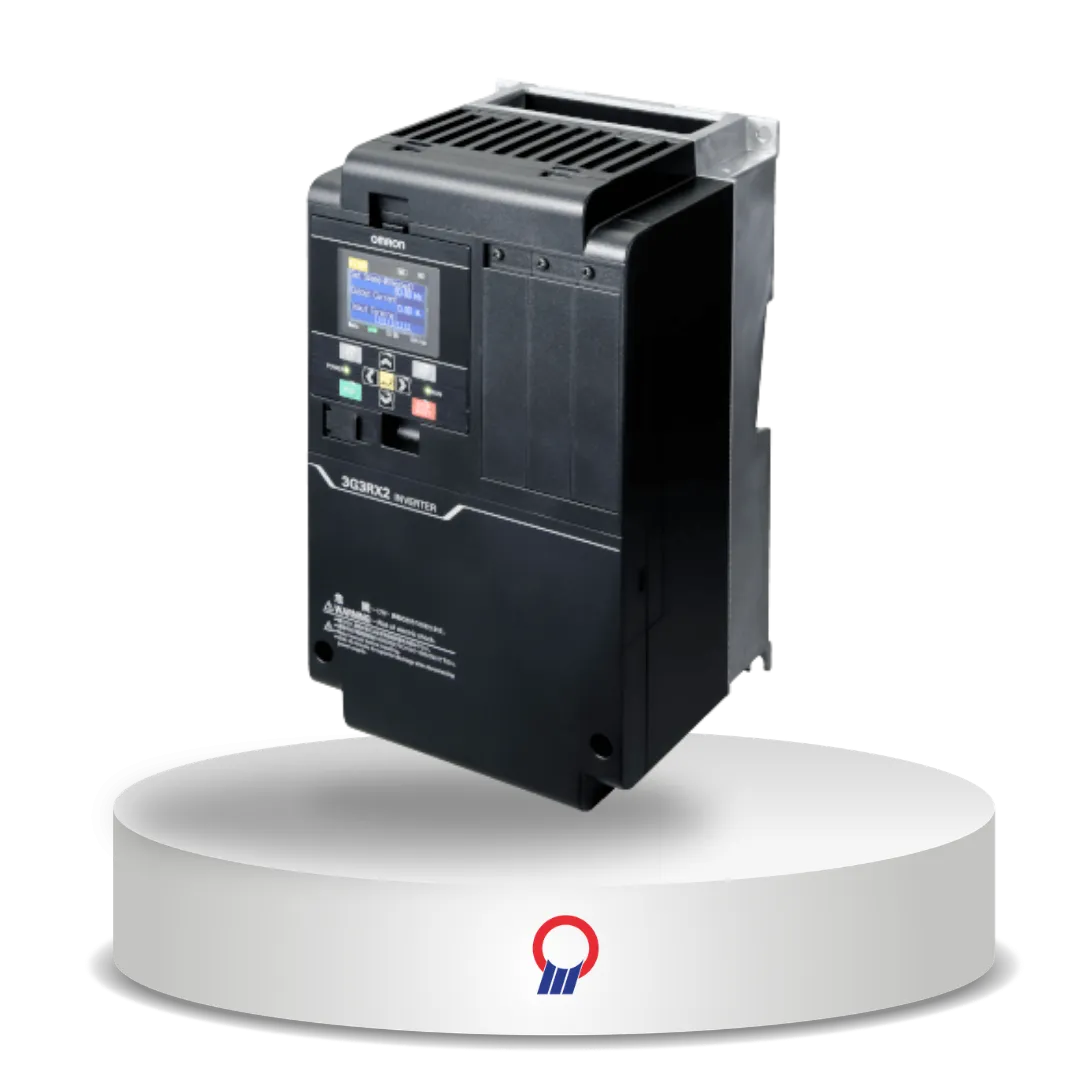

Inverter berkinerja tinggi ini menawarkan kemudahan penggunaan yang sama seperti model sebelumnya, dengan peningkatan fitur sehingga lebih efisien, lebih mudah, dan lebih cepat digunakan.
Torsi awal tinggi pada open loop: 200% pada 0,3 Hz, dan torsi penuh pada 0 Hz dalam closed loop
Mendukung sensor-less control dan vector closed-loop control
Triple rating: VLD 110%/1 menit, LD 120%/1 menit, dan ND 150%/1 menit
Dilengkapi EMC filter, logic programming, dan fungsi aplikasi bawaan
Mendukung fungsi positioning
Memiliki fungsi keselamatan STO (Safe Torque Off) terintegrasi dengan standar SIL3 / PLe / CAT 4
Opsi komunikasi: EtherCAT, PROFIBUS, PROFINET, dan Modbus TCP
Tersedia opsi solusi regeneratif
Memenuhi standar CE, CULus, dan RoHS
Kapasitas daya:
Kelas 200 V tiga fasa: 0,4 hingga 55 kW
Kelas 400 V tiga fasa: 0,75 hingga 132 kW
| Product | Drive supply voltage | Max. motor output at constant torque | Max. motor output at variable torque |
|---|---|---|---|
| 3G3RX2-A2004 | 230 V three phase | 0.4 kW | 0.75 kW |
| 3G3RX2-A2007 | 230 V three phase | 0.75 kW | 1.5 kW |
| 3G3RX2-A2015 | 230 V three phase | 1.5 kW | 2.2 kW |
| 3G3RX2-A2022 | 230 V three phase | 2.2 kW | 3.7 kW |
| 3G3RX2-A2037 | 230 V three phase | 3.7 kW | 5.5 kW |
| 3G3RX2-A2055 | 230 V three phase | 5.5 kW | 7.5 kW |
| 3G3RX2-A2075 | 230 V three phase | 7.5 kW | 11 kW |
| 3G3RX2-A2110 | 230 V three phase | 11 kW | 15 kW |
| 3G3RX2-A2150 | 230 V three phase | 15 kW | 18.5 kW |
| 3G3RX2-A2185 | 230 V three phase | 18.5 kW | 22 kW |
| 3G3RX2-A2220 | 230 V three phase | 22 kW | 30 kW |
| 3G3RX2-A2300 | 230 V three phase | 30 kW | 37 kW |
| 3G3RX2-A2370 | 230 V three phase | 37 kW | 45 kW |
| 3G3RX2-A2450 | 230 V three phase | 45 kW | 55 kW |
| 3G3RX2-A2550 | 230 V three phase | 55 kW | 75 kW |
| 3G3RX2-A4007 | 400 V three phase | 0.75 kW | 1.5 kW |
| 3G3RX2-A4015 | 400 V three phase | 1.5 kW | 2.2 kW |
| 3G3RX2-A4022 | 400 V three phase | 2.2 kW | 3.7 kW |
| 3G3RX2-A4037 | 400 V three phase | 3.7 kW | 5.5 kW |
| 3G3RX2-A4055 | 400 V three phase | 5.5 kW | 7.5 kW |
| 3G3RX2-A4075 | 400 V three phase | 7.5 kW | 11 kW |
| 3G3RX2-A4110 | 400 V three phase | 11 kW | 15 kW |
| 3G3RX2-A4150 | 400 V three phase | 15 kW | 18.5 kW |
| 3G3RX2-A4185 | 400 V three phase | 18.5 kW | 22 kW |
| 3G3RX2-A4220 | 400 V three phase | 22 kW | 30 kW |
| 3G3RX2-A4300 | 400 V three phase | 30 kW | 37 kW |
| 3G3RX2-A4370 | 400 V three phase | 37 kW | 45 kW |
| 3G3RX2-A4450 | 400 V three phase | 45 kW | 55 kW |
| 3G3RX2-A4550 | 400 V three phase | 55 kW | 75 kW |
| 3G3RX2-B4111K | 400 V three phase | 110 kW | 132 kW |
| 3G3RX2-B4131K | 400 V three phase | 132 kW | 160 kW |
| 3G3RX2-B4750 | 400 V three phase | 75 kW | 90 kW |
| 3G3RX2-B4900 | 400 V three phase | 90 kW | 110 kW |
