Specifications
Standard Ranges¹: 25, 50, 100, 150, 300 mm
Resolution²: 0.025% F.S.
Accuracy³: ±0.1% F.S.
Nonlinearity: <0.5% F.S.
Temperature Range¹: −20 °C to +80 °C

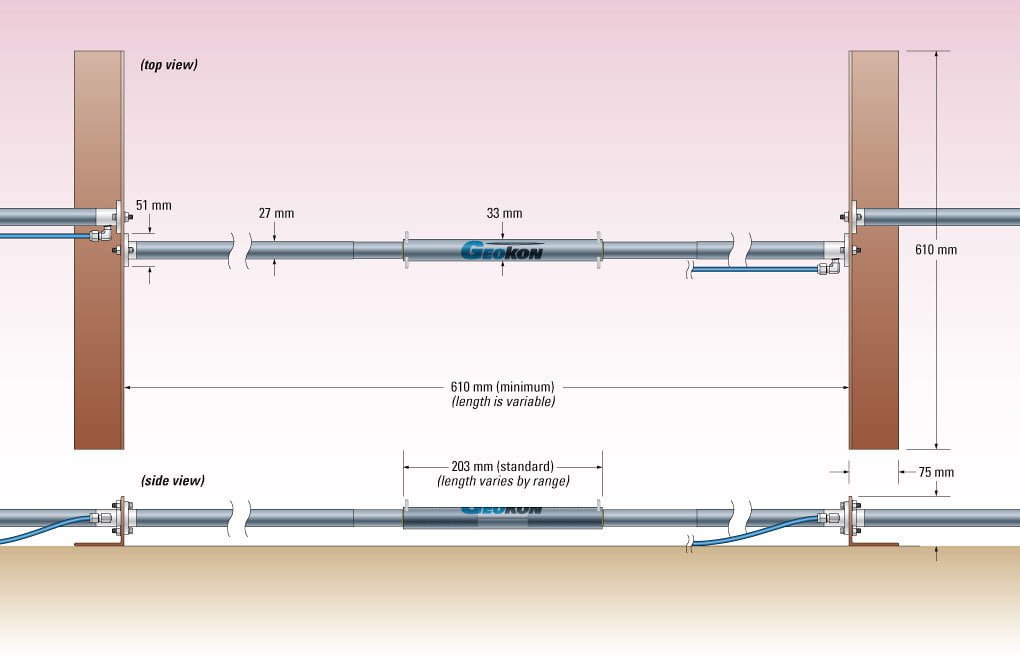

Minimum Gauge Length: 610 mm
Diameter: 27 mm (pipe), 33 mm (slip coupling), 51 mm (flange)
Flange (L × W × H): 610 × 75 × 75 mm
