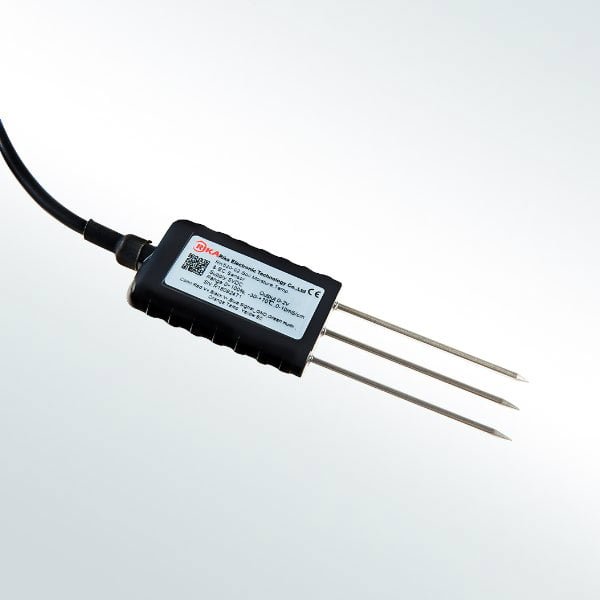

Soil Moisture, Temperature & EC Sensor RK520-02

Jual Alat Uji Pemantau Cuaca, Weather Station, AWS, Data Logger, Kecepatan Angin

RK520-02 Soil Moisture, Temperature & EC Sensor terintegrasi pengukuran kelembaban, suhu & EC. Probe stainless steel dimasukkan ke permukaan tanah atau profil tanah untuk menguji dengan cepat. Produk dengan kompensasi suhu untuk memastikan akurasi pengukuran. Probe dapat tertanam secara permanen di bawah tanah dan dihubungkan ke data logger untuk pengujian tanpa batas.

FITUR

* Presisi tinggi

* Respon cepat

* Cocok untuk tanah salin-alkali

* Dapat bekerja imersi jangka panjang

* Sifat tanah sedikit mempengaruhi

* Langsung ditanam di tanah

* Banyak digunakan

APLIKASI

* Irigasi pertanian

* Rumah Kaca

* Peternakan rumput

* Pemantauan lingkungan

* Konservasi air

* Pengujian tanah

Technical Specification

Item	Technical Specification
	Moisture	Temperature	EC
Range	0-100%(m 3 /m 3)	-30℃-+70℃	0-10mS/cm(0-2V), 0-20mS/cm(RS485)
Accuracy	±3%	±0.3°C	±2%FS
Output Signal	RS485, 0-2V
Resonse time	<1S
Supply	5VDC, 12-24VDC
Effective measurement area	With the center of the probe diameter is 70mm, high 70mm cylinder
Housing	ABS
Dimension	714516mm( probe:3* Ø3*70mm)
Operating Temperature	-40℃~ +80℃
Ingress Protection	IP68
Storage	10-60℃@20%-90%RH
Probe material	316L stainless steel

Dimension

Mounting

1.Testing medium should be with uniform intensity.

2. If surface soil water content measurement, the sensor should be insert into soil

vertically. Do not shake the sensor when inserted, otherwise the probe will be

blended;

3. If multi-layer soil water content measurement, the sensor should be buried in the

soil and parallel to the ground. Make sure the probe not be blended;

4. When removing sensors from the soil, please hold the sensor housing shell and

do not forcibly pull on the cable. Soil on probes should be brushed tightly.

5. Please keep the sensor in dry & clean conditions.

PARAMETER SELECTION TABLE

Remark	Series	Type	Supply	Output	Cable length
RK
	520
		02
			A			5V
			B			12-24V
			X			Other
				A		0-2V
				B		RS485
				X		Other
					2000	Units: mm(typ)
					…	units: mm

Example: RK520-02BA2000 Supply: 12-24V, Output:0-2V,Cable Length:2m.
