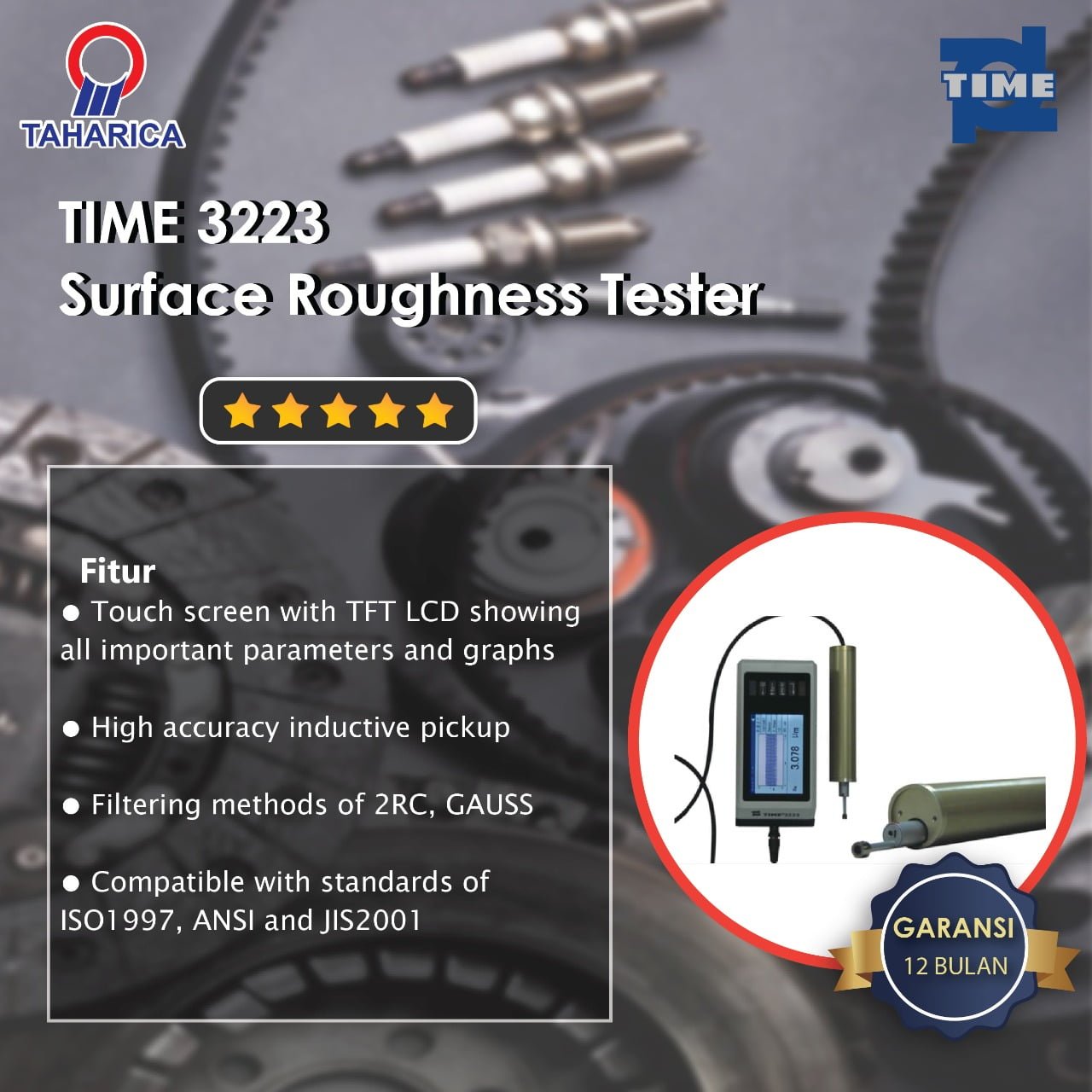

Features
●Separated design, mini driver easy and convenient to use
●Over dozen measurement parameters: Ra, Rp, Rv, Rt, Rz, Rq, Rsk, Rku, Rc, RPc, RSm, Rmr(c), tp, Rmr, Rpm, Rz1max, RzJIS, Rmax, Htp, Rδc, R△q, R△a, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Pa, Pp, Pv, Pt, Pz, Pq, Psk, Pku, Pc, PSm, Pmr(c), Pmr, Pz1max, PzJIS, Pδc,P△q
●Touch screen with TFT LCD showing all important parameters and graphs
●High accuracy inductive pickup
●Filtering methods of 2RC, GAUSS
●Compatible with standards of ISO1997, ANSI and JIS2001
●Connected to TIME TA230 printer to print all parameters and graphs
●RS232 interface and USB interface meeting more needs
●Auto or manual switch off
spesifikasi
|
Pick up |
Test principle |
Inductance type |
|
Measuring range |
400 μm |
|
|
Stylus tip radius |
5 μm |
|
|
Stylus tip material |
Diamond |
|
|
Measuring force |
4 mN |
|
|
Stylus tip angle |
90° |
|
|
Radius of skid curvature |
45 mm |
|
|
Maximum drive range |
19 mm |
|
|
Measuring range |
Measuring range |
Resolution |
|
±25 μm |
0.001 μm |
|
|
±200 μm |
0.008 μm |
|
|
Cut-off length |
0.08 m, 0.25 mm, 0.8 mm, 2.5 mm |
|
|
Evaluation length |
1L-5L (selectable) |
|
|
Accuracy |
±10% |
|
