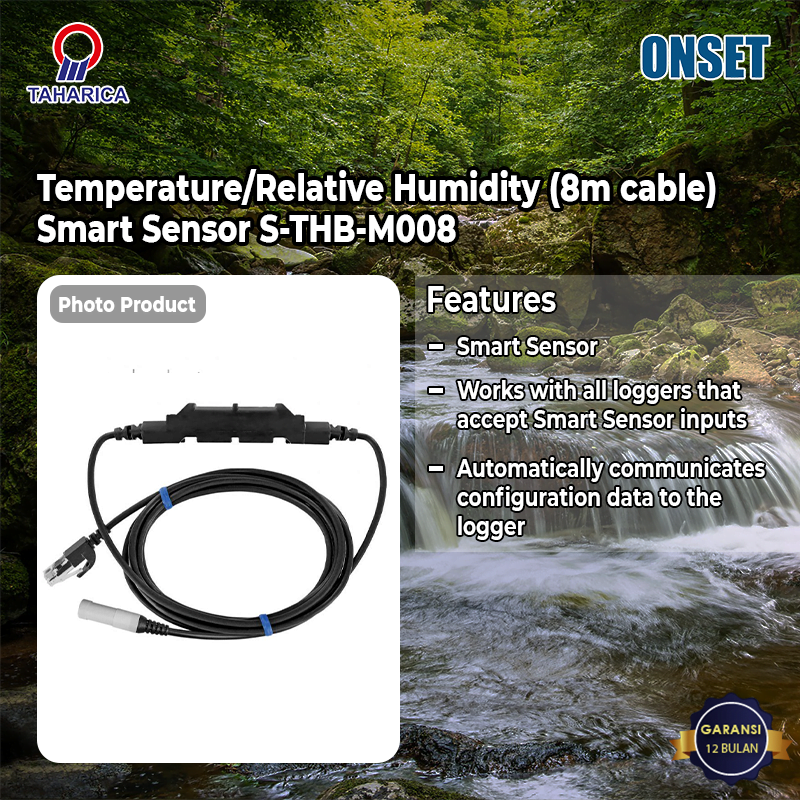

Temperature/Relative Humidity (8m cable) Smart Sensor S-THB-M008

Temperature/Relative Humidity (8m cable) Smart Sensor S-THB-M008

Jual Data Logger Suhu dan Kelembaban | Distributor Data Logger Hobo di Indonesia | Distributor Weather Station ( alat ukur cuaca )

Sensor Suhu / Relatif Kelembaban 12-bit dirancang untuk bekerja dengan semua data logger Onset yang menerima Sensor Cerdas. Semua parameter sensor disimpan di dalam Smart Sensor, yang secara otomatis mengkomunikasikan informasi data konfigurasi ke logger tanpa pemrograman, kalibrasi, atau pengaturan pengguna yang ekstensif.

Overview

The 12-bit Temperature/Relative Humidity Smart Sensor is designed to work with all Onset data loggers that accept Smart Sensors. All sensor parameters are stored inside the Smart Sensor, which automatically communicates configuration data information to the logger without any programming, calibration, or extensive user setup.

Highlighted Features

  • Smart Sensor
  • Works with all loggers that accept Smart Sensor inputs
  • Automatically communicates configuration data to the logger

In what environment does this sensor operate?

This sensor operates in indoor and outdoor environments.

What measurements does this sensor support?

The S-THB-M002 sensor supports the following measurements: Dew Point, Relative Humidity and Temperature



The country of origin for this product is the United States. To see the full specifications for this product, please see our product manual found under the documentation tab if available

Measurement Range
Temp: -40°C to 75°C (-40°F to 167°F)
RH: 0-100% RH at -40° to 75°C (-40° to 167°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1%



Accuracy
Temp: +/- 0.21°C from 0° to 50°C (0.38°F from 32° to 122°F)
RH: +/- 2.5% from 10% to 90% RH (typical), to a maximum of +/- 3.5% including hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical



Resolution
Temp: 0.02°C at 25°C (0.04°F at 77°F)
RH: 0.1% RHBits Per Sample
Temp: 12
RH: 10Drift
Temp: < 0.1°C (0.18°F) per year
RH: < 1% per year typical



Response Time (typical, to 90% of change)
Temp: 5 minutes in air moving 1 m/sec
RH: 5 minutes in air moving 1 m/sec with protective capOperating temperature range: -40°C to 75°C (-40°F to 167°F)
Environmental rating weatherproof: 0 to 100% RH intermittent condensing environments. For best results, the Temp/RH Smart Sensor should be mounted inside a protective enclosure, such as a solar radiation shield.
Housing PVC cable jacket with ASA styrene polymer RH sensor cap; modified hydrophobic polyethersulfone membrane
Sensor dimensions: 10 x 35 mm (0.39 x 1.39 in)
Weight: 110 g (3.88 oz)
Number of data channels: 2
Measurement averaging option: No
Cable lengths available: 2.5 m (8.2 ft)
Length of Smart Sensor network cable: 0.5 m (1.6 ft)
