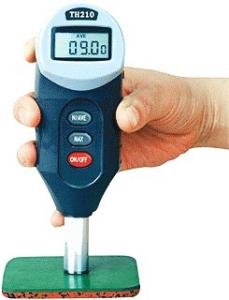

TH210 Shore Durometer

TH210 is a digital Shore D hardness tester. It has the advantage of precise measurement, being easy to operate, being convenient to carry, attractive appearance and so on. It is a digital durometer for hardness testing of hard rubber, plastics and such substances.

Feature

Digital durometer for Shore D hardness testing
Pocketsize model with integrated probe
Standards: DIN 53505, ASTM D 2240, ISO 7619, JIS K7215
RS232 data output
Operating stand optional
Bright & clear LCD display
300 hours continuous use with standard batteries
Automatically switch off
Battery low indication and alarm

Spesification

Test scale available	Shore D
Standards	DIN53505, ASTMD2240, ISO 7619, JIS K7215
Display	Hardness result, Average value, Max. value(Peak value lock), Battery indication
Data output	RS232
Measuring range	0-100HD
Measurement deviation	Within 20~90 HD, error≤±1HD
Display resolution	0.2 unit
Operating temperature	0~40 ?
Power requirements	3×1.55V (SR44) Button batteries or 4.5V AC/DC adapter
Battery life	300 Hours
Dimensions	173mm× 56mm×42mm
