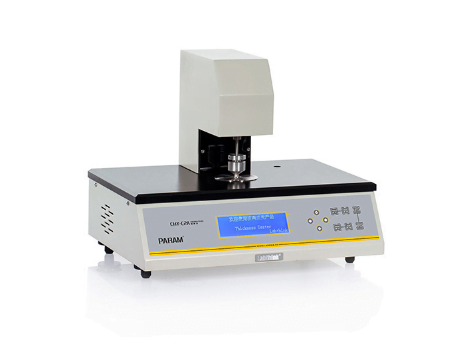

Thickness Tester CHY-C2A

Thickness Tester CHY-C2A

Alat Uji Ketebalan CHY-C2A dirancang berdasarkan metode kontak mekanis, yang secara efektif memastikan data uji standar dan akurat dan berlaku untuk uji ketebalan film plastik, lembaran, diafragma, kertas, foil, wafer silikon dan bahan lainnya dalam kisaran yang ditentukan.

Features

  • Contact area and test pressure are strictly designed according to standard requirements, while customization is also available
  • Automatic lifting presser foot facilitates to minimize system errors caused by human factors during the test
  • Manual or automatic operating mode for convenient test
  • Displays real-time data of maximum, minimum, average and standard deviation value for data analysis
  • Automatic statistics and printing functions are available which is convenient for the user to obtain the test results
  • Equipped with standard block for system calibration to ensure uniform and accurate test data
  • The instrument is controlled by micro-computer with LCD display, PVC operation panel and menu interface
  • Equipped with RS232 port which is convenient for data transfer
  • Supports LystemTM Lab Data Sharing System for uniform and systematic management of test results and test reports

Standards

This instrument conforms to multiple national and international standards:
ISO 4593, ISO 534, ISO 3034, ASTM D374, ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817, GB/T 6672, GB/T 451.3, GB/T 6547

Applications

This instrument is applicable to the determination of thickness of:

Basic Applications
  • Plastic Films and Sheets
  • Paper and Paper Board
  • Foils and Silicon Wafers
  • Metal Sheets
  • Textiles and Non-woven Fabrics
  • Solid Electrical Insulating Materials
Extended Applications
  • Extended Test Range of 5mm and 10mm
  • Curved Presser Foot

Technical Specifications

Specifications CHY-C2A Thickness Tester
Test Range 0~2 mm (standard)
0~6 mm, 12 mm (optional)
Resolution 0.1 μm
Test Speed 10 times/min (adjustable)
Test Pressure 17.5±1 KPa (film)
50±1 KPa (paper)
Contact Area 50 mm2 (film)
200 mm2 (paper)
Note: Select one presser foot for film or paper; Customization is available
Instrument Dimension 461 mm (L) x 334 mm (W) x 357 mm (H)
Power Supply 220VAC 50Hz / 120VAC 60Hz
Net Weight 32 kg

Configurations

Standard Configurations
Instrument and Standard Block
Optional Parts
Professional Software, Communication Cable, Presser Foot, Weight, and Micro-printer
